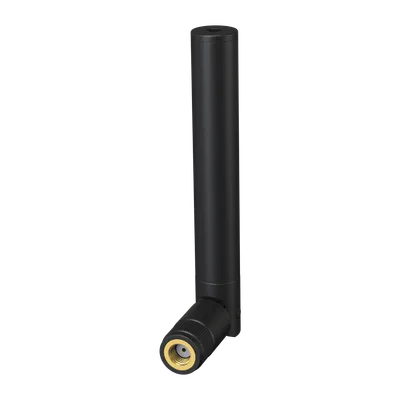

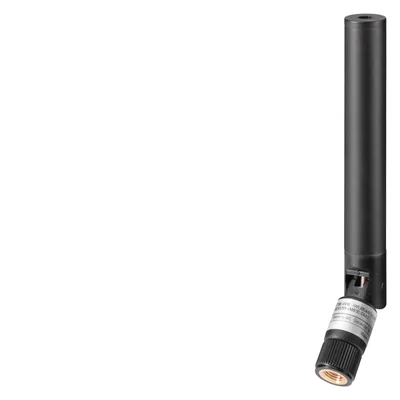

Siemens 6GK5795-4MB00-0AM0

Please observe national approvals: www.siemens.com/wireless-approvals omnidirectional Characteristic, Radially rotatable, with additional joint, incl. RSMA connector: 2/3 dBi, IP65 (-20-+60 °C), 2.4/5 GHz; Wi-Fi compliance and Observe national approvals; Direct mounting on SCALANCE W with RSMA connection system; Scope of delivery: 100x ANT795-4MB, 1x compact instructions as hard copy German/English.

SiemensMFR # 6GK5795-4MB00-0AM0SKU # YLSVKJT46NKHNH

product brand nameSCALANCE

type of wireless network / is supportedWLAN

for WLAN in 2.4 GHz frequency band2.4 ... 2.5 GHz

for WLAN in 5 GHz frequency band 15.15 ... 5.85 GHz

impedance50 Ω

polarizationLinear Vertical

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5795-4MB00-0AM0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

radio frequencies

type of wireless network / is supportedWLAN

for WLAN in 2.4 GHz frequency band2.4 ... 2.5 GHz

for WLAN in 5 GHz frequency band 15.15 ... 5.85 GHz

electrical data

of the WLAN antenna / in the 2.4 GHz frequency band2 dB

of the WLAN antenna / in the 5 GHz frequency band3 dB

impedance50 Ω

polarizationLinear Vertical

radiation characteristicomnidirectional

standing wave ratio (VSWR) / maximum2

in the 2.4 GHz frequency band / horizontal360°

in the 5 GHz frequency band / horizontal360°

number of electrical connections / of the antenna1

type of electrical connection / of the antennaRSMA Connector

design of plug-in connectionmale, variable 0-90°

angle of inclination / downward / maximum0°

mechanical data

of outer shellPolycarbonate

ambient conditions

during operation-20 ... +65 °C

during storage-30 ... +70 °C

protection class IPIP65

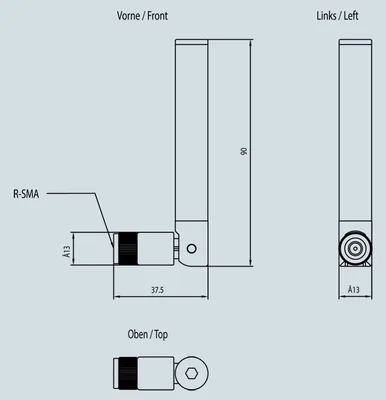

design, dimensions and weights

height114 mm

diameter12.9 mm

net weight21.5 g

mast mountingNo

wall mountingNo

roof mountingNo

directly on the deviceYes

product features, product functions, product components / general

product feature / silicon-freeNo

standards, specifications, approvals

RoHS conformityYes
