Siemens 6GK5786-2HC00-0AA0
Please observe national approvals: www.siemens.com/wireless-approvals W786-2IA RJ45, 2 radios, 6 internal antennas, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross 450 Mbps per radio, 1x RJ45 max. 1 Gbps, PoE, redundant 24 V DC, joint block, 110 - 230 V AC via PS791-2AC IP65, -40..+60 °C, plug slot, WPA2/802.11i/e, observe national approvals! CERT ID: EAPN-W2-RJ-I3, includes: MPCIE-R1-ABGN-U3, scope of supply: manuals on CD-ROM, German/English, 1x joint block, for operation outside of USA/Israel
product brand nameSCALANCE
with WLAN / maximum450 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
for power supply1
for redundant voltage supply1
C-PLUGYes
About This Product
Please observe national approvals: www.siemens.com/wireless-approvals W786-2IA RJ45, 2 radios, 6 internal antennas, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross 450 Mbps per radio, 1x RJ45 max. 1 Gbps, PoE, redundant 24 V DC, joint block, 110 - 230 V AC via PS791-2AC IP65, -40..+60 °C, plug slot, WPA2/802.11i/e, observe national approvals! CERT ID: EAPN-W2-RJ-I3, includes: MPCIE-R1-ABGN-U3, scope of supply: manuals on CD-ROM, German/English, 1x joint block, for operation outside of USA/Israel
Siemens 6GK5786-2HC00-0AA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSCALANCE
transfer rate
with WLAN / maximum450 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
interfaces
for network components or terminal equipment1
for power supply1
for redundant voltage supply1
for network components or terminal equipmentRJ45 socket
for power supply2-pole connector (24 V DC) or optionally available power supply adapter (4-pole 24 V DC or 3-pole 110 to 230 V AC)
memory
C-PLUGYes
KEY-PLUGYes
interfaces / wireless
number of radio cards / permanently installed2
transmission mode / for multiple input multiple output (MIMO)3x3
number of spatial streams3
number of internal antennas6
in the 2.4 GHz frequency band3 dB
in the 5 GHz frequency band4 dB
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V
from Power-over-Ethernet according to IEEE802.3at for type 250 V
— at AC100 ... 240 V
— at DC12 ... 24 V
at DC / at 24 V / typical0.63 A
at AC / at 230 V / typical0.07 A
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical0.22 A
at DC / at 24 V / typical15 W
at AC / at 230 V / typical15 W
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical15 W
from terminal block19.2 V
from terminal block28.8 V
ambient conditions
during operation-40 ... +60 °C
during storage-40 ... +85 °C
during transport-40 ... +70 °C
relative humidity / at 25 °C / without condensation / during operation / maximum100 %
ambient condition / for operationWhen using the 100 - 240 V AC power supply, an operating temperature of -40 °C to +60 °C is permissible
protection class IPIP65

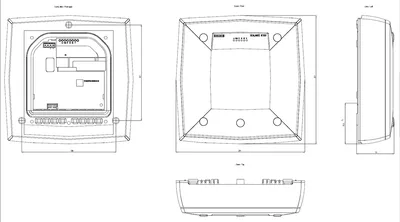

design, dimensions and weights
width / of the enclosure / without antenna251 mm
height / of the enclosure / without antenna251 mm
depth / of the enclosure / without antenna72 mm
net weight2.24 kg
fastening methodFor mast mounting, 35 mm DIN rail mounting and S7-300 rail mounting, an additional support plate is required
S7-300 rail mountingYes
S7-1500 rail mountingNo
35 mm DIN-rail mountingYes
wall mountingYes
radio frequencies
for WLAN in 2.4 GHz frequency band2.41 ... 2.48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band4.9 ... 5.8 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeYes
product function / client ModeYes
number of SSIDs16
iPCF Access PointYes; Only in combination with the 'KEY-PLUG W780 iFeatures'
iPCF clientYes; Only in combination with the 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures'
iPCF-MC Access PointYes; Only in combination with the 'KEY-PLUG W780 iFeatures'
iPCF-MC clientYes; Only in combination with 'KEY-PLUG W780 iFeatures' or 'KEY-PLUG W740 iFeatures'
number of iPCF-capable radio modules2
product function / iREFYes; In combination only with 'KEY-PLUG W780 iFeatures'
number of iREF-capable radio modules2
product function / iPRPYes; In combination with the 'KEY-PLUG W780 iFeatures' only
product functions / management, configuration, engineering
number of manageable IP addresses / in client8
CLIYes
web-based managementYes
MIB supportYes
TRAPs via emailYes
configuration with STEP 7Yes
configuration with STEP 7 in the TIA PortalYes
operation with IWLAN controllerNo
operation with Enterasys WLAN controllerNo
forced roaming on IP down with IWLANYes
forced roaming on link down with IWLANYes
WDSYes
Address Resolution Protocol (ARP)Yes
ICMPYes
TelnetYes
HTTPYes
HTTPSYes
TFTPYes
DCPYes
LLDPYes
I&M0 - device-specific informationYes
I&M1 - higher level designation/location designationYes
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisYes
link checkNo
connection monitoring IP-AliveNo
localization via AeroscoutYes
SysLogYes
SNMP v1Yes
SNMP v2Yes
SNMP v3Yes
product functions / VLAN
function VLAN with IWLANYes
product functions / DHCP
DHCP clientYes
DHCP serverYes
DHCP Option 82Yes
product functions / redundancy
STP/RSTPYes
MSTPYes
RSTPYes
product functions / security
ACL - MAC-basedYes
management security, ACL-IP basedYes
IEEE 802.1x (radius)Yes
NAT/NAPTNo
access protection according to IEEE802.11iYes
WPA/WPA2Yes
TKIP/AESYes
SSHYes
RADIUSYes
product functions / time
NTPYes
SNTPYes
SIMATIC time synchronization (SIMATIC Time)Yes
standards, specifications, approvals
for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1
EC Declaration of ConformityYes
CE markingYes
C-TickYes
E1 approvalYes
railway application in accordance with EN 50155No
railway application in accordance with EN 50121-4No
NEMA TS2No
IEC 61375No
IEC 61850-3No
NEMA4XYes
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afYes
Power-over-Ethernet according to IEEE802.3at for type 2Yes
IEEE 802.11aYes
IEEE 802.11bYes
IEEE 802.11eYes
IEEE 802.11gYes
IEEE 802.11hYes
IEEE 802.11iYes
IEEE 802.11nYes
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Yes
French marine classification society (BV)Yes
DNV GLYes
Korean Register of Shipping (KRS)Yes
Lloyds Register of Shipping (LRS)Yes
Nippon Kaiji Kyokai (NK)Yes
Polski Rejestr Statkow (PRS)Yes
Royal Institution of Naval Architects (RINA)Yes
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
from CSA and ULANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480
certificate of suitability / CCC / for hazardous zone according to GB standardYes; GB3836.1, GB3836.8
as markingEx nA IIC T4 Gc
accessories
accessories24 V DC screw terminal included in scope of delivery
