How can I get a price quote for Siemens 6GK5766-1GE00-3DA0?

You can request a fast quote for Siemens 6GK5766-1GE00-3DA0 from Yılsa Engineering. Reference part number YLSGUMLOGIJ9AMM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5766-1GE00-3DA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5766-1GE00-3DA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5766-1GE00-3DA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

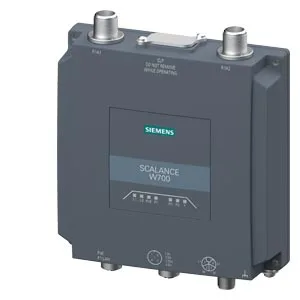

Siemens 6GK5766-1GE00-3DA0

Please observe national approvals: www.siemens.com/wireless-approvals 1 radio, 2.4/5 GHz, 2 N-Connect connections, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross) per radio, 1x 10/100/1000 Mbps M12 socket X-encoded with PoE, redundant 24 V DC, M12 socket L-encoded; IP65, -30...+60 °C, CLP slot, DI/DQ, A-encoded, observe national approvals! CERT ID: MSAX65-W1-M12-E2, FCC ID: LYHMSAX65V1 operation outside of USA/Israel scope of supply: sealing caps for connections

SiemensMFR # 6GK5766-1GE00-3DA0SKU # YLSGUMLOGIJ9AMM

product brand nameSCALANCE

with WLAN / maximum1201 Mbit/s

for Industrial Ethernet10, 100, 1000 Mbit/s

for power supply1

for redundant voltage supply1

for redundant voltage supplyM12 interface (4-pin, L-coded)

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5766-1GE00-3DA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

transfer rate

with WLAN / maximum1201 Mbit/s

for Industrial Ethernet10, 100, 1000 Mbit/s

interfaces

number of electrical/optical connections / for network components or terminal equipment / maximum / note1

number of electrical/optical connections / for gigabit Ethernet / maximum1

for network components or terminal equipment1

for power supply1

for redundant voltage supply1

for network components or terminal equipmentM12 interface (8-pole, X-coded), PoE

for redundant voltage supplyM12 interface (4-pin, L-coded)

memory

CLPYes

CLP iFeaturesYes

interfaces / wireless

number of radio cards / permanently installed2

transmission mode / for multiple input multiple output (MIMO)2x2

number of spatial streams2

number of electrical connections / for external antenna(s)2

type of electrical connection / for external antenna(s)N-Connect (socket)

product feature / external antenna can be mounted directly on deviceYes

signal inputs/outputs

number of digital inputs1

number of digital outputs1

type of electrical connection / at the digital inputs/outputsM12 interface (4-pin, A-coded)

input voltage / at digital input / at DC-30 ... +30 V

output voltage / at digital output / at DC / maximum24 V; 0,5 A

operational current / of the signaling contacts / at DC / at 30 V / maximum0.008 A

supply voltage, current consumption, power loss

type of voltage / of the supply voltageRedundant 24 V DC Power Supply, M12, L-coded

from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V

at DC / at 24 V0.55 A

at DC / at 24 V / sleep mode / maximum0.013 A

with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical0.27 A

at DC / at 24 V13.2 W

at DC / at 24 V / sleep mode / maximum0.3 W

with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical12.96 W

from M12 power Connector (L-coded) for redundant voltage supply24 V

supply voltage / 1 / rated value24 V

type of voltage / 1 / of the supply voltageDC

from M12 power Connector (L-coded) for redundant voltage supply24 V

supply voltage / 2 / rated value24 V

type of voltage / 2 / of the supply voltageDC

supply voltage / 3 / rated value48 V

type of voltage / 3 / of the supply voltageDC, PoE

ambient conditions

during operation-30 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

relative humidity / at 25 °C / without condensation / during operation / maximum90 %

protection class IPIP65

design, dimensions and weights

width150 mm

height179.5 mm

depth45 mm

width / of the enclosure / without antenna150 mm

height / of the enclosure / without antenna179.5 mm

depth / of the enclosure / without antenna45 mm

net weight1.1 kg

fastening methodwall mounting and assembly on VESA support 75 x 75 mm, mounting on DIN rail with separate mounting adapter.

S7-300 rail mountingYes

S7-1500 rail mountingYes

35 mm DIN-rail mountingYes

wall mountingYes

VESA mountingYes; 75 x 75mm

radio frequencies

for WLAN in 2.4 GHz frequency band2.41 ... 2.48 GHz; depending on the country approvals

for WLAN in 5 GHz frequency band4.9 ... 5.8 GHz; depending on the country approvals

product features, product functions, product components / general

product function / Access Point ModeNo

product function / client ModeYes

number of SSIDs1

iPCF Access PointNo; iPCF-2 is not compatible with iPCF. See documentation for function description.

iPCF-2 access pointNo; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' or 'SCALANCE CLP 2GB W700 Client iFeatures'

iPCF clientNo

iPCF-2 clientYes; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' or 'SCALANCE CLP 2GB W700 Client iFeatures'

iPCF-MC Access PointNo

product function / iPRPYes

product functions / management, configuration, engineering

number of manageable IP addresses / in client2

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

configuration with STEP 7 in the TIA PortalYes

WDSNo

Address Resolution Protocol (ARP)Yes

ICMPYes

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

DCPYes

LLDPYes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / diagnostics

PROFINET IO diagnosisYes

SysLogYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

product functions / VLAN

function VLAN with IWLANYes

number of VLANs / maximum24

product functions / DHCP

DHCP clientYes

product functions / redundancy

STP/RSTPYes

MSTPYes

RSTPYes

redundancy procedure MSTPYes

product functions / security

management security, ACL-IP basedNo

IEEE 802.1x (radius)Yes

NAT/NAPTYes

access protection according to IEEE802.11iYes

WPA/WPA2Yes

WPA3Yes

TKIP/AESYes

RADIUS clientYes

SSHYes

with SSL4096 bit

product functions / time

NTPYes

SNTPYes

SIMATIC time synchronization (SIMATIC Time)Yes

standards, specifications, approvals

EC Declaration of ConformityYes

CE markingYes

E1 approvalYes

Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afYes

IEEE 802.11aYes

IEEE 802.11bYes

IEEE 802.11eYes

IEEE 802.11gYes

IEEE 802.11hYes

IEEE 802.11iYes

IEEE 802.11nYes

IEEE 802.11acYes

IEEE 802.11axYes

IEEE 802.11rYes

MTBF24 a

reference temperature40 °C

standards, specifications, approvals / hazardous environments

standard / for hazardous zoneEN IEC 60079-0 : 2018, EN60079-7:2015 + A1 : 2018; II 3 G Ex ec IIC T4 Gc

from CSA and ULUL121201, CAN/CSA C22.2 No.213, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC T4, UL File E240480

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total394.89 kg

during manufacturing33.7 kg

during operation361 kg

after end of life0.19 kg
