How can I get a price quote for Siemens 6GK5534-2TR00-3AR3?

You can request a fast quote for Siemens 6GK5534-2TR00-3AR3 from Yılsa Engineering. Reference part number YLSP9C8NFFEY90Z. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5534-2TR00-3AR3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5534-2TR00-3AR3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5534-2TR00-3AR3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

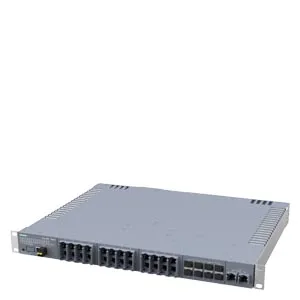

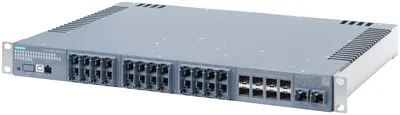

Siemens 6GK5534-2TR00-3AR3

SCALANCE XR526-8; managed layer 3 IE switch, 19" rack; 24x 100/1000 Mbps RJ45 port; 2x 1G/2.5G/5G/10 Gbps RJ45 port, 8x 1G/10G SFP+ port; LED diagnostics; error signaling contact; select/set button; PROFINET IO device; network management; integrated redundancy manager; office features (RSTP, VLAN, IGMP,..); CLP included in scope of supply; power supply 1x 230 V AC;

SiemensMFR # 6GK5534-2TR00-3AR3SKU # YLSP9C8NFFEY90Z

product brand nameSCALANCE

product type designationXR526-8

transfer rate10, 100, 1000 Mbit/s

transfer rate2.5, 5, 10 Gbit/s

with securing collar24

for SFP+8; 1000 Mbps and 10000 Mbps SFP usable

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5534-2TR00-3AR3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXR526-8

transfer rate

transfer rate10, 100, 1000 Mbit/s

transfer rate2.5, 5, 10 Gbit/s

interfaces / for communication / integrated

for network components or terminal equipment26; RJ45 with securing collar

with securing collar24

number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar2

for SFP+8; 1000 Mbps and 10000 Mbps SFP usable

interfaces / other

for operator console1

for signaling contact1

for power supply1

for operator consoleUSB (2.0 type B, USB-to-serial adapter)

for signaling contact2-pole terminal block

for power supplyIEC plug C14 AC supply or 2-pole terminal block for DC supply

CLPYes

at DC / rated value24 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyNo

type of voltage supply / redundant power supply unitNo

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value100 V ... 250 V DC

power loss [W] / 1 / rated value99 W

supply voltage / 1 / voltage range77 ... 300

consumed current / 1 / maximum0.8 A

type of electrical connection / 1 / for power supply2-pole terminal block

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltageF 4 A / 250 V

type of voltage / 2 / of the supply voltageAC (50 / 60 Hz)

supply voltage / 2 / rated value240 V; 100V ... 240V AC

power loss [W] / 2 / rated value99 W

supply voltage / 2 / voltage range85 ... 264

consumed current / 2 / maximum0.8 A

type of electrical connection / 2 / for power supplyIEC plug C14

fuse protection type / 2 / at input for supply voltageF 4 A / 250 V

ambient conditions

ambient temperature / in horizontal mounting position / during operation-25 ... +60 °C; Starting at -25 °C; The maximum ambient temperature during operation depends on the operating height and the plug-in transceivers, see also manual.

installation altitude / at height above sea level / maximum3000 m

at 25 °C / without condensation / during operation / maximum95 %

operating condition / fanless operationYes

protection class IPIP20

design, dimensions and weights

design19-inch rack

number of modular height units / relating to 19-inch cabinet1

width446 mm

height43.6 mm

depth374.8 mm

net weight8.2 kg

material / of the enclosuremetal

19-inch installationYes

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

number of automatically learnable MAC addresses16382

number of QoS queues / per port8

QoS according to IEEE 802.1QYes

Store & Forward switching methodYes

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

RMONYes

port mirroringYes

multiport mirroringYes

CoSYes

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

network load class / according to PROFINETIII

telegram length / for Ethernet / maximum9194 byte

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

FTPYes

SFTPYes

BOOTPYes

NETCONFNo

GMRPYes

DCPYes

LLDPYes

EtherNet/IPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

IGMP (snooping/querier)Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

SysLogYes

product functions / VLAN

VLAN - port basedYes

VLAN - protocol-basedNo

VLAN - IP-basedNo

VLAN dynamicYes

number of VLANs / maximum257

number of VLANs - dynamic / maximum257

number of VLANs / at ring redundancy (HRP; MRP; standby link)257

product function / VXLAN according to RFC 7348Yes

product functions / DHCP

DHCP serverYes

DHCP clientYes

DHCP Option 82Yes

DHCP Option 66Yes

DHCP Option 67Yes

product functions / routing

service / routing / noteIP routing integrated

static IP routingYes

static IP routing IPv6No

dynamic IP routingYes

dynamic IP routing IPv6No

RIPv2Yes

RIPnG for IPv6No

OSPFv2Yes

OSPFv3 for IPv6No

VRRPYes

VRRP for IPv6No

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode

of the PROFINET IO device / is supported / PROFINET system redundancyYes

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyYes

redundancy procedure STPYes

redundancy procedure RSTPYes

redundancy procedure RSTP+Yes

redundancy procedure MSTPYes

High-availability Seamless Redundancy (HSR)Yes

Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes

Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yes

passive listeningYes

STP/RSTPYes

STPYes

RSTPYes

MSTPYes

RSTP big network supportYes

LACPYes

system modification during operation

product function / configuration in RUN via CiR/H-CiRYes

product functions / security

IEEE 802.1x (radius)Yes

broadcast/multicast/unicast limiterYes

broadcast blockingYes

SSHYes

SSLYes

product functions / time

SICLOCK supportYes

NTP-clientYes

SNTP clientYes

IEEE 1588 v2 transparent forwardingYes

NTPYes

SNTPYes

not less than100 ns

typical50 ns

standards, specifications, approvals

CE markingYes

UKCA markingYes

EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1Yes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

product conformity / according to EMC-guideline2014/30/EU

for EMC interference emissionEN 61000-6-4, EN 50121-9

for immunity to EMCEN 61000-6-2, EN 50121-4

for safety / from CSA and ULUL 62368-1, UL 61010 - 2

standards, specifications, approvals / other

railway application in accordance with EN 50121-4Yes; use only in areas not accessible to the public

railway application in accordance with EN 50125-3Yes; Section 4.2: Class AX (up to 2000m); section 4.3: T1: Containers N.T.C and T.C. / Buildings N.C.C and C.C, T2: Containers N.T.C and T.C. / Buildings N.C.C and C.C, TX: Containers N.T.C and T.C. / Buildings N.C.C and C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used; section 4.4: T1: Containers C.C. / Buildings N.C.C and C.C., T2: Containers C.C. / Buildings N.C.C and C.C, T3: Containers C.C. / Buildings N.C.C and C.C; section 4.11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 62368-1, UL 61010-2-10; section 4.13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4.14: yes; section 4.15: yes, according to manual.

RoHS conformityYes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes

standards, specifications, approvals / marine classification

certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Chinese Classification Society (CCS)No

Det Norske Veritas (DNV)No

Korean Register of Shipping (KRS)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No

Royal Institution of Naval Architects (RINA)No

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total1122.93 kg

during manufacturing207 kg

during operation915 kg

after end of life0.93 kg

product functions / general

MTBF8.3 a

reference temperature / for MTBF determination40 °C

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing207 kg

global warming potential [CO2 eq] / during operation915 kg

global warming potential [CO2 eq] / after end of life0.93 kg

global warming potential [CO2 eq] / total1122.93 kg

Accessories 120

Genuine accessories that can be used with the Siemens 6GK5534-2TR00-3AR3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK5980-2BA00-0AA4	Aksesuar
6GK5993-1AT00-8AA0	Aksesuar
6GK5993-1AU00-8AA0	Aksesuar
6GK5993-1AV00-8AA0	Aksesuar
6GK5980-3CB00-0AA1	Aksesuar · Cables · network cable optical
6GK5980-3CB00-0AA2	Aksesuar · Cables · network cable optical
6GK5980-3CB00-0AA7	Aksesuar · Cables · network cable optical
6GK5992-1AL00-8FA0	Aksesuar
6GK5992-1AM00-8FA0	Aksesuar
6GK1901-1BB50-0AA0	Aksesuar
6GK5992-1AG00-8AA0	Aksesuar
6GK5992-1AL00-8AA0	Aksesuar
6GK5992-1AL00-8AC0	Aksesuar
6GK5992-1AL00-8RA0	Aksesuar
6GK5992-1AL00-8TA0	Aksesuar
6GK5992-1AM00-8AA0	Aksesuar
6GK5992-1AM00-8AC0	Aksesuar
6GK5992-1AM00-8RA0	Aksesuar
6GK5992-1AM00-8TA0	Aksesuar
6GK5992-1AM30-8AA0	Aksesuar
6GK5992-1AN00-8AA0	Aksesuar
6GK5992-1AP00-8AA0	Aksesuar
6GK5992-1AQ00-8AA0	Aksesuar
6GK1901-1BB10-2AA0	Aksesuar
6GK1901-1BB10-2AB0	Aksesuar
6GK1901-1BB10-2AE0	Aksesuar
6GK1901-1BB12-2AA0	Aksesuar
6GK1901-1BB12-2AB0	Aksesuar
6GK1901-1BB12-2AE0	Aksesuar
6XV1870-3QE30	Aksesuar · Cables · network cable electrical
6XV1870-3QE50	Aksesuar · Cables · network cable electrical
6XV1870-3QH10	Aksesuar · Cables · network cable electrical
6XV1870-3QH20	Aksesuar · Cables · network cable electrical
6XV1870-3QH30	Aksesuar · Cables · network cable electrical
6XV1870-3QH40	Aksesuar · Cables · network cable electrical
6XV1870-3QH60	Aksesuar · Cables · network cable electrical
6XV1870-3QN10	Aksesuar · Cables · network cable electrical
6XV1870-3QN15	Aksesuar · Cables · network cable electrical
6XV1870-3QN20	Aksesuar · Cables · network cable electrical
6XV1870-3QN25	Aksesuar · Cables · network cable electrical
6XV1870-3QN30	Aksesuar · Cables · network cable electrical
6XV1870-3QN35	Aksesuar · Cables · network cable electrical
6XV1870-3QN40	Aksesuar · Cables · network cable electrical
6XV1870-3QN45	Aksesuar · Cables · network cable electrical
6XV1870-3QN50	Aksesuar · Cables · network cable electrical
6XV1878-5BH20	Aksesuar · Cables · network cable electrical
6XV1878-5BH30	Aksesuar · Cables · network cable electrical
6XV1878-5BH50	Aksesuar · Cables · network cable electrical
6XV1878-5BN10	Aksesuar · Cables · network cable electrical
6XV1878-5BN15	Aksesuar · Cables · network cable electrical
6XV1878-5BN20	Aksesuar · Cables · network cable electrical
6XV1878-5BN25	Aksesuar · Cables · network cable electrical
6XV1878-5BN30	Aksesuar · Cables · network cable electrical
6XV1878-5TE50	Aksesuar · Cables · network cable electrical
6XV1878-5TH10	Aksesuar · Cables · network cable electrical
6XV1878-5TH15	Aksesuar · Cables · network cable electrical
6XV1878-5TH20	Aksesuar · Cables · network cable electrical
6XV1878-5TH30	Aksesuar · Cables · network cable electrical
6XV1878-5TH50	Aksesuar · Cables · network cable electrical
6XV1878-5TN10	Aksesuar · Cables · network cable electrical
6XV1878-5TN15	Aksesuar · Cables · network cable electrical
6XV1878-5TN30	Aksesuar · Cables · network cable electrical
6XV1878-5TN50	Aksesuar · Cables · network cable electrical
6GK1901-0AM00-0AA0	Aksesuar
6GK1901-0BE10-0AA0	Aksesuar · Cabling system
6GK1901-0RP10-0AA0	Aksesuar · Cabling system
6XV1870-4BE50	Aksesuar · Cables · network cable electrical
6XV1870-4BH10	Aksesuar · Cables · network cable electrical
6XV1870-4BH20	Aksesuar · Cables · network cable electrical
6XV1870-4BH30	Aksesuar · Cables · network cable electrical
6XV1870-4BH40	Aksesuar · Cables · network cable electrical
6XV1870-4BH60	Aksesuar · Cables · network cable electrical
6XV1870-4BN10	Aksesuar · Cables · network cable electrical
6XV1870-4BN15	Aksesuar · Cables · network cable electrical
6XV1870-4BN20	Aksesuar · Cables · network cable electrical
6XV1870-4BN25	Aksesuar · Cables · network cable electrical
6XV1870-4BN30	Aksesuar · Cables · network cable electrical
6XV1870-4GE50	Aksesuar · Cables · network cable electrical
6XV1870-4GH10	Aksesuar · Cables · network cable electrical
6XV1870-4GH20	Aksesuar · Cables · network cable electrical
6XV1870-4GH30	Aksesuar · Cables · network cable electrical
6XV1870-4GH40	Aksesuar · Cables · network cable electrical
6XV1870-4GH60	Aksesuar · Cables · network cable electrical
6XV1870-4GN10	Aksesuar · Cables · network cable electrical
6XV1870-4GN15	Aksesuar · Cables · network cable electrical
6XV1870-4GN20	Aksesuar · Cables · network cable electrical
6XV1870-4GN25	Aksesuar · Cables · network cable electrical
6XV1870-4GN30	Aksesuar · Cables · network cable electrical
6XV1870-4RE50	Aksesuar · Cables · network cable electrical
6XV1870-4RH10	Aksesuar · Cables · network cable electrical
6XV1870-4RH20	Aksesuar · Cables · network cable electrical
6XV1870-4RH30	Aksesuar · Cables · network cable electrical
6XV1870-4RH40	Aksesuar · Cables · network cable electrical
6XV1870-4RH60	Aksesuar · Cables · network cable electrical
6XV1870-4RN10	Aksesuar · Cables · network cable electrical
6XV1870-4RN15	Aksesuar · Cables · network cable electrical
6XV1870-4RN20	Aksesuar · Cables · network cable electrical
6XV1870-4RN25	Aksesuar · Cables · network cable electrical
6XV1870-4RN30	Aksesuar · Cables · network cable electrical
6XV1870-4UE50	Aksesuar · Cables · network cable electrical
6XV1870-4UH10	Aksesuar · Cables · network cable electrical
6XV1870-4UH20	Aksesuar · Cables · network cable electrical
6XV1870-4UH30	Aksesuar · Cables · network cable electrical
6XV1870-4UH40	Aksesuar · Cables · network cable electrical
6XV1870-4UH60	Aksesuar · Cables · network cable electrical
6XV1870-4UN10	Aksesuar · Cables · network cable electrical
6XV1870-4UN15	Aksesuar · Cables · network cable electrical
6XV1870-4UN20	Aksesuar · Cables · network cable electrical
6XV1870-4UN25	Aksesuar · Cables · network cable electrical
6XV1870-4UN30	Aksesuar · Cables · network cable electrical
6XV1873-5AH10	Aksesuar · Cables · network cable optical
6XV1873-5AH20	Aksesuar · Cables · network cable optical
6XV1873-5AH30	Aksesuar · Cables · network cable optical
6XV1873-5AH50	Aksesuar · Cables · network cable optical
6XV1873-5AN10	Aksesuar · Cables · network cable optical
6XV1873-5AN15	Aksesuar · Cables · network cable optical
6XV1873-5AN20	Aksesuar · Cables · network cable optical
6XV1873-5AN30	Aksesuar · Cables · network cable optical
6XV1873-5AN40	Aksesuar · Cables · network cable optical
6XV1873-5AN50	Aksesuar · Cables · network cable optical
