How can I get a price quote for Siemens 6GK5416-4GR00-2AM2?

You can request a fast quote for Siemens 6GK5416-4GR00-2AM2 from Yılsa Engineering. Reference part number CEY-8EF3B0385B80. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5416-4GR00-2AM2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5416-4GR00-2AM2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5416-4GR00-2AM2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

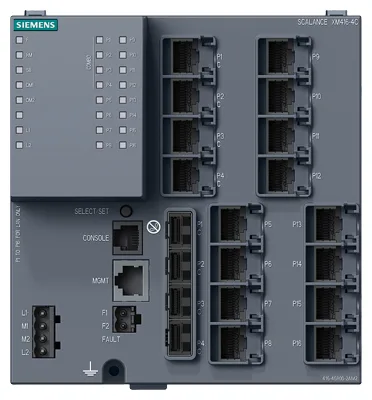

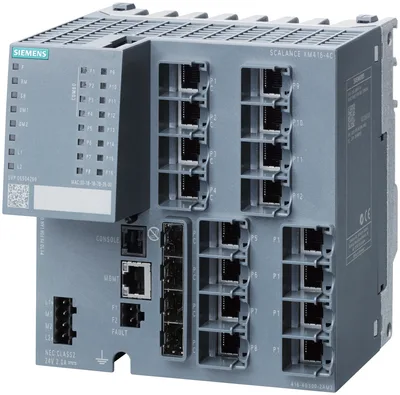

Siemens 6GK5416-4GR00-2AM2

See SIOS ID 109983816 modular IE switch; 16x 10/100/1000 Mbit/s RJ45; 4x 100/1000 Mbit/s SFP; contains 4 combo ports; in total 16 ports can be used; expandable to 24 ports electrical or optical; assembly: DIN rail/S7 mounting rail, PROFINET IO device; redundancy functions; office features (RSTP, VLAN, IGMP,..); C-PLUG in scope of supply; Layer 3 integrated;

SiemensMFR # 6GK5416-4GR00-2AM2SKU # CEY-8EF3B0385B80

product brand nameSCALANCE

product type designationXM416-4C

transfer rate10, 100, 1000 Mbit/s

with securing collar16

with securing collar8

with securing collar / with PoE8

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5416-4GR00-2AM2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXM416-4C

transfer rate

transfer rate10, 100, 1000 Mbit/s

interfaces / for communication / integrated

for network components or terminal equipment16; RJ45 with securing collar

with securing collar16

for SFP4; 100 Mbit/s or 1000 Mbit/s SFP plug-in transceiver

number of combo ports / with RJ45 interface for optical plug-in transceiver4; 100 Mbit/s or 1000 Mbit/s SFP plug-in transceiver

interfaces / for communication / plug-in

with securing collar8

with securing collar / with PoE8

for multimode12

for single mode (LD)12

for single mode (LH+)12

for single mode (ELH200)12

for multimode12

for single mode (LD)12

for single mode (LH)12

for single mode (LH+)12

for single mode (ELH)12

for SFP12

interfaces / other

for operator console1

for signaling contact1

for power supply1

for operator consoleRJ11

for management purposesRJ45

for signaling contact2-pole terminal block

number of extender expansion interfaces2

C-PLUGYes

product feature / hot-swappable interface modulesYes

at DC / rated value24 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes

per port / maximum30 W

total / maximum180 W

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value48 W

supply voltage / 1 / voltage range19.2 ... 28.8

consumed current / 1 / maximum2 A

type of electrical connection / 1 / for power supply4-pole terminal block

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltageF 15 A / 125 V

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

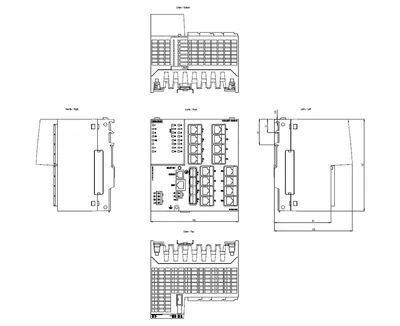

design, dimensions and weights

designmodular

width140 mm

height147 mm

depth125 mm

net weight1.25 kg

35 mm DIN-rail mountingYes

S7-300 rail mountingYes

S7-1500 rail mountingYes

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

RMONYes

port mirroringYes

multiport mirroringYes

CoSYes

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

telegram length / for Ethernet / maximum9216 byte

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

FTPYes

BOOTPYes

GMRPYes

DCPYes

LLDPYes

EtherNet/IPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

IGMP (snooping/querier)Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

SysLogYes

product functions / VLAN

VLAN - port basedYes

VLAN - protocol-basedYes

VLAN - IP-basedYes

VLAN dynamicYes

number of VLANs / maximum255

number of VLANs - dynamic / maximum255

product functions / DHCP

DHCP clientYes

DHCP Option 82Yes

DHCP Option 66Yes

DHCP Option 67Yes

product functions / routing

service / routing / noteIP routing integrated

static IP routingYes

static IP routing IPv6Yes

dynamic IP routingYes

dynamic IP routing IPv6Yes

RIPv2Yes

RIPnG for IPv6Yes

OSPFv2Yes

OSPFv3 for IPv6Yes

VRRPYes

VRRP for IPv6Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode

of the PROFINET IO device / is supported / H-Sync forwardingYes

of the PROFINET IO device / is supported / PROFINET system redundancyYes

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyYes

redundancy procedure STPYes

redundancy procedure RSTPYes

redundancy procedure RSTP+Yes

redundancy procedure MSTPYes

passive listeningYes

LACPYes

system modification during operation

product function / configuration in RUN via CiR/H-CiRYes

product functions / security

IEEE 802.1x (radius)Yes

broadcast/multicast/unicast limiterYes

broadcast blockingYes

SSHYes

SSLYes

product functions / time

SICLOCK supportYes

NTP-clientYes

SNTP clientYes

NTPYes

SNTPYes

standards, specifications, approvals

CE markingYes

UKCA markingYes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4 (Class A)

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03

standards, specifications, approvals / hazardous environments

ATEXYes

UKEXYes

IECExYes

ULhazloc approvalYes

CCC / for hazardous zone according to GB standardYes

FM registrationYes

standards, specifications, approvals / other

RoHS conformityYes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

standards, specifications, approvals / marine classification

certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Chinese Classification Society (CCS)No

Det Norske Veritas (DNV)No

Korean Register of Shipping (KRS)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No

Royal Institution of Naval Architects (RINA)Yes

product functions / general

MTBF22 a

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
