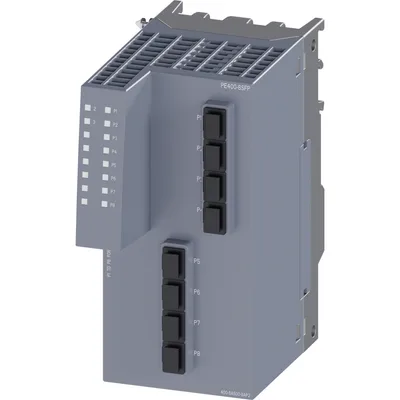

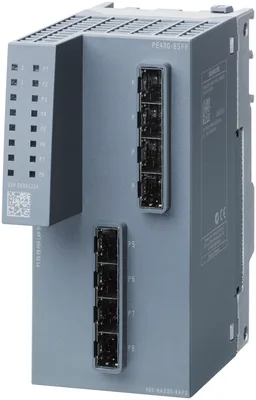

Siemens 6GK5400-8AS00-8AP2
See SIOS ID 109983816 SCALANCE XM-400 managed modular IE switch; extension by 8x 100/1000 Mbit/s SFP.
product brand nameSCALANCE
product type designationPE400-8SFP
transfer rate100 Mbit/s, 1000
for SFP8
for SFP8
number of extender expansion interfaces2
About This Product
See SIOS ID 109983816 SCALANCE XM-400 managed modular IE switch; extension by 8x 100/1000 Mbit/s SFP.
Siemens 6GK5400-8AS00-8AP2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationPE400-8SFP
transfer rate
transfer rate100 Mbit/s, 1000
interfaces / for communication / integrated
for SFP8
interfaces / for communication / plug-in
for SFP8
interfaces / other
number of extender expansion interfaces2
product feature / hot-swappable interface modulesYes
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
power loss [W] / 1 / rated value1.7 W
consumed current / 1 / maximum0.07 A
ambient conditions
during operation-40 ... +60 °C
during storage-40 ... +85 °C
during transport-40 ... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designSIMATIC S7-1500 device design
number of modular height units / relating to 19-inch cabinet1
width70 mm
height147 mm
depth125 mm
net weight0.6 kg
19-inch installationNo
35 mm DIN-rail mountingYes
wall mountingNo
S7-300 rail mountingYes
S7-1500 rail mountingYes
product functions / management, configuration, engineering
PROFINET conformity classB
standards, specifications, approvals
CE markingYes
UKCA markingYes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
ULhazloc approvalYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
RoHS conformityYes
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.
American Bureau of Shipping Europe Ltd. (ABS)No
French marine classification society (BV)No
Chinese Classification Society (CCS)No
Det Norske Veritas (DNV)No
Korean Register of Shipping (KRS)No
Lloyds Register of Shipping (LRS)No
Nippon Kaiji Kyokai (NK)No
Polski Rejestr Statkow (PRS)No
Royal Institution of Naval Architects (RINA)Yes
product functions / general
MTBF63 a
warranty period5 a
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
