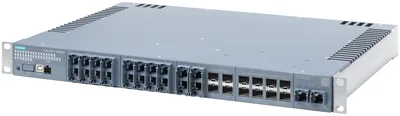

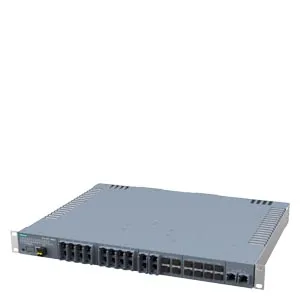

Siemens 6GK5334-3TS01-4AR3

SCALANCE XRM334; managed layer 2; IE switch, 19" rack; 20x, 100/1000 Mbps RJ45 port; 2x 1G/2.5G/5G/10 Gbps RJ45 port; 4x 100M/1G SFP port; 8x 1G/10G SFP+ port; LED diagnostics; error signaling contact; select/set button; PROFINET IO device; network management; integrated redundancy manager; office features (RSTP, VLAN, IGMP,..); CLP included in scope of supply; power supply 2x 230 V AC;

SiemensMFR # 6GK5334-3TS01-4AR3SKU # YLS750VXJF5E9U

product brand nameSCALANCE

product type designationXRM334

transfer rate10, 100, 1000 Mbit/s

transfer rate2.5, 5, 10 Gbit/s

with securing collar22

for SFP4; 100 Mbps and 1000 Mbps SFP usable

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5334-3TS01-4AR3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXRM334

transfer rate

transfer rate10, 100, 1000 Mbit/s

transfer rate2.5, 5, 10 Gbit/s

interfaces / for communication / integrated

for network components or terminal equipment22; RJ45

with securing collar22

number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar2

for SFP4; 100 Mbps and 1000 Mbps SFP usable

for SFP+8; 1000 Mbps and 10000 Mbps SFP usable

interfaces / other

for operator console1

for signaling contact1

for power supply2

for operator consoleUSB (2.0 type B, USB-to-serial adapter)

for signaling contact2-pole terminal block

for power supplyIEC plug C14 AC supply or 2-pole terminal block for DC supply

CLPYes

at AC / rated value24 V

at DC / rated value24 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes

type of voltage supply / redundant power supply unitYes

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value240 V; 100 V ... 240 V DC

power loss [W] / 1 / rated value99 W

supply voltage / 1 / voltage range77 ... 300

consumed current / 1 / maximum0.8 A

type of electrical connection / 1 / for power supply2 x 2-pole terminal block

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltageF 4 A / 250 V

type of voltage / 2 / of the supply voltageAC (50 / 60 Hz)

supply voltage / 2 / rated value240 V; 110V ... 240V AC

power loss [W] / 2 / rated value99 W

supply voltage / 2 / voltage range85 ... 264

consumed current / 2 / maximum0.8 A

type of electrical connection / 2 / for power supplyIEC plug C14

fuse protection type / 2 / at input for supply voltageF 4 A / 250 V

ambient conditions

ambient temperature / in horizontal mounting position / during operation-25 ... +60 °C; Starting at -25 °C; The maximum ambient temperature during operation depends on the operating height and the plug-in transceivers, see also manual.

installation altitude / at height above sea level / maximum3000 m

at 25 °C / without condensation / during operation / maximum95 %

operating condition / fanless operationYes

protection class IPIP20

design, dimensions and weights

design19-inch rack

number of modular height units / relating to 19-inch cabinet1

width446 mm

height43.6 mm

depth374.8 mm

net weight8.4 kg

material / of the enclosuremetal

19-inch installationYes

product features, product functions, product components / general

cascading in cases of star topologyany (depending only on signal propagation time)

number of automatically learnable MAC addresses16382

number of QoS queues / per port8

QoS according to IEEE 802.1QYes

product conformity / according to IEEE 802.1Qbu and IEEE 802.3br (Frame Preemption)Yes

Store & Forward switching methodYes

product license

product license / Upgrade licenseYes; layer 3 license

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

RMONNo

SMTP serverNo

port mirroringYes

multiport mirroringYes

Encapsulated Remote Traffic Mirroring (ERTM)Yes

CoSYes

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

network load class / according to PROFINETII

telegram length / for Ethernet / maximum9194 byte

TelnetNo

HTTPYes

HTTPSYes

TFTPYes

FTPYes

SFTPYes

BOOTPNo

NETCONFYes

GMRPYes

DCPYes

LLDPYes

EtherNet/IPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

IGMP (snooping/querier)Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

SysLogYes

product functions / VLAN

VLAN - port basedYes

VLAN - protocol-basedNo

VLAN - IP-basedNo

VLAN dynamicYes

number of VLANs / maximum2048

number of VLANs - dynamic / maximum2048

product functions / DHCP

DHCP serverNo

DHCP clientYes

DHCP Option 82No

DHCP Option 66Yes

DHCP Option 67Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)No

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol Interconnection (MRP-I)No

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerNo

high speed redundancy protocol (HRP) with standby redundancyNo

redundancy procedure STPYes

redundancy procedure RSTPYes

redundancy procedure RSTP+No

redundancy procedure MSTPYes

passive listeningYes

eRSTPYes

LACPYes

system modification during operation

product function / configuration in RUN via CiR/H-CiRNo

product functions / security

product conformity / according to IEEE 802.1X-port based Network Access ControlNo

RADIUSYes

SSHYes

SSLYes

product functions / time

SICLOCK supportYes

NTP-clientYes

IEEE 1588 v2 transparent forwardingYes

NTPYes

SNTPYes

IEEE 1588 profile defaultYes

not less than100 ns

typical50 ns

standards, specifications, approvals

CE markingYes

UKCA markingYes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

product conformity / according to EMC-guideline2014/30/EU

for EMC interference emissionEN 61000-6-4

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL 62368-1, UL 61010 - 2

standards, specifications, approvals / other

railway application in accordance with EN 50121-4Yes; use only in areas not accessible to the public

railway application in accordance with EN 50125-3Yes; Section 4.2: Class AX (up to 2000m); section 4.3: T1: Containers N.T.C and T.C. / Buildings N.C.C and C.C, T2: Containers N.T.C and T.C. / Buildings N.C.C and C.C, TX: Containers N.T.C and T.C. / Buildings N.C.C and C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used; section 4.4: T1: Containers C.C. / Buildings N.C.C and C.C., T2: Containers C.C. / Buildings N.C.C and C.C, T3: Containers C.C. / Buildings N.C.C and C.C; section 4.11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 62368-1, UL 61010-2-10; section 4.13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4.14: yes; section 4.15: yes, according to manual.

RoHS conformityYes

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes

standards, specifications, approvals / marine classification

certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Chinese Classification Society (CCS)No

Det Norske Veritas (DNV)No

Korean Register of Shipping (KRS)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No

Royal Institution of Naval Architects (RINA)No

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total1125.275 kg

during manufacturing207 kg

during operation915 kg

after end of life0.925 kg

product functions / general

MTBF10.6 a

reference temperature / for MTBF determination40 °C

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing207 kg

global warming potential [CO2 eq] / during sales2.35 kg

global warming potential [CO2 eq] / during operation915 kg

global warming potential [CO2 eq] / after end of life0.925 kg

global warming potential [CO2 eq] / total1125.275 kg
