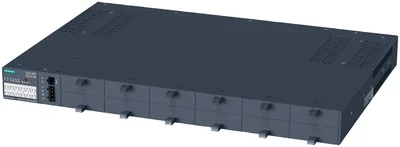

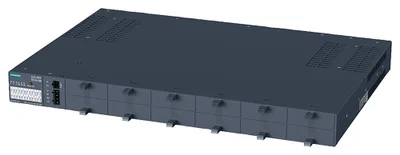

Siemens 6GK5324-0GG10-1AR2
SCALANCE XR324-12M; managed IE switch, 19" rack; 12x 100/1000 Mbit/s 2-port media modules, electrical or optical; LED diagnostics; error signaling Contact; Select/set pushbutton, PROFINET IO device, network management, Integrated redundancy manager, office features (RSTP, VLAN, IGMP,..) C-PLUG in scope of supply; Power supply 24 V DC; Ports in the front.
product brand nameSCALANCE
product type designationXR324-12M
transfer rate10, 100, 1000 Mbit/s
for multimode24
for multimode24
for operator console1
About This Product
SCALANCE XR324-12M; managed IE switch, 19" rack; 12x 100/1000 Mbit/s 2-port media modules, electrical or optical; LED diagnostics; error signaling Contact; Select/set pushbutton, PROFINET IO device, network management, Integrated redundancy manager, office features (RSTP, VLAN, IGMP,..) C-PLUG in scope of supply; Power supply 24 V DC; Ports in the front.
Siemens 6GK5324-0GG10-1AR2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXR324-12M
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for multimode24
for multimode24
interfaces / other
for operator console1
for signaling contact1
for media module12
for power supply1
for operator consoleRJ11
for signaling contact2-pole terminal block
for power supply4-pole terminal block
C-PLUGYes
at DC / rated value24 V
at DC / maximum0.1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
type of voltage supply / redundant power supply unitNo
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value44 W
supply voltage / 1 / voltage range19.2 ... 28.8
consumed current / 1 / maximum1.8 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputYes
fuse protection type / 1 / at input for supply voltageF 5 A / 125 V
ambient conditions
during operation-40 ... +70 °C
during storage-40 ... +85 °C
during transport-40 ... +85 °C
noteReduced operating temperature through the use of media modules (-40 °C to +70 °C) or SFP plug-in transceivers (-40 °C to +60 °C). If the device is installed in the vertical position, the maximum operating temperature is reduced to +50 °C.
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

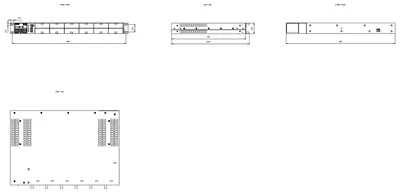

design, dimensions and weights
design19-inch rack
number of modular height units / relating to 19-inch cabinet1
width483 mm
height44 mm
depth305 mm
net weight5.5 kg
product feature / conformal coatingNo
fastening methodWhen used in shipbuilding, the device must be secured in the 19" rack at four points
19-inch installationYes
35 mm DIN-rail mountingNo
wall mountingNo
S7-300 rail mountingNo
S7-1500 rail mountingNo
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s100
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIYes
web-based managementYes
MIB supportYes
TRAPs via emailYes
configuration with STEP 7Yes
RMONYes
port mirroringYes
multiport mirroringYes
CoSYes
PROFINET IO diagnosisYes
switch-managedYes
PROFINET conformity classB
TelnetYes
HTTPYes
HTTPSYes
TFTPYes
FTPYes
BOOTPYes
GMRPYes
DCPYes
LLDPYes
SNMP v1Yes
SNMP v2Yes
SNMP v3Yes
IGMP (snooping/querier)Yes
I&M0 - device-specific informationYes
I&M1 - higher level designation/location designationYes
product functions / diagnostics
port diagnosticsYes
statistics Packet SizeYes
statistics packet typeYes
error statisticsYes
SysLogYes
product functions / VLAN
VLAN - port basedYes
VLAN - protocol-basedNo
VLAN - IP-basedNo
VLAN dynamicYes
number of VLANs / maximum255
number of VLANs - dynamic / maximum255
product functions / DHCP
DHCP clientYes
DHCP Option 82Yes
DHCP Option 66Yes
DHCP Option 67Yes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Yes
media redundancy protocol (MRP) with redundancy managerYes
ring redundancyYes
high speed redundancy protocol (HRP) with redundancy managerYes
high speed redundancy protocol (HRP) with standby redundancyYes
redundancy procedure STPYes
redundancy procedure RSTPYes
redundancy procedure MSTPYes
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
passive listeningYes
STP/RSTPYes
STPYes
RSTPYes
MSTPYes
RSTP big network supportYes
LACPYes
product functions / security
IEEE 802.1x (radius)Yes
broadcast/multicast/unicast limiterYes
broadcast blockingYes
SSHYes
product functions / time
SICLOCK supportYes
NTPYes
SNTPYes
IEEE 1588 profile defaultYes
standards, specifications, approvals
CE markingYes
UKCA markingYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4:2007 (Class A)
for immunity to EMCEN 61000-6-2:2005
for safety / from CSA and ULUL 60950-1, CSA C22.2 No. 60950-1-03
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
ULhazloc approvalYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
railway application in accordance with EN 50155No
RoHS conformityYes
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.
Det Norske Veritas (DNV)No
Royal Institution of Naval Architects (RINA)Yes
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total1353.37 kg
during manufacturing132 kg
during operation1220.78 kg
after end of life0.59 kg
product functions / general
MTBF25 a
warranty period5 a
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing132 kg
global warming potential [CO2 eq] / during operation1220.78 kg
global warming potential [CO2 eq] / after end of life0.59 kg
global warming potential [CO2 eq] / total1353.37 kg
