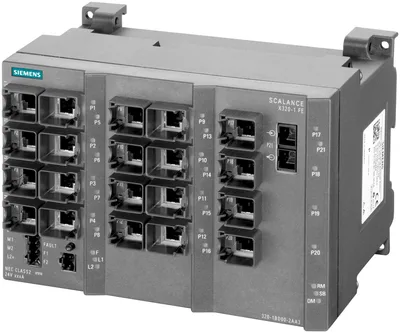

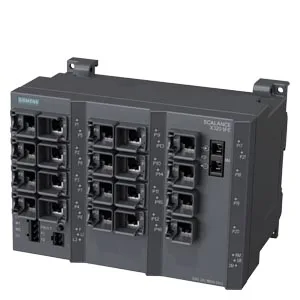

Siemens 6GK5320-1BD00-2AA3
SCALANCE X320-1FE managed IE switch, 20x 10/100 Mbit/s RJ45 ports, 1x 100 Mbit/s SC Port multimode LED-diagnostics, error-signaling contact with Select/set pushbutton, PROFINET IO Device, network management, integrated redundancy manager, Office features (RSTP, VLAN, IGMP,..) C-plug in scope of delivery .
product brand nameSCALANCE
product type designationX320-1FE
transfer rate10, 100 Mbit/s
with securing collar20
for multimode1
for signaling contact1
About This Product
SCALANCE X320-1FE managed IE switch, 20x 10/100 Mbit/s RJ45 ports, 1x 100 Mbit/s SC Port multimode LED-diagnostics, error-signaling contact with Select/set pushbutton, PROFINET IO Device, network management, integrated redundancy manager, Office features (RSTP, VLAN, IGMP,..) C-plug in scope of delivery .
Siemens 6GK5320-1BD00-2AA3
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationX320-1FE
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment20
with securing collar20
for multimode1
transmission method / of the optical interface100BaseFX
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
C-PLUGYes
at DC / rated value24 V
at DC / maximum0.1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
type of voltage supply / redundant power supply unitNo
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value9.6 W
supply voltage / 1 / voltage range18 ... 32
consumed current / 1 / maximum0.4 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputYes
fuse protection type / 1 / at input for supply voltageF 3 A / 32 V
ambient conditions
during operation-40 ... +60 °C
during storage-40 ... +70 °C
during transport-40 ... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP30
design, dimensions and weights
designcompact
width180 mm
height125 mm
depth123 mm
net weight1.65 kg
fastening methodWhen used in shipbuilding, installation on a 35 mm standard mounting rail is not permitted.
19-inch installationNo
35 mm DIN-rail mountingYes
wall mountingYes
S7-300 rail mountingYes
S7-1500 rail mountingNo
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s100
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIYes
web-based managementYes
MIB supportYes
TRAPs via emailYes
configuration with STEP 7Yes
RMONYes
port mirroringYes
multiport mirroringYes
CoSYes
PROFINET IO diagnosisYes
switch-managedYes
PROFINET conformity classB
TelnetYes
HTTPYes
HTTPSYes
TFTPYes
FTPYes
BOOTPYes
GMRPYes
DCPYes
LLDPYes
SNMP v1Yes
SNMP v2Yes
SNMP v3Yes
IGMP (snooping/querier)Yes
I&M0 - device-specific informationYes
I&M1 - higher level designation/location designationYes
product functions / diagnostics
port diagnosticsYes
statistics Packet SizeYes
statistics packet typeYes
error statisticsYes
SysLogYes
product functions / VLAN
VLAN - port basedYes
VLAN - protocol-basedNo
VLAN - IP-basedNo
VLAN dynamicYes
number of VLANs / maximum255
number of VLANs - dynamic / maximum255
product functions / DHCP
DHCP clientYes
DHCP Option 82Yes
DHCP Option 66Yes
DHCP Option 67Yes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Yes
media redundancy protocol (MRP) with redundancy managerYes
ring redundancyYes
high speed redundancy protocol (HRP) with redundancy managerYes
high speed redundancy protocol (HRP) with standby redundancyYes
redundancy procedure STPYes
redundancy procedure RSTPYes
redundancy procedure MSTPYes
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
passive listeningYes
STP/RSTPYes
STPYes
RSTPYes
MSTPYes
RSTP big network supportYes
LACPYes
product functions / security
IEEE 802.1x (radius)Yes
broadcast/multicast/unicast limiterYes
broadcast blockingYes
SSHYes
product functions / time
SICLOCK supportYes
NTPYes
SNTPYes
IEEE 1588 profile defaultNo
standards, specifications, approvals
CE markingYes
UKCA markingYes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4:2007 (Class A)
for immunity to EMCEN 61000-6-2:2005
for safety / from CSA and ULUL 60950-1, CSA C22.2 No. 60950-1
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
ULhazloc approvalYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
railway application in accordance with EN 50155No
RoHS conformityYes
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.
Det Norske Veritas (DNV)No
Royal Institution of Naval Architects (RINA)Yes
product functions / general
MTBF25 a
warranty period5 a
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
