Siemens 6GK5208-0HA10-2AA6

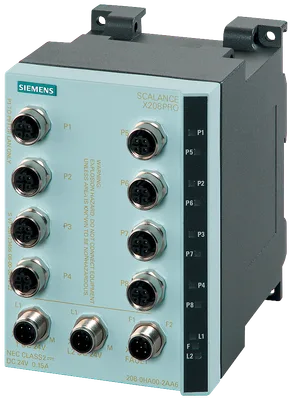

SCALANCE X208PRO, managed IE switch, 8x 10/100 Mbit/s M12 ports, IP65/67, LED diagnostics, error signaling contact, Redundant power supply, PROFINET IO device, network management, can be operated in redundant ring, dust caps, including electronic manual on CD-ROM, C-plug optional.

SiemensMFR # 6GK5208-0HA10-2AA6SKU # CEY-8EF3B02CE26F

product brand nameSCALANCE

product type designationX208PRO

transfer rate10, 100 Mbit/s

for signaling contact1

for power supply1

for signaling contact5-pole M12 port (B-coded)

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5208-0HA10-2AA6

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationX208PRO

transfer rate

transfer rate10, 100 Mbit/s

interfaces / for communication / integrated

for network components or terminal equipment8

number of 10/100 Mbit/s M12-ports (D-coded)8

interfaces / other

for signaling contact1

for power supply1

for signaling contact5-pole M12 port (B-coded)

for power supply4-pole M12 connection (A-coded)

C-PLUGYes

at DC / rated value24 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value4.4 W

supply voltage / 1 / voltage range18 ... 32

consumed current / 1 / maximum0.185 A

type of electrical connection / 1 / for power supply4-pole M12 connection (A-coded)

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltage0,6 A / 60 V

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP65/67

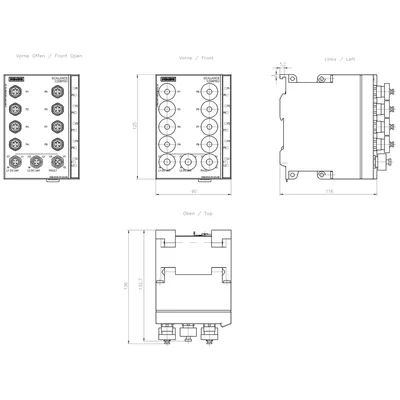

design, dimensions and weights

designcompact

width90 mm

height125 mm

depth124 mm

net weight1 kg

35 mm DIN-rail mountingYes

wall mountingYes

S7-300 rail mountingYes

S7-1500 rail mountingNo

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s100

cascading in cases of star topologyany (depending only on signal propagation time)

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

port mirroringYes

multiport mirroringNo

with IRT / PROFINET IO switchNo

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

FTPYes

BOOTPNo

DCPYes

LLDPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

product functions / DHCP

DHCP clientYes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyNo

passive listeningYes

product functions / security

SSHYes

product functions / time

SICLOCK supportYes

NTPNo

SNTPYes

standards, specifications, approvals

CE markingYes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4 (Class A)

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1

standards, specifications, approvals / hazardous environments

ATEXYes

UKEXYes

IECExYes

ULhazloc approvalYes

CCC / for hazardous zone according to GB standardYes

FM registrationYes

standards, specifications, approvals / other

railway application in accordance with EN 50155No

RoHS conformityYes

standards, specifications, approvals / marine classification

French marine classification society (BV)Yes

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total167.64 kg

during manufacturing29.12 kg

during operation138.29 kg

after end of life0.23 kg

product functions / general

MTBF83 a

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing29.12 kg

global warming potential [CO2 eq] / during operation138.29 kg

global warming potential [CO2 eq] / after end of life0.23 kg

global warming potential [CO2 eq] / total167.64 kg
