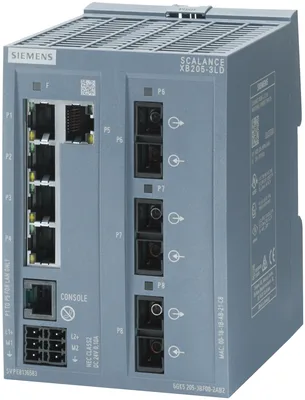

Siemens 6GK5205-3BF00-2AB2

SCALANCE XB205-3LD managed layer 2 IE switch 5x 10/100 Mbit/s RJ45 ports 3x SM FO SC-port 1x console port, diagnostics LED redundant power supply; IEC 62443-4-2 certified; temperature range 0 °C to +60 °C; DIN-rail mounting; default PROFINET.

SiemensMFR # 6GK5205-3BF00-2AB2SKU # CEY-8EF3B02CE25E

product brand nameSCALANCE

product type designationXB205-3LD

transfer rate10, 100 Mbit/s

for single mode (LD)3

for operator console1

for power supply1

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5205-3BF00-2AB2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXB205-3LD

transfer rate

transfer rate10, 100 Mbit/s

interfaces / for communication / integrated

for network components or terminal equipment5; RJ45

for single mode (LD)3

transmission method / of the optical interface100BaseLX LD

interfaces / other

for operator console1

for power supply1

for operator consoleRJ11

for management purposesRJ45

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value7 W

supply voltage / 1 / voltage range19.2 ... 28.8

consumed current / 1 / maximum0.29 A

type of electrical connection / 1 / for power supply6-pole terminal block

product component / 1 / fusing at power supply inputYes

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

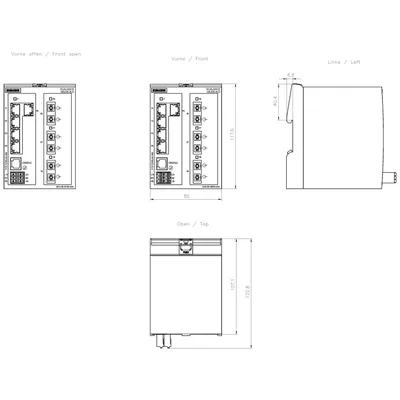

design, dimensions and weights

designcompact

width80 mm

height117 mm

depth109 mm

net weight0.35 kg

material / of the enclosurePolycarbonate (PC-GF10)

35 mm DIN-rail mountingYes

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

RMONYes

port mirroringYes

multiport mirroringYes

CoSYes

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

network load class / according to PROFINETIII

telegram length / for Ethernet / maximum1632 byte

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

SFTPYes

BOOTPYes

DCPYes

LLDPYes

EtherNet/IPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

IGMP (snooping/querier)Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

SysLogYes

product functions / VLAN

VLAN - port basedYes

number of VLANs / maximum257

number of VLANs - dynamic / maximum257

number of VLANs / at ring redundancy (HRP; MRP; standby link)257

product functions / DHCP

DHCP clientYes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode

of the PROFINET IO device / is supported / PROFINET system redundancyNo

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyYes

redundancy procedure STPYes

redundancy procedure RSTPYes

redundancy procedure RSTP+Yes

Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes

passive listeningYes

product functions / security

IEEE 802.1x (radius)Yes

RADIUS clientYes

broadcast/multicast/unicast limiterYes

broadcast blockingYes

SSHYes

SSLYes

product functions / time

SICLOCK supportYes

NTP-clientYes

SNTP clientYes

SNTPYes

standards, specifications, approvals

CE markingYes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4 (Class A)

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1

standards, specifications, approvals / hazardous environments

ATEXYes

UKEXYes

IECExYes

ULhazloc approvalYes

CCC / for hazardous zone according to GB standardYes

FM registrationYes

standards, specifications, approvals / other

RoHS conformityYes

IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total260.76 kg

during manufacturing40.94 kg

during operation219.31 kg

after end of life0.51 kg

product functions / general

MTBF50 a

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing40.94 kg

global warming potential [CO2 eq] / during operation219.31 kg

global warming potential [CO2 eq] / after end of life0.51 kg

global warming potential [CO2 eq] / total260.76 kg
