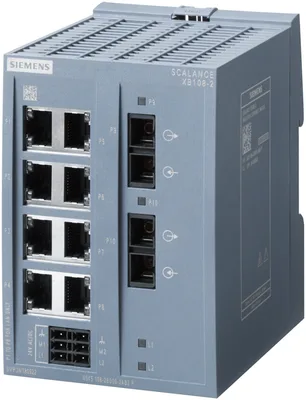

Siemens 6GK5108-2BD00-2AB2
SCALANCE XB108-2 unmanaged IE switch, 8x 10/100 Mbit/s Ports, 2x 100 Mbit/s multimode SC, for setting up small star and line topologies; LED diagnostics,IP20, redundant power supply, 24 V AC/DC Manual available as a download .
product brand nameSCALANCE
product type designationXB108-2
transfer rate10, 100 Mbit/s
for multimode2
for power supply1
supply voltage / 1 / rated value24 V
About This Product
SCALANCE XB108-2 unmanaged IE switch, 8x 10/100 Mbit/s Ports, 2x 100 Mbit/s multimode SC, for setting up small star and line topologies; LED diagnostics,IP20, redundant power supply, 24 V AC/DC Manual available as a download .
Siemens 6GK5108-2BD00-2AB2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXB108-2
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment8; RJ45
for multimode2
transmission method / of the optical interface100BaseFX
interfaces / other
for power supply1
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value7.2 W
supply voltage / 1 / voltage range19.2 ... 28.8
consumed current / 1 / maximum0.3 A
product component / 1 / fusing at power supply inputYes
fuse protection type / 1 / at input for supply voltage0,6 A / 60 V
type of voltage / 2 / of the supply voltageAC
supply voltage / 2 / voltage range19.2 ... 28.8
ambient conditions
during operation0 ... 60 °C
during storage-40 ... +80 °C
during transport-40 ... +80 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

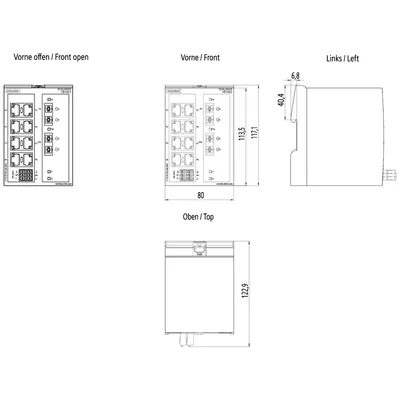

design, dimensions and weights
designcompact
width80 mm
height117 mm
depth109 mm
net weight0.34 kg
35 mm DIN-rail mountingYes
wall mountingNo
S7-300 rail mountingNo
S7-1500 rail mountingNo
product functions / management, configuration, engineering
multiport mirroringNo
CoSYes
switch-managedNo
PROFINET conformity classA
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
standards, specifications, approvals
CE markingYes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4 (Class B)
for immunity to EMC61000-6-2
for safety / from CSA and ULUL 60950-1, CSA C22.2 No. 60950-1
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
ULhazloc approvalYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
RoHS conformityYes
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total266.77 kg
during manufacturing40.94 kg
during operation225.32 kg
after end of life0.51 kg
product functions / general
MTBF71 a
warranty period5 a
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing40.94 kg
global warming potential [CO2 eq] / during operation225.32 kg
global warming potential [CO2 eq] / after end of life0.51 kg
global warming potential [CO2 eq] / total266.77 kg
