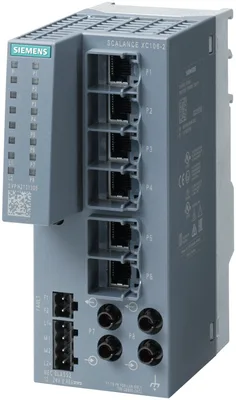

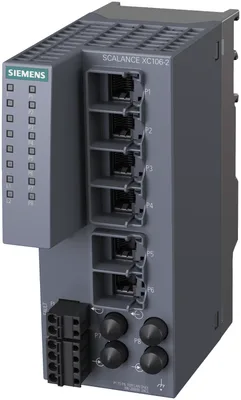

Siemens 6GK5106-2BB00-2AC2
SCALANCE XC106-2, Unmanaged IE switch, 6x 10/100 Mbit/s RJ45 ports, 2x 100 Mbit/s Multimode BFOC, LED diagnostics, error-signaling contact with set pushbutton, redundant power supply Manual available as a download .
product brand nameSCALANCE
product type designationXC106-2
transfer rate10, 100 Mbit/s
for multimode2
for signaling contact1
for power supply1
About This Product
SCALANCE XC106-2, Unmanaged IE switch, 6x 10/100 Mbit/s RJ45 ports, 2x 100 Mbit/s Multimode BFOC, LED diagnostics, error-signaling contact with set pushbutton, redundant power supply Manual available as a download .
Siemens 6GK5106-2BB00-2AC2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXC106-2
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment6; RJ45
for multimode2
transmission method / of the optical interface100BaseFX
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
at DC / rated value24 V
at DC / maximum0.1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value4.8 W
supply voltage / 1 / voltage range9.6 ... 31.2
consumed current / 1 / maximum0.4 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputYes
fuse protection type / 1 / at input for supply voltage2,5 A / 125 V
ambient conditions
during operation-40 ... +70 °C
during storage-40 ... +85 °C
during transport-40 ... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
width60 mm
height147 mm
depth125 mm
net weight0.5 kg
material / of the enclosurePolycarbonate (PC-GF10)
35 mm DIN-rail mountingYes
wall mountingYes
S7-300 rail mountingYes
S7-1500 rail mountingYes
product features, product functions, product components / general
number of automatically learnable MAC addresses2048
product functions / management, configuration, engineering
multiport mirroringNo
CoSYes
switch-managedNo
PROFINET conformity classA
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No
standards, specifications, approvals
CE markingYes
EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1Yes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4 (Class A)
for safety / from CSA and ULUL 60950-1, CSA C22.2 No. 60950-1
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
ULhazloc approvalYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
RoHS conformityYes
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.
American Bureau of Shipping Europe Ltd. (ABS)No
French marine classification society (BV)No
Chinese Classification Society (CCS)No
Det Norske Veritas (DNV)No
Korean Register of Shipping (KRS)No
Lloyds Register of Shipping (LRS)No
Nippon Kaiji Kyokai (NK)No
Polski Rejestr Statkow (PRS)No
Royal Institution of Naval Architects (RINA)Yes
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total220.3 kg
during manufacturing32.08 kg
during operation187.75 kg
after end of life0.48 kg
product functions / general
laser protection classLED Class 1
warranty period5 a
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing32.08 kg
global warming potential [CO2 eq] / during operation187.75 kg
global warming potential [CO2 eq] / after end of life0.48 kg
global warming potential [CO2 eq] / total220.3 kg
