How can I get a price quote for Siemens 6GK1562-4AA00?

You can request a fast quote for Siemens 6GK1562-4AA00 from Yılsa Engineering. Reference part number CEY-8EF3B030020A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK1562-4AA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK1562-4AA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK1562-4AA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

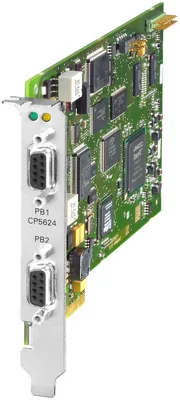

Siemens 6GK1562-4AA00

communications processor CP 5624 PCI Express X1 (3. 3 V) with master and device connection to PB; including configuration tool and DP Base software: DP-RAM interface for DP master including PG and FDL protocol, single license for 1 installation, runtime software, class A; operating system support, see SIMATIC NET software.

SiemensMFR # 6GK1562-4AA00SKU # CEY-8EF3B030020A

product brand nameSIMATIC NET

of the backplane busPCI Express x1

type of voltage / of the supply voltageDC

1 / from backplane bus3.3 V

2 / from backplane bus12 V

at 3.3 V9 %

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK1562-4AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

at the 1st interface / according to PROFIBUS9.6 kbit/s ... 12 Mbit/s

at the 2nd interface / according to PROFIBUS9.6 kbit/s ... 12 Mbit/s

interfaces

at the 1st interface / according to PROFIBUS1

at the 2nd interface / according to PROFIBUS1

at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS 485)

at the 2nd interface / according to PROFIBUS9-pin Sub-D socket (RS 485)

of the backplane busPCI Express x1

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

1 / from backplane bus3.3 V

2 / from backplane bus12 V

at 3.3 V9 %

at 12 V8 %

1 / from backplane bus / at DC / maximum0.75 A

2 / from backplane bus / at DC / maximum0.3 A

power loss [W]6.1 W

ambient conditions

during operation5 ... 60 °C

during storage-20 ... +60 °C

during transport-20 ... +60 °C

relative humidity / at 25 °C / without condensation / during operation / maximum85 %

protection class IPIP00

design, dimensions and weights

module formatPCI Express x1 (half length)

width18 mm

height112 mm

depth168 mm

net weight117 g

product features, product functions, product components / general

number of plug-in cards of same design / plug-in / per PC station4

number of units / noteFMS-5613 supports up to two CP 5603 / CP 5613 A2 / CP 5614 A2 / CP 5623 / CP 5624 processors

performance data / open communication

software / for open communication / by means of SEND/RECEIVE / requiredFDL driver included in scope of delivery of the CP

number of possible connections / for open communication / by means of SEND/RECEIVE / maximum80

performance data / PROFIBUS DP

software / for DP master function / requiredNo

DPV0Yes

DPV1Yes

DPV2Yes

number of DP devices / on DP master / operable124

of the address range of the inputs / as DP master / total30256 byte

of the address range of the outputs / as DP master / total30256 byte

of the address range of the inputs / per DP device244 byte

of the address range of the outputs / per DP device244 byte

of the address range of the diagnostic data / per DP device244 byte

software / for DP device function / requiredNo

DPV0Yes

DPV1Yes

of the address range of the inputs / as DP device / total244 byte

of the address range of the outputs / as DP device / total244 byte

performance data / FMS functions

software / for FMS communication / requiredYes, FMS-5613

number of possible connections / for FMS connection / maximum40

performance data / S7 communication

software / for S7 communication / requiredYes, HARDNET-PB S7 (S7-5613)

number of possible connections / for S7/PG communication / maximum50

performance data / multi-protocol mode

number of active connections / with multi-protocol mode50

number of configurable connections / per PC station207

product functions / management, configuration, engineering

configuration software / requiredIncluded in scope of supply

product functions / diagnostics

port diagnosticsYes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total200.03 kg

during manufacturing33.2 kg

during operation166.77 kg

after end of life0.06 kg
