How can I get a price quote for Siemens 6GK1503-4CA01?

You can request a fast quote for Siemens 6GK1503-4CA01 from Yılsa Engineering. Reference part number CEY-8EF3B03857A7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK1503-4CA01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK1503-4CA01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK1503-4CA01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

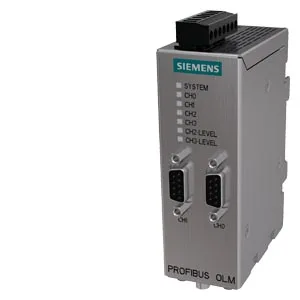

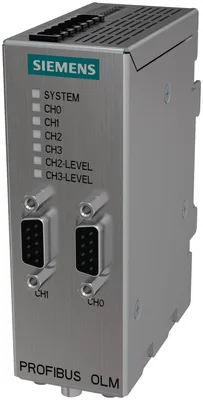

Siemens 6GK1503-4CA01

********** spare part ********* PROFIBUS OLM/P22 V4.1 Optical link module with 2 RS-485 and 3 plastic FOC interfaces (4 BFOC sockets); with signaling contact and measuring output.

SiemensMFR # 6GK1503-4CA01SKU # CEY-8EF3B03857A7

product brand nameSIMATIC NET

transfer rate / with PROFIBUS9.6 kbit/s ... 12 Mbit/s

transfer rate / with PROFIBUS PA45.45 kbit/s

for measuring device1

for signaling contact1

for power supply1

Have questions?Chat on WhatsApp

About This Product

********** spare part ********* PROFIBUS OLM/P22 V4.1 Optical link module with 2 RS-485 and 3 plastic FOC interfaces (4 BFOC sockets); with signaling contact and measuring output.

Siemens 6GK1503-4CA01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

transfer rate / with PROFIBUS9.6 kbit/s ... 12 Mbit/s

transfer rate / with PROFIBUS PA45.45 kbit/s

interfaces

number of electrical/optical connections / for network components or terminal equipment / maximum4

for network components or terminal equipment2

for measuring device1

for signaling contact1

for power supply1

for network components or terminal equipment9-pin Sub-D socket

for measuring device2-pole terminal block

for power supply and signaling contact5-pole terminal block

design of the optical interface / for fiber optic cableBFOC port

optical data

propagation delay [bit]6.5 bit

of the FOC transmission link / for PCF FOC with 200/230 µm / at 10 dB/km-17 dB

of the FOC transmission link / for POF FOC with 980/1000 µm / at 230 dB/km-5 dB

of the FOC transmission link / for PCF FOC with 200/230 µm / at 10 dB/km-23 dB

for PCF FOC with 200/230 µm / at 10 dB/km / maximum400 m

for POF FOC with 980/1000 µm / at 230 dB/km / maximum80 m

signal inputs/outputs

operating voltage / of the signaling contacts / at DC / rated value24 V

operational current / of the signaling contacts / at DC / maximum0.1 A

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage / at DC / rated value24 V

supply voltage / at DC18 ... 32 V

product component / fusing at power supply inputYes

consumed current / at DC / at 24 V / maximum0.2 A

ambient conditions

during operation0 ... 60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP40

design, dimensions and weights

designcompact

width39.5 mm

height112 mm

depth74.5 mm

net weight0.34 kg

35 mm DIN-rail mountingYes

wall mountingYes

product functions / redundancy

product function / ring redundancyYes

standards, specifications, approvals

for safety / from CSA and ULUL 60950-1, CSA C22.2 Nr. 60950-1

for emitted interferenceEN 61000-6-4 (Class A)

for interference immunityEN 61000-6-2

certificate of suitabilityEN 61000-6-2, EN 61000-6-4

CE markingYes

C-TickYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)Yes

Det Norske Veritas (DNV)Yes

Germanische Lloyd (GL)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (NK)Yes

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

standards, specifications, approvals / hazardous environments

certificate of suitability / CCC / for hazardous zone according to GB standardNo

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total165.41 kg

during manufacturing15.09 kg

during operation150.26 kg

after end of life0.06 kg
