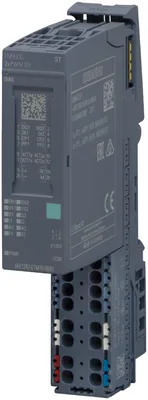

Siemens 6FE1242-6TM10-0BB1

SIMATIC ET 200SP TM ECC 2xPWM ST Chargecontroller f. conductive charging of electric vehicles according IEC61851 mode 3 for 2 Charging points -30°C...60°C 2x Control Pilot 2x Plug Present 2x DQ switch contact for contactor; 2x DI read contact for contactor or connector locking; 2x ACT for connector locking suitable for BU Typ BU20-P12+A0+4B and BU20-P12+A4+0B

SiemensMFR # 6FE1242-6TM10-0BB1SKU # YLSDCG4DI1P5Y

Product type designationECC 2x PWM ST

HW functional status1

Firmware versionV1.04

FW update possibleYes

usable BaseUnitsBU type B0, B1

I&M dataYes; I&M0 to I&M3

Have questions?Chat on WhatsApp

About This Product

Siemens 6FE1242-6TM10-0BB1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationECC 2x PWM ST

HW functional status1

Firmware versionV1.04

FW update possibleYes

Product descriptionTechnology modules for the conductive AC charging of electric vehicles according to IEC 61851

usable BaseUnitsBU type B0, B1

Number of channels2; Acc. to IEC 61851-1 Mode 3 and/or SAE J1772

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV14 SP1

Installation type/mounting

Mounting typestandard rail

Mounting positionHorizontal

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes; against destruction

Load voltage L+

Rated value (DC)24 V

Input current

Current consumption, typ.40 mA

Current consumption, max.90 mA

Digital inputs

Number of digital inputs2; 1 per channel

Digital inputs, parameterizableYes; 12 V / 24 V

Digital input functions, parameterizable

Freely usable digital inputNo; Readback contact contactor / connector lock

Input voltage

Type of input voltageDC

for signal "0"<0.2 V (nom)

for signal "1">0.6 V (nom)

permissible voltage at input, min.0 V

permissible voltage at input, max.30 V

Cable length

unshielded, max.30 m

Digital outputs

Type of digital outputTransistor

Number of digital outputs2; 1 per channel

short-circuit proofYes

Short-circuit protectionYes; electronic/thermal

Digital output functions, parameterizable

PWM outputYes; According to IEC 61851

— Number, max.2; 1 per channel

— Cycle duration, parameterizableNo; 1 kHz

Connection of a DC motorYes; ACT p/n connector locking

Switching capacity of the outputs

with resistive load, max.1.3 A

Output voltage

Type of output voltageDC

Rated value (DC)24 V

Cable length

unshielded, max.30 m; when using a PROFIBUS line

Analog outputs

Number of analog outputs2; Control pilot acc. to IEC 61851-1 and/or SAE J1772

Connection of a DC motorYes; Motor for connector lock

Protocols

Bus communicationYes

Vehicle communication according to IEC 61851Yes; MODE 3

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageNo

Short-circuitYes

Diagnostics indication LED

ERROR LEDYes; red LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

Isolation

Isolation tested with707 V DC

Degree of pollution2

EMC

Electrostatic discharge acc. to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Field-related interference acc. to IEC 61000-4-310 V/m (80 ... 1 000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz)

Conducted interference due to burst acc. to IEC 61000-4-42 kV signal lines

Conducted interference due to surge acc. to IEC 61000-4-5On DC supply lines: 0.5 kV symmetrical and asymmetrical

Conducted interference due to high-frequency radiation acc. to IEC 61000-4-610 V (0.15 ... 80 MHz)

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

Certificate of suitabilityCE / RCM / EAC / UL / KC

Ambient temperature during operation

min.-30 °C

max.60 °C

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Ambient temperature during storage/transportation

Storage, min.-40 °C

Storage, max.70 °C

Transportation, min.-40 °C

Transportation, max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m)

Relative humidity

Operation, min.5 %

Operation, max.95 %; no condensation

Vibrations

Vibration resistance during operation acc. to IEC 60068-2-610 ... 58 Hz / 0.075 mm, 58 ... 150 Hz / 1 g

Shock testing

Shock resistance acc. to IEC 60068-2-2715 g / 11 ms

Decentralized operation

to SIMATIC S7-1500Yes

Dimensions

Width20 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.32 g
