How can I get a price quote for Siemens 6ES7193-6BP20-2BB0?

You can request a fast quote for Siemens 6ES7193-6BP20-2BB0 from Yılsa Engineering. Reference part number CEY-8EF3B0387DB5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7193-6BP20-2BB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7193-6BP20-2BB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7193-6BP20-2BB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

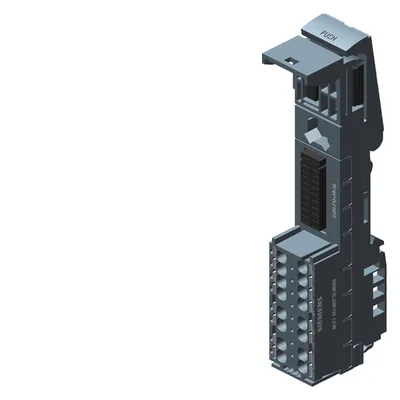

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6ES7193-6BP20-2BB0

SIMATIC ET 200SP, BaseUnit BU20-P12+A4+0B, BU type B0, Pack quantity: 10 units, Push-in terminals, with 4 AUX terminals, bridged to the left, WxH: 20 mmx117 mm

SiemensMFR # 6ES7193-6BP20-2BB0SKU # CEY-8EF3B0387DB5

Product type designationBU type B0

HW functional statusFS10 and higher

Rated value (DC)See manual

For P1 and P2 bus24 V

for process terminals24 V

Rated value (AC)See manual

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, BaseUnit BU20-P12+A4+0B, BU type B0, Pack quantity: 10 units, Push-in terminals, with 4 AUX terminals, bridged to the left, WxH: 20 mmx117 mm

Siemens 6ES7193-6BP20-2BB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationBU type B0

HW functional statusFS10 and higher

Supply voltage

Rated value (DC)See manual

For P1 and P2 bus24 V

For AUX bus24 V; Equal potential group to P1/P2 bus or PE

for process terminals24 V

Rated value (AC)See manual

For P1 and P2 bus230 V

For AUX bus230 V; Equal potential group to P1/P2 bus or PE

for process terminals230 V

Mains filter

IntegratedNo

Current carrying capacity

up to 60 °C, max.10 A

For P1 and P2 bus, max.10 A

For AUX bus, max.10 A

For process terminals, max.5 A

Hardware configuration

Automatic encodingYes

Slots

Number of slots1

Potential separation

between backplane bus and supply voltageYes

between process terminals and supply voltageYes; only for process terminals 1 to 8

between power bus and supply voltageNo

Isolation

Isolation tested with3 100 V DC

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]0.873 kg

— global warming potential, (during production) [CO2 eq]0.866 kg

— global warming potential, (during operation) [CO2 eq]0 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.0011 kg

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m; On request: Installation altitudes greater than 2 000 m

Color coding labels

for AUX terminalsCC81 to CC83

Terminals

Terminal typePush-in terminal

system-integrated shield connectionYes; Optional

Conductor cross-section, min.0.14 mm²; AWG 26

Conductor cross-section, max.2.5 mm²; AWG 14

Number of process terminals to I/O module12; Pro slot

Number of terminals to AUX bus0

Number of add-on terminals0

Number of terminals with connection to P1 and P2 bus0; Pro slot

Dimensions

Width20 mm

Height117 mm

Depth35 mm

Weights

Weight, approx.48 g

Accessories 10

Genuine accessories that can be used with the Siemens 6ES7193-6BP20-2BB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7133-6CV15-1AM0	Aksesuar · Cover
6ES7193-6CP01-2MA0	Aksesuar · label
6ES7193-6CP02-2MA0	Aksesuar · label
6ES7193-6CP03-2MA0	Aksesuar · label
6ES7193-6CP04-2MA0	Aksesuar · label
6ES7193-6CP05-2MA0	Aksesuar · label
6ES7193-6CP71-2AA0	Aksesuar · label
6ES7193-6CP72-2AA0	Aksesuar · label
6ES7193-6CP73-2AA0	Aksesuar · label
6ES7193-6CP00-2MA0	Aksesuar · label
