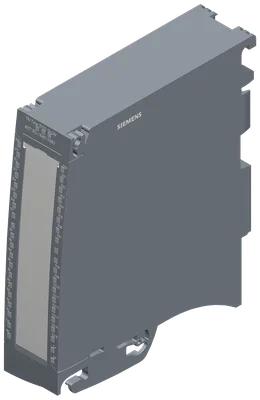

Siemens 6ES7552-1AA01-0AB0

SIMATIC S7-1500, TM timer DIDQ 24x24 V time-controlled digital inputs and outputs max. 8 DI, 16 DQ of which max. 24 with time stamp, counting, PWM, oversampling; for marine approvals see product information

SiemensMFR # 6ES7552-1AA01-0AB0SKU # YLSERJGMCPI7QKF

Product type designationTM Timer DIDQ 24x24V

Firmware versionV2.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeYes

Rail mountingYes; S7-1500 mounting rail

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7552-1AA01-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationTM Timer DIDQ 24x24V

Firmware versionV2.0

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V19 with HSP or higher

Installation type/mounting

Rail mountingYes; S7-1500 mounting rail

Load voltage 1L+

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes; against destruction

Load voltage 2L+

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes; against destruction

Input current

Current consumption, max.40 mA; without load

from load voltage 1L+ (without load), max.20 mA; without load

from load voltage 2L+ (without load), max.20 mA; without load

Encoder supply

Number of outputs8; max. depending on parameterization

24 V encoder supply

24 VYes; L+ (-0.8 V)

Short-circuit protectionYes

Output current, max.1.2 A; Total current of all encoders / channels, max. 0.5 A per output

Power

Power consumption from the backplane bus1.3 W

Power loss

Power loss, typ.5 W

Address space per module

Inputs45 byte; max. depending on parameterization

Outputs78 byte; max. depending on parameterization

Digital inputs

Number of digital inputs8; max. depending on parameterization

Digital inputs, parameterizableYes

Input characteristic curve in accordance with IEC 61131, type 3Yes

Digital input functions, parameterizable

Digital input with time stampYes

— Number, max.8

CounterYes

— Number, max.4

Counter for incremental encoderYes

— Number, max.4

Digital input with oversamplingYes

— Number, max.8

HW enable for digital inputYes

— Number, max.4

HW enable for digital outputYes

— Number, max.4

Input voltage

Type of input voltageDC

Rated value (DC)24 V

for signal "0"-5 ... +5 V

for signal "1"+11 to +30V

permissible voltage at input, min.-30 V; -5 V continuous, -30 V brief reverse polarity protection

permissible voltage at input, max.30 V

Input current

for signal "1", typ.2.5 mA

Input delay (for rated value of input voltage)

Minimum pulse width for program reactions3 µs; for parameterization "none"

for standard inputs

— parameterizableYes; none / 0.05 / 0.1 / 0.4 / 0.8 ms

Cable length

shielded, max.1 000 m; Depending on sensor, cable quality and rate of change

unshielded, max.600 m; Depending on sensor, cable quality and rate of change

Digital outputs

Type of digital outputTransistor

Number of digital outputs16; max. depending on parameterization

in groups of8

Current-sinkingYes; With High Speed output

Current-sourcingYes

Digital outputs, parameterizableYes

Short-circuit protectionYes; electronic/thermal

Response threshold, typ.1.7 A with Standard output, 0.5 A with High Speed output

Limitation of inductive shutdown voltage to-0.8 V

Controlling a digital inputYes

Digital output functions, parameterizable

Digital output with time stampYes

— Number, max.16

PWM outputYes

— Number, max.16

Digital output with oversamplingYes

— Number, max.16

Switching capacity of the outputs

with resistive load, max.0.5 A; 0.1 A with High Speed output

Load resistance range

lower limit48 Ω; 240 ohm with High Speed output

upper limit12 kΩ

Output voltage

Type of output voltageDC

for signal "0", max.1 V; With High Speed output

for signal "1", min.23.2 V; L+ (-0.8 V)

Output current

for signal "1" rated value0.5 A; 0.1 A with High Speed output, observe derating

for signal "1" permissible range, max.0.6 A; 0.12 A with High Speed output, observe derating

for signal "1" minimum load current2 mA

for signal "0" residual current, max.0.5 mA

Output delay with resistive load

"0" to "1", max.1 µs; With High Speed output, 5 µs with Standard output

"1" to "0", max.1 µs; With High Speed output, 6 µs with Standard output

Switching frequency

with resistive load, max.10 kHz

Total current of the outputs

Current per group, max.4 A

Current per module, max.8 A; Observe derating

Cable length

shielded, max.1 000 m; depending on load and cable quality

unshielded, max.600 m; depending on load and cable quality

Connectable encoders

Incremental encoder (asymmetrical)Yes

24 V initiatorYes

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

Encoder signals, incremental encoder (asymmetrical)

Input voltage24 V

Input frequency, max.50 kHz

Counting frequency, max.200 kHz; with quadruple evaluation

Cable length, shielded, max.600 m; Depending on input frequency, encoder and cable quality; max. 200 m at 50 kHz

Incremental encoder with A/B tracks, 90° phase offsetYes

pulse encoderYes

Interface types

Input characteristic curve in accordance with IEC 61131, type 3Yes

Isochronous mode

Bus cycle time (TDP), min.250 µs

Jitter, max.1 µs

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

short-circuitYes

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)Yes; green LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

Integrated Functions

CounterYes

Number of counters4

Counting frequency, max.200 kHz; with quadruple evaluation

Counting functions

Continuous countingYes

Position detection

Incremental acquisitionYes

Potential separation channels

between the channels and backplane busYes

Isolation

Isolation tested with707 V DC (type test)

Security

signed firmware updateYes

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.40 °C; Observe derating

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200MP system manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Decentralized operation

to SIMATIC S7-1500Yes

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.320 g

Accessories 14

Genuine accessories that can be used with the Siemens 6ES7552-1AA01-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7592-1AM00-0XB0	Aksesuar · Connection plug
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7590-0BD00-0AA0	Aksesuar · Rack
6ES7590-0BH00-0AA0	Aksesuar · Rack
6ES7590-0BL00-0AA0	Aksesuar · Rack
6ES7590-0AA00-0AA0	Yedek parça · spare part
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7592-2AX00-0AA0	Yedek parça · label
6ES7592-1BM00-0XB0	Zorunlu ek ürün · Connection plug
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
