How can I get a price quote for Siemens 6ES7592-1AM00-0XB0?

You can request a fast quote for Siemens 6ES7592-1AM00-0XB0 from Yılsa Engineering. Reference part number CEY-937FC780556D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7592-1AM00-0XB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7592-1AM00-0XB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7592-1AM00-0XB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

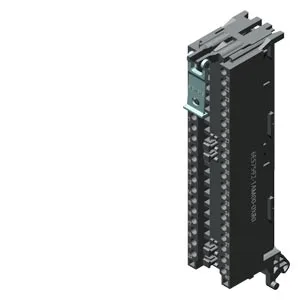

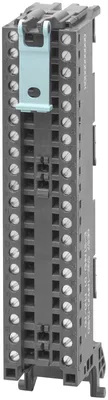

Siemens 6ES7592-1AM00-0XB0

SIMATIC S7-1500/ET 200MP, 40-pole front connector with screw-type connection for 35 mm wide modules; incl. potential bridges and cable tie

SiemensMFR # 6ES7592-1AM00-0XB0SKU # CEY-937FC780556D

Connection methodScrew terminals

— Stripped length of cables, min.10 mm

— Stripped length of cables, max.11 mm

— Tightening torque, min.0.4 N·m

— Tightening torque, max.0.7 N·m

Width29.8 mm

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1500/ET 200MP, 40-pole front connector with screw-type connection for 35 mm wide modules; incl. potential bridges and cable tie

Siemens 6ES7592-1AM00-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Connection I/O signals

Connection methodScrew terminals

Number of lines per connection1; or combination of 2 conductors of up to 1.5 mm² (total) in a shared ferrule

Conductor cross-section in mm²

— Connectable cable cross-sections for massive cables, min.0.25 mm²

— Connectable cable cross-sections for massive cables, min.1.5 mm²

— Connectable cable cross-sections for flexible cables without end sleeve, min.0.25 mm²

— Connectable cable cross-sections for flexible cables without end sleeve, max.1.5 mm²

— Connectable cable cross-sections for flexible cables with end sleeve, min.0.25 mm²

— Connectable cable cross-sections for flexible cables with end sleeve, max.1.5 mm²

Conductor cross-section acc. to AWG

— Connectable cable cross-sections for massive cables, min.24

— Connectable cable cross-sections for massive cables, min.16

— Connectable cable cross-sections for flexible cables without end sleeve, min.24

— Connectable cable cross-sections for flexible cables without end sleeve, max.16

— Connectable cable cross-sections for flexible cables with end sleeve, min.24

— Connectable cable cross-sections for flexible cables with end sleeve, max.16

Wire end processing

— Stripped length of cables, min.10 mm

— Stripped length of cables, max.11 mm

— End sleeve acc. to DIN 46228 without plastic sleeveForm A, 10 mm and 12 mm long

— End sleeve acc. to DIN 46228 with plastic sleeveForm E, 10 mm and 12 mm long

Mounting

— ToolScrewdriver, conical design, 3 mm to 3.5 mm

— Tightening torque, min.0.4 N·m

— Tightening torque, max.0.7 N·m

Dimensions

Width29.8 mm

Height130.5 mm

Depth46 mm

Weights

Weight, approx.123 g
