How can I get a price quote for Siemens 6ES7532-5ND00-0AB0?

You can request a fast quote for Siemens 6ES7532-5ND00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC780ACDF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7532-5ND00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7532-5ND00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7532-5ND00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

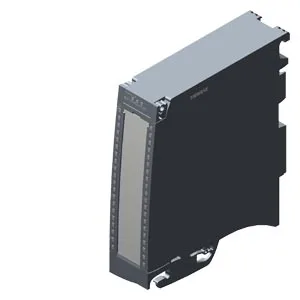

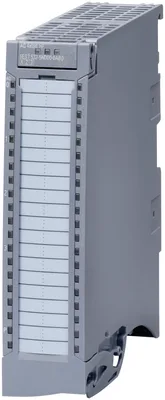

Siemens 6ES7532-5ND00-0AB0

SIMATIC S7-1500/ET 200MP, analog output module, AQ 4xU/I HF (35 mm); 16-bit resolution; accuracy 0.1%; 4 channels in groups of 1; common mode voltage 30 V AC/60 V DC; diagnostics; substitute value; isochronous mode; safety-oriented shutdown of load groups up to SIL 2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015; incl. U-connector and complete infeed and shielding set (without front connector)

SiemensMFR # 6ES7532-5ND00-0AB0SKU # CEY-937FC780ACDF

Product type designationAQ 4xU/I HF

HW functional statusfrom FS01

Firmware versionV1.1.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeYes

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7532-5ND00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAQ 4xU/I HF

HW functional statusfrom FS01

Firmware versionV1.1.0

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeYes

Prioritized startupYes

Output range scalableNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV14 / -

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionV1.0 / V5.1

PROFINET from GSD version/GSD revisionV2.3 / -

Operating mode

OversamplingNo

MSOYes

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNYes

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, max.160 mA

Power

Power consumption from the backplane bus0.95 W

Power loss

Power loss, typ.5 W

Analog outputs

Number of analog outputs4

Voltage output, short-circuit protectionYes

Voltage output, short-circuit current, max.24 mA

Current output, no-load voltage, max.22 V

Cycle time (all channels), min.125 µs; independent of number of activated channels

Analog output with oversamplingNo

Output ranges, voltage

0 to 10 VYes

1 V to 5 VYes

-5 V to +5 VNo

-10 V to +10 VYes

Output ranges, current

0 to 20 mAYes

-20 mA to +20 mAYes

4 mA to 20 mAYes

Connection of actuators

for voltage output two-wire connectionYes

for voltage output four-wire connectionYes

for current output two-wire connectionYes

Load impedance (in rated range of output)

with voltage outputs, min.1 kΩ; 0.5 kOhm at 1 to 5 V

with voltage outputs, capacitive load, max.1 µF

with current outputs, max.750 Ω

with current outputs, inductive load, max.10 mH

Cable length

shielded, max.800 m; for current, 200 m for voltage

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Conversion time (per channel)125 µs; independent of number of activated channels

Settling time

for resistive load0.2 ms; see additional description in the manual

for capacitive load1.8 ms; see additional description in the manual

for inductive load2 ms; see additional description in the manual

Errors/accuracies

Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)0.02 %

Linearity error (relative to output range), (+/-)0.015 %

Temperature error (relative to output range), (+/-)0.002 %/K

Crosstalk between the outputs, max.-100 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0.005 %

note regarding accuracyat temperatures below 0 °C, the figures for operating error and temperature error are doubled

Operational error limit in overall temperature range

Voltage, relative to output range, (+/-)±10 V; 0 V to 10 V: ±0.12%; 1 V to 5 V: ±0.1%

Current, relative to output range, (+/-)±20 mA; 0 mA to 20 mA: ±0.2%; 4 mA to 20 mA: ±0.12%

Basic error limit (operational limit at 25 °C)

Voltage, relative to output range, (+/-)0.06 %

Current, relative to output range, (+/-)0.1 %

Isochronous mode

Execution and activation time (TCO), min.100 µs

Bus cycle time (TDP), min.250 µs

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; Only for output type "current"

Short-circuitYes; Only for output type "voltage"

Overflow/UnderflowYes

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

Monitoring of the supply voltage (PWR-LED)Yes; green LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; red LED

Potential separation channels

between the channelsYes

between the channels, in groups of1

between the channels and backplane busYes

Between the channels and load voltage L+Yes

Permissible potential difference

between different circuits60 V DC/30 V AC; insulation rated for 120 V AC basic insulation: between the channels and the supply voltage L+; between the channels and the backplane bus; between the channels

Isolation

Isolation tested with2 000 V DC between the channels and the supply voltage L+; 2 000 V DC between the channels and the backplane bus; 2 000 V DC between the channels; 707 V DC (type test) between the supply voltage L+ and the backplane bus

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

Suitable for safety-related tripping of standard modulesYes; From FS03

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]37.6 kg

— global warming potential, (during production) [CO2 eq]11.1 kg

— global warming potential, (during operation) [CO2 eq]26.8 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.364 kg

Highest safety class achievable for safety-related tripping of standard modules

Performance level according to ISO 13849-1PL d

Category according to ISO 13849-1Cat. 3

SIL acc. to IEC 62061SIL 2

Security

signed firmware updateNo

securely removing dataNo

data integrityNo

Ambient temperature during operation

horizontal installation, min.-25 °C; From FS02

horizontal installation, max.60 °C

vertical installation, min.-25 °C; From FS02

vertical installation, max.40 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.300 g

Other

Note:please order front connectors (screw-in/push-in) separately

Accessories 16

Genuine accessories that can be used with the Siemens 6ES7532-5ND00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7592-1AM00-0XB0	Aksesuar · Connection plug
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7590-0BD00-0AA0	Aksesuar · Rack
6ES7590-0BH00-0AA0	Aksesuar · Rack
6ES7590-0BL00-0AA0	Aksesuar · Rack
6ES7590-0AA00-0AA0	Yedek parça · spare part
6ES7590-5CA00-0AA0	Yedek parça · spare part
6ES7590-5BA00-0AA0	Yedek parça · Accessories
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7592-2AX00-0AA0	Yedek parça · label
6ES7592-1BM00-0XB0	Zorunlu ek ürün · Connection plug
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
