How can I get a price quote for Siemens 6ES7532-5HD00-0AB0?

You can request a fast quote for Siemens 6ES7532-5HD00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77FD995. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7532-5HD00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7532-5HD00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7532-5HD00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

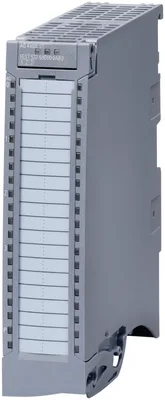

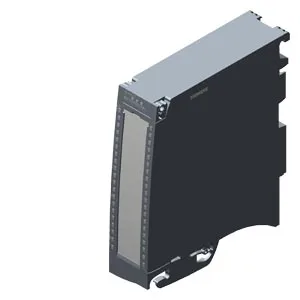

Siemens 6ES7532-5HD00-0AB0

SIMATIC S7-1500/ET 200MP, analog output module, AQ 4xU/I ST (35 mm); 16-bit resolution; accuracy 0.3%; 4 channels in one group; diagnostics; substitute value; safety-oriented shutdown of load groups up to SIL 2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015; incl. U-connector and complete infeed and shielding set (without front connector)

SiemensMFR # 6ES7532-5HD00-0AB0SKU # CEY-937FC77FD995

Product type designationAQ 4xU/I ST

HW functional statusfrom FS04

Firmware versionV2.2.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7532-5HD00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAQ 4xU/I ST

HW functional statusfrom FS04

Firmware versionV2.2.0

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Prioritized startupNo

Output range scalableNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV12 / V12

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionV1.0 / V5.1

PROFINET from GSD version/GSD revisionV2.3 / -

Operating mode

OversamplingNo

MSOYes

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNYes

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, max.190 mA; with 24 V DC supply

Power

Power consumption from the backplane bus0.6 W

Power loss

Power loss, typ.4 W

Analog outputs

Number of analog outputs4

Voltage output, short-circuit protectionYes

Voltage output, short-circuit current, max.24 mA

Current output, no-load voltage, max.22 V

Cycle time (all channels), min.3.2 ms; independent of number of activated channels

Output ranges, voltage

0 to 10 VYes

1 V to 5 VYes

-5 V to +5 VNo

-10 V to +10 VYes

Output ranges, current

0 to 20 mAYes

-20 mA to +20 mAYes

4 mA to 20 mAYes

Connection of actuators

for voltage output two-wire connectionYes

for voltage output four-wire connectionYes

for current output two-wire connectionYes

Load impedance (in rated range of output)

with voltage outputs, min.1 kΩ; 0.5 kOhm at 1 to 5 V

with voltage outputs, capacitive load, max.1 µF

with current outputs, max.750 Ω

with current outputs, inductive load, max.10 mH

Cable length

shielded, max.800 m; for current, 200 m for voltage

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Conversion time (per channel)0.5 ms

Settling time

for resistive load1.5 ms

for capacitive load2.5 ms

for inductive load2.5 ms

Errors/accuracies

Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)0.02 %

Linearity error (relative to output range), (+/-)0.15 %

Temperature error (relative to output range), (+/-)0.002 %/K

Crosstalk between the outputs, max.-100 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0.05 %

Operational error limit in overall temperature range

Voltage, relative to output range, (+/-)0.3 %

Current, relative to output range, (+/-)0.3 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to output range, (+/-)0.2 %

Current, relative to output range, (+/-)0.2 %

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; Only for output type "current"

Short-circuitYes; Only for output type "voltage"

Overflow/UnderflowYes

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

Monitoring of the supply voltage (PWR-LED)Yes; green LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; red LED

Potential separation channels

between the channelsNo

between the channels, in groups of4

between the channels and backplane busYes

Between the channels and load voltage L+Yes

Permissible potential difference

between S- and MANA (UCM)8 V DC

Isolation

Isolation tested with707 V DC (type test)

Security

signed firmware updateNo

data integrityNo

Ambient temperature during operation

horizontal installation, min.-30 °C; From FS06

horizontal installation, max.60 °C

vertical installation, min.-30 °C; From FS06

vertical installation, max.40 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.310 g

Accessories 16

Genuine accessories that can be used with the Siemens 6ES7532-5HD00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7592-1AM00-0XB0	Aksesuar · Connection plug
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7590-0BD00-0AA0	Aksesuar · Rack
6ES7590-0BH00-0AA0	Aksesuar · Rack
6ES7590-0BL00-0AA0	Aksesuar · Rack
6ES7590-0AA00-0AA0	Yedek parça · spare part
6ES7590-5CA00-0AA0	Yedek parça · spare part
6ES7590-5BA00-0AA0	Yedek parça · Accessories
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7592-2AX00-0AA0	Yedek parça · label
6ES7592-1BM00-0XB0	Zorunlu ek ürün · Connection plug
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
