How can I get a price quote for Siemens 6ES7531-7QF00-0AB0?

You can request a fast quote for Siemens 6ES7531-7QF00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC780ACE1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7531-7QF00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7531-7QF00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7531-7QF00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

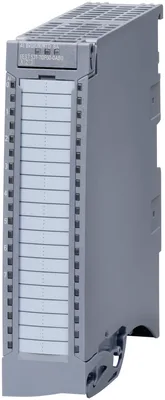

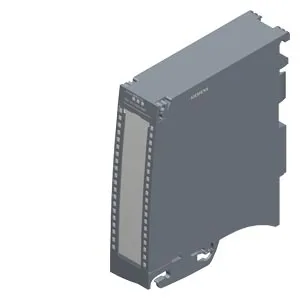

Siemens 6ES7531-7QF00-0AB0

SIMATIC S7-1500/ET 200MP, analog input module, AI 8xU/I/R/RTD BA (35 mm); 16-bit resolution; accuracy 0.5%; 8 channels in one group; common mode voltage 4 V DC; diagnostics; hardware interrupts; incl. U-connector and complete infeed and shielding set (without front connector)

SiemensMFR # 6ES7531-7QF00-0AB0SKU # CEY-937FC780ACE1

Product type designationAI 8xU/I/R/RTD BA

HW functional statusFS01

Firmware versionV1.0.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7531-7QF00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAI 8xU/I/R/RTD BA

HW functional statusFS01

Firmware versionV1.0.0

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Prioritized startupNo

Measuring range scalableNo

Scalable measured valuesNo

Adjustment of measuring rangeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV15.1 / V16

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionV1.0 / V5.1

PROFINET from GSD version/GSD revisionV2.3 / -

Operating mode

OversamplingNo

MSIYes

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNNo

Input current

Current consumption, max.0 mA; no supply required

Power

Power consumption from the backplane bus0.85 W

Power loss

Power loss, typ.0.9 W

Address space per module

Inputs16 byte; typical, maximum 68 bytes, see manual for details

Outputs0 byte

Analog inputs

Number of analog inputs8

For current measurement8

For voltage measurement8

For resistance/resistance thermometer measurement8

permissible input voltage for voltage input (destruction limit), max.12 V; 12 V continuous, 30 V for max. 1 s

permissible input current for current input (destruction limit), max.40 mA

Constant measurement current for resistance-type transmitter, typ.230 ... 370 µA

Technical unit for temperature measurement adjustableYes; °C/°F/K

Analog input with oversamplingNo

Standardization of measured valuesNo

Input ranges (rated values), voltages

0 to +5 VNo

0 to +10 VNo

1 V to 5 VYes

— Input resistance (1 V to 5 V)10 MΩ

-1 V to +1 VYes

— Input resistance (-1 V to +1 V)10 MΩ

-10 V to +10 VYes

— Input resistance (-10 V to +10 V)10 MΩ

-2.5 V to +2.5 VNo

-25 mV to +25 mVNo

-250 mV to +250 mVNo

-5 V to +5 VYes

— Input resistance (-5 V to +5 V)10 MΩ

-50 mV to +50 mVYes

— Input resistance (-50 mV to +50 mV)10 MΩ

-500 mV to +500 mVYes

— Input resistance (-500 mV to +500 mV)10 MΩ

-80 mV to +80 mVNo

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

-20 mA to +20 mAYes

— Input resistance (-20 mA to +20 mA)25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

4 mA to 20 mAYes

— Input resistance (4 mA to 20 mA)25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

Input ranges (rated values), thermocouples

Type BNo

Type CNo

Type ENo

Type JNo

Type KNo

Type LNo

Type NNo

Type RNo

Type SNo

Type TNo

Type UNo

Type TXK/TXK(L) to GOSTNo

Input ranges (rated values), resistance thermometer

Cu 10No

Cu 10 according to GOSTNo

Cu 50No

Cu 50 according to GOSTNo

Cu 100No

Cu 100 according to GOSTNo

Ni 10No

Ni 10 according to GOSTNo

Ni 100Yes; Standard/climate

— Input resistance (Ni 100)10 MΩ

Ni 100 according to GOSTNo

Ni 1000Yes; Standard/climate

— Input resistance (Ni 1000)10 MΩ

Ni 1000 according to GOSTNo

LG-Ni 1000Yes; Standard/climate

— Input resistance (LG-Ni 1000)10 MΩ

Ni 120No

Ni 120 according to GOSTNo

Ni 200No

Ni 200 according to GOSTNo

Ni 500No

Ni 500 according to GOSTNo

Pt 10No

Pt 10 according to GOSTNo

Pt 50No

Pt 50 according to GOSTNo

Pt 100Yes; Standard/climate

— Input resistance (Pt 100)10 MΩ

Pt 100 according to GOSTNo

Pt 1000Yes; Standard/climate

— Input resistance (Pt 1000)10 MΩ

Pt 1000 according to GOSTNo

Pt 200No

Pt 200 according to GOSTNo

Pt 500No

Pt 500 according to GOSTNo

Input ranges (rated values), resistors

0 to 150 ohmsNo

0 to 300 ohmsNo

0 to 600 ohmsYes

— Input resistance (0 to 600 ohms)10 MΩ

0 to 3000 ohmsNo

0 to 6000 ohmsYes

— Input resistance (0 to 6000 ohms)10 MΩ

PTCYes

— Input resistance (PTC)10 MΩ

Cable length

shielded, max.200 m; 50 m at 50 mV

Analog value generation for the inputs

Measurement principleintegrating

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Integration time, parameterizableYes

Integration time (ms)2,5 / 16,67 / 20 / 100 ms

Basic conversion time, including integration time (ms)10 / 24 / 27 / 107 ms

— additional conversion time for wire-break monitoring4 ms (to be considered in R/RTD/U 1 to 5 V measurement)

— additional conversion time for resistance measurement8 ms

Interference voltage suppression for interference frequency f1 in Hz400 / 60 / 50 / 10 Hz

Smoothing of measured values

Number of smoothing levels4

parameterizableYes

Step: NoneYes

Step: lowYes

Step: MediumYes

Step: HighYes

Connection of signal encoders

for voltage measurementYes

for current measurement as 2-wire transducerYes; with external supply

for current measurement as 4-wire transducerYes

for resistance measurement with two-wire connectionYes; Only for PTC

for resistance measurement with three-wire connectionYes; All measuring ranges except PTC; internal compensation of the cable resistances

for resistance measurement with four-wire connectionNo

Errors/accuracies

Linearity error (relative to input range), (+/-)0.1 %

Temperature error (relative to input range), (+/-)0.006 %/K

Crosstalk between the inputs, max.-50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.1 %

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.5 %

Current, relative to input range, (+/-)0.5 %

Resistance, relative to input range, (+/-)0.5 %

Resistance thermometer, relative to input range, (+/-)Ptxxx Standard: ±1.2 K, Ptxxx Climate: ±0.8 K, Nixxx Standard: ±0.8 K, Nixxx Climate: ±0.8 K

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.3 %

Current, relative to input range, (+/-)0.3 %

Resistance, relative to input range, (+/-)0.3 %

Resistance thermometer, relative to input range, (+/-)Ptxxx Standard: ±1.0 K, Ptxxx Climate: ±0.5 K, Nixxx Standard: ±0.5 K, Nixxx Climate: ±0.5 K

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.40 dB

Common mode voltage, max.4 V

Common mode interference, min.60 dB

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Limit value alarmYes; two upper and two lower limit values in each case

Diagnoses

Monitoring the supply voltageNo

Wire breakYes; Only for 1 ... 5 V, 4 ... 20 mA, R, and RTD

Short-circuitNo

Group errorNo

Overflow/UnderflowYes

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

MAINT LEDNo

Monitoring of the supply voltage (PWR-LED)No

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; red LED

Potential separation channels

between the channelsNo

between the channels, in groups of8

between the channels and backplane busYes

Permissible potential difference

between the inputs (UCM)8 V DC

Between the inputs and MANA (UCM)4 V DC

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

Suitable for applications according to AMS 2750No

Suitable for applications according to CQI-9No

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]38.6 kg

— global warming potential, (during production) [CO2 eq]14.4 kg

— global warming potential, (during operation) [CO2 eq]24.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.44 kg

Security

signed firmware updateNo

securely removing dataNo

data integrityNo

Ambient temperature during operation

horizontal installation, min.-30 °C; From FS05

horizontal installation, max.60 °C

vertical installation, min.-30 °C; From FS05

vertical installation, max.40 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.250 g

Other

Note:please order front connectors (screw-in/push-in) separately

Accessories 16

Genuine accessories that can be used with the Siemens 6ES7531-7QF00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7592-1AM00-0XB0	Aksesuar · Connection plug
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7590-0BD00-0AA0	Aksesuar · Rack
6ES7590-0BH00-0AA0	Aksesuar · Rack
6ES7590-0BL00-0AA0	Aksesuar · Rack
6ES7590-0AA00-0AA0	Yedek parça · spare part
6ES7590-5CA00-0AA0	Yedek parça · spare part
6ES7590-5BA00-0AA0	Yedek parça · Accessories
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7592-2AX00-0AA0	Yedek parça · label
6ES7592-1BM00-0XB0	Zorunlu ek ürün · Connection plug
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
