How can I get a price quote for Siemens 6ES7526-1BH00-0AB0?

You can request a fast quote for Siemens 6ES7526-1BH00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77F26C0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7526-1BH00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7526-1BH00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7526-1BH00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

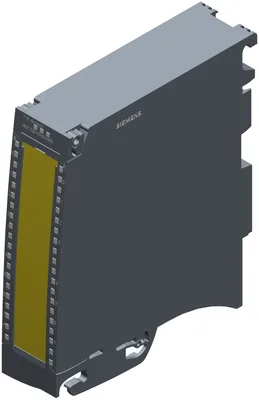

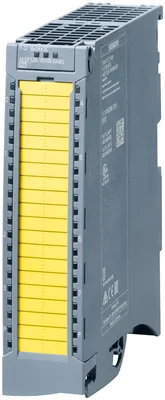

Siemens 6ES7526-1BH00-0AB0

SIMATIC S7-1500, F digital input module, F-DI 16x 24 V DC PROFIsafe; 35 mm width; up to PL E (ISO 13849-1)/ SIL 3 (IEC 61508)

SiemensMFR # 6ES7526-1BH00-0AB0SKU # CEY-937FC77F26C0

Product type designationF-DI 16x24VDC

FW update possibleYes

I&M dataYes; I&M0 to I&M3

DIYes

MSINo

Rated value (DC)24 V

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1500, F digital input module, F-DI 16x 24 V DC PROFIsafe; 35 mm width; up to PL E (ISO 13849-1)/ SIL 3 (IEC 61508)

Siemens 6ES7526-1BH00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationF-DI 16x24VDC

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV13 SP1 with HSP 0086

Operating mode

DIYes

MSINo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

power supply according to NEC Class 2 requiredNo

Input current

Current consumption (rated value)50 mA; without load

Current consumption, max.60 mA; without load

Encoder supply

Number of outputs4

Short-circuit protectionYes; Electronic (response threshold 0.7 A to 1.8 A)

24 V encoder supply

24 VYes; min. L+ (-1.5 V)

Short-circuit protectionYes

Output current, max.300 mA; Max. 100 mA when mounted vertically

Power

Power consumption from the backplane bus0.9 W

Power loss

Power loss, typ.4.6 W

Address space per module

Inputs9 byte; S7-300/400F CPU, 8 byte

Outputs5 byte; S7-300/400F CPU, 4 byte

Hardware configuration

Automatic encodingYes

Electronic coding element type FYes

Digital inputs

Number of digital inputs16

Sourcing/sinking inputYes; P-reading

Input characteristic curve in accordance with IEC 61131, type 1Yes

Input voltage

Rated value (DC)24 V

for signal "0"-30 to +5 V

for signal "1"+15 to +30 V

Input current

for signal "1", typ.3.7 mA

for standard inputs

— parameterizableYes

— at "0" to "1", min.0.4 ms

— at "0" to "1", max.20 ms

— at "1" to "0", min.0.4 ms

— at "1" to "0", max.20 ms

Cable length

shielded, max.1 000 m

unshielded, max.500 m

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Hardware interruptNo

Diagnoses

Monitoring the supply voltageYes

Wire breakNo

Short-circuitYes

Group errorYes

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; red LED

Potential separation channels

between the channels and backplane busYes

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functionsYes

Highest safety class achievable in safety mode

Performance level according to ISO 13849-1PLe

SIL acc. to IEC 61508SIL 3

Probability of failure (for service life of 20 years and repair time of 100 hours)

— Low demand mode: PFDavg in accordance with SIL3< 5.00E-05

— High demand/continuous mode: PFH in accordance with SIL3< 1.00E-09 1/h

Ambient temperature during operation

horizontal installation, min.0 °C

horizontal installation, max.60 °C

vertical installation, min.0 °C

vertical installation, max.40 °C

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.280 g

Accessories 16

Genuine accessories that can be used with the Siemens 6ES7526-1BH00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7592-1AM00-0XB0	Aksesuar · Connection plug
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7590-0BD00-0AA0	Aksesuar · Rack
6ES7590-0BH00-0AA0	Aksesuar · Rack
6ES7590-0BL00-0AA0	Aksesuar · Rack
6ES7590-0AA00-0AA0	Yedek parça · spare part
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7592-2AX00-0AA0	Yedek parça · label
6ES7592-2CX00-0AA0	Yedek parça · label
6ES7592-6EF00-1AA0	Yedek parça · spare part
6ES7592-1BM00-0XB0	Zorunlu ek ürün · Connection plug
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
