How can I get a price quote for Siemens 6ES7523-1BL00-0AA0?

You can request a fast quote for Siemens 6ES7523-1BL00-0AA0 from Yılsa Engineering. Reference part number CEY-937FC77E34EC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7523-1BL00-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7523-1BL00-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7523-1BL00-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

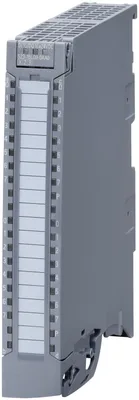

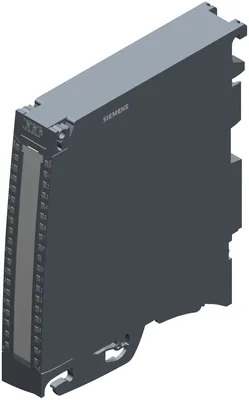

Siemens 6ES7523-1BL00-0AA0

SIMATIC S7-1500/ET 200MP, digital input/output module, DI 16x24 V DC / DQ 16x24 V DC/0.5 A BA (25 mm); sinking input / sourcing output; 16 channels in one group (DI) / 16 channels in groups of 8 (DQ); 4 A per group (0.5 A per channel); input type 3 according to IEC 61131; input delay typ. 3.2 ms; safety-oriented shutdown of load groups up to SIL 2 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015; incl. U-connector and push-in front connector

SiemensMFR # 6ES7523-1BL00-0AA0SKU # CEY-937FC77E34EC

Product type designationDI 16x24VDC / DQ16x24VDC/0.5A BA

HW functional statusfrom FS01

Firmware versionV1.0.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7523-1BL00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDI 16x24VDC / DQ16x24VDC/0.5A BA

HW functional statusfrom FS01

Firmware versionV1.0.0

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Prioritized startupYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV13 / V13

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionV1.0 / V5.1

PROFINET from GSD version/GSD revisionV2.3 / -

Operating mode

DIYes

CounterNo

DQYes

DQ with energy-saving functionNo

PWMNo

Cam control (switching at comparison values)No

OversamplingNo

MSIYes

MSOYes

Integrated operating cycle counterNo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes; through internal protection with 7 A per group

Input current

Current consumption, max.30 mA

Output voltage

Rated value (DC)24 V

Power

Power consumption from the backplane bus1.1 W

Power loss

Power loss, typ.3.45 W

Address space per module

Inputs2 byte; typical, maximum 30 bytes, see manual for details

Outputs2 byte

Digital inputs

Number of digital inputs16

Digital inputs, parameterizableNo

Sourcing/sinking inputP-reading

Input characteristic curve in accordance with IEC 61131, type 3Yes

Pulse extensionNo

Edge evaluationNo

Signal change flutterNo

Flutter observation windowNo

Number of simultaneously controllable inputs

Number of simultaneously controllable inputs16; see additional description in the manual

Digital input functions, parameterizable

Gate start/stopNo

Freely usable digital inputNo

CounterNo

Digital input with oversamplingNo

Input voltage

Rated value (DC)24 V

for signal "0"-30 to +5 V

for signal "1"+11 to +30V

Input current

for signal "1", typ.2.7 mA

for standard inputs

— parameterizableNo

— at "0" to "1", min.3 ms

— at "0" to "1", max.4 ms

— at "1" to "0", min.3 ms

— at "1" to "0", max.4 ms

for interrupt inputs

— ParameterizableNo

for technological functions

— ParameterizableNo

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Digital outputs

Type of digital outputTransistor

Number of digital outputs16

Current-sinkingNo

Current-sourcingYes

Digital outputs, parameterizableNo

Short-circuit protectionYes

Response threshold, typ.1 A

Limitation of inductive shutdown voltage toL+ (-53 V)

Controlling a digital inputYes

Digital output functions, parameterizable

Switching tripped by comparison valuesNo

Freely usable digital outputNo

PWM outputNo

Digital output with oversamplingNo

Switching capacity of the outputs

with resistive load, max.0.5 A

on lamp load, max.5 W

Load resistance range

lower limit48 Ω

upper limit12 kΩ

Output voltage

for signal "1", min.L+ (-0.8 V)

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range, max.0.5 A

for signal "0" residual current, max.0.5 mA

Output delay with resistive load

"0" to "1", max.100 µs

"1" to "0", max.500 µs

Parallel switching of two outputs

for logic linksYes

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.5 Hz

on lamp load, max.10 Hz

Total current of the outputs

Current per channel, max.0.5 A; see additional description in the manual

Current per group, max.4 A; see additional description in the manual

Current per module, max.8 A; see additional description in the manual

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

Interrupts/diagnostics/status information

Diagnostics functionNo

Substitute values connectableNo

Alarms

Diagnostic alarmNo

Maintenance interruptNo

Hardware interruptNo

Diagnoses

Monitoring the supply voltageNo

Wire breakNo

Short-circuitNo

Group errorNo

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

MAINT LEDNo

Monitoring of the supply voltage (PWR-LED)Yes; green LED

Channel status displayYes; green LED

for channel diagnosticsNo

for module diagnosticsNo

Potential separation channels

between the channelsNo

between the channels, in groups of8

between the channels and backplane busYes

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

Suitable for safety-related tripping of standard modulesYes; From FS03

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]18.9 kg

— global warming potential, (during production) [CO2 eq]12.1 kg

— global warming potential, (during operation) [CO2 eq]7.66 kg

— global warming potential, (after end of life cycle) [CO2 eq]-1.02 kg

Highest safety class achievable for safety-related tripping of standard modules

Performance level according to ISO 13849-1PL d

Category according to ISO 13849-1Cat. 3

SIL acc. to IEC 62061SIL 2

Security

signed firmware updateYes; Firmware V3.0.0 or higher

securely removing dataNo

data integrityYes; Firmware V3.0.0 or higher

Ambient temperature during operation

horizontal installation, min.-30 °C; from FS04

horizontal installation, max.60 °C

vertical installation, min.-30 °C; from FS04

vertical installation, max.40 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width25 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.280 g

Other

Note:Supplied incl. 40-pole push-in front connectors

Accessories 14

Genuine accessories that can be used with the Siemens 6ES7523-1BL00-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7592-1AM00-0XB0	Aksesuar · Connection plug
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7590-0BD00-0AA0	Aksesuar · Rack
6ES7590-0BH00-0AA0	Aksesuar · Rack
6ES7590-0BL00-0AA0	Aksesuar · Rack
6ES7590-0AA00-0AA0	Yedek parça · spare part
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7592-2AX00-0AA0	Yedek parça · label
6ES7592-1BM00-0XB0	Zorunlu ek ürün · Connection plug
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
