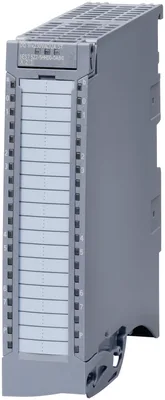

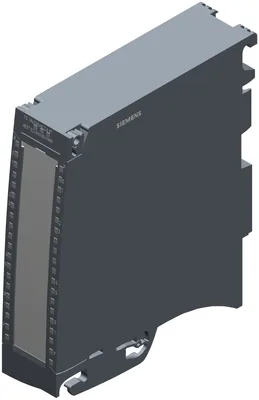

Siemens 6ES7522-5HH00-0AB0

SIMATIC S7-1500/ET 200MP, digital output module, DQ 16x230 V AC/2 A ST (Relay) (35 mm); 16 channels in groups of 2; 4 A per group (2 A per channel); relay outputs; diagnostics; substitute value; switching cycle counter for integrated relays; safety-oriented shutdown of load groups up to SIL 1 according to EN IEC 62061:2021 and Category 2 / PL c according to EN ISO 13849-1:2015; incl. U-connector (without front connector)

SiemensMFR # 6ES7522-5HH00-0AB0SKU # CEY-937FC7804744

Product type designationDQ 16x 230 V AC/2 A ST (relay)

HW functional statusFS01

Firmware versionV1.1.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7522-5HH00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDQ 16x 230 V AC/2 A ST (relay)

HW functional statusFS01

Firmware versionV1.1.0

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Prioritized startupYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV13 SP1 / -

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionV1.0 / V5.1

PROFINET from GSD version/GSD revisionV2.3 / -

Operating mode

DQYes

DQ with energy-saving functionNo

PWMNo

Cam control (switching at comparison values)No

OversamplingNo

MSOYes

Integrated operating cycle counterYes; FW V1.1.0 or higher

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, max.185 mA

Output voltage

Rated value (AC)230 V; 24 V DC to 120 V DC / 24 V AC to 230 V AC

Power

Power consumption from the backplane bus0.8 W

Power loss

Power loss, typ.5 W

Address space per module

Inputs0 byte; typical, maximum 14 bytes, see manual for details

Outputs2 byte

Digital outputs

Type of digital outputRelays

Number of digital outputs16

Current-sinkingYes

Current-sourcingYes

Digital outputs, parameterizableYes

Short-circuit protectionNo

Controlling a digital inputYes

Size of motor starters according to NEMA, max.5

Digital output functions, parameterizable

Switching tripped by comparison valuesNo

Freely usable digital outputNo

PWM outputNo

Digital output with oversamplingNo

Switching capacity of the outputs

with resistive load, max.2 A

on lamp load, max.50 W (230 V AC), 5 W (24 V DC)

Output current

for signal "1" rated value2 A

for signal "1" permissible range, min.10 mA; 10 V

for signal "1" permissible range, max.2 A; thermal continuous current

for signal "0" residual current, max.0 A

Parallel switching of two outputs

for logic linksYes

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.1 Hz

with inductive load, max.0.5 Hz

on lamp load, max.1 Hz

Total current of the outputs

Current per channel, max.2 A; see additional description in the manual

Current per group, max.4 A; see additional description in the manual

Current per module, max.32 A; see additional description in the manual

Relay outputs

Number of relay outputs16

Rated supply voltage of relay coil L+ (DC)24 V

Current consumption of relays (coil current of all relays), typ.150 mA

external protection for relay outputsMiniature circuit breaker B10 / B16

Contact connection (internal)No

Number of operating cycles, max.see additional description in the manual

Switching capacity of contacts

— with inductive load, max.2 A; see additional description in the manual

— with resistive load, max.2 A; see additional description in the manual

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

Diagnostics functionNo

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Maintenance interruptYes; maintenance alarm for switching cycle counter

Diagnoses

Monitoring the supply voltageYes

Wire breakNo

Short-circuitNo

Group errorNo

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)Yes; green LED

Channel status displayYes; green LED

for channel diagnosticsNo

for module diagnosticsYes; red LED

Potential separation channels

between the channelsNo

between the channels, in groups of2

between the channels and backplane busYes

Between the channels and load voltage L+Yes

Permissible potential difference

between different circuits250 V AC between the channels and the supply voltage L+; 250 V AC between the channels and the backplane bus; 500 V AC between the channels

Isolation

Isolation tested withBetween channels: 3 100 V DC; between channels backplane bus: 3 100 V DC; between L+ and backplane bus: 707 V DC (type test)

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

Suitable for safety functionsNo

Suitable for safety-related tripping of standard modulesYes; From FS02

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]43.8 kg

— global warming potential, (during production) [CO2 eq]9.5 kg

— global warming potential, (during operation) [CO2 eq]34.5 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.231 kg

Highest safety class achievable for safety-related tripping of standard modules

Performance level according to ISO 13849-1PL c

Category according to ISO 13849-1Cat. 2

SIL acc. to IEC 62061SIL 1

Security

signed firmware updateYes; Firmware V3.0.0 or higher

securely removing dataNo

data integrityYes; Firmware V3.0.0 or higher

Ambient temperature during operation

horizontal installation, min.-25 °C; From FS02

horizontal installation, max.60 °C

vertical installation, min.-25 °C; From FS02

vertical installation, max.40 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.350 g

Accessories 14

Genuine accessories that can be used with the Siemens 6ES7522-5HH00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7592-1AM00-0XB0	Aksesuar · Connection plug
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7590-0BD00-0AA0	Aksesuar · Rack
6ES7590-0BH00-0AA0	Aksesuar · Rack
6ES7590-0BL00-0AA0	Aksesuar · Rack
6ES7590-0AA00-0AA0	Yedek parça · spare part
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7592-2AX00-0AA0	Yedek parça · label
6ES7592-1BM00-0XB0	Zorunlu ek ürün · Connection plug
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
