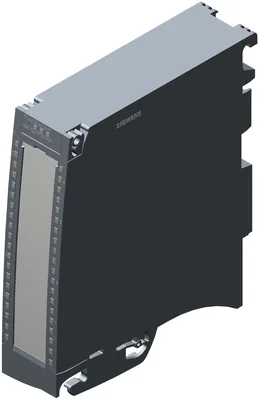

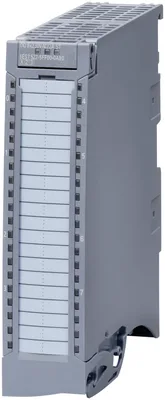

Siemens 6ES7522-5FF00-0AB0

SIMATIC S7-1500/ET 200MP, digital output module, DQ 8x230 V AC/2 A ST (Triac) (35 mm); 8 channels in groups of 1; 2 A per group (2 A per channel); triac outputs; substitute value; incl. U-connector (without front connector)

SiemensMFR # 6ES7522-5FF00-0AB0SKU # CEY-937FC77EDA4F

Product type designationDQ 8x230 V AC/2A ST (triac)

HW functional statusfrom FS01

Firmware versionV2.3.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7522-5FF00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDQ 8x230 V AC/2A ST (triac)

HW functional statusfrom FS01

Firmware versionV2.3.0

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Prioritized startupYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV12 / V12

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionV1.0 / V5.1

PROFINET from GSD version/GSD revisionV2.3 / -

Operating mode

DQYes

DQ with energy-saving functionNo

PWMNo

Cam control (switching at comparison values)No

OversamplingNo

MSOYes

Integrated operating cycle counterYes; FW V2.3.0 or higher

Output voltage

Rated value (AC)230 V; 120/230 V AC, 50/60 Hz

Power

Power consumption from the backplane bus0.9 W

Power loss

Power loss, typ.10.8 W

Address space per module

Inputs0 byte; typical, maximum 7 bytes, see manual for details

Outputs1 byte

Digital outputs

Type of digital outputTriac

Number of digital outputs8

Current-sinkingNo

Current-sourcingYes

Digital outputs, parameterizableYes

Short-circuit protectionNo

built-in fuse6.3 A melting fuse, slow-blow

Size of motor starters according to NEMA, max.5

Digital output functions, parameterizable

Switching tripped by comparison valuesNo

Freely usable digital outputNo

PWM outputNo

Digital output with oversamplingNo

Switching capacity of the outputs

with resistive load, max.2 A

on lamp load, max.50 W

Output voltage

for signal "1", min.L1 (-1.5 V) at maximum output current; L1 (-8.5 V) at minimum output current

Output current

for signal "1" rated value2 A

for signal "1" permissible range, min.10 mA

for signal "1" permissible range, max.15 A; max. 1 AC cycle

for signal "0" residual current, max.2 mA

Output delay with resistive load

"0" to "1", max.1 AC cycle

"1" to "0", max.1 AC cycle

Parallel switching of two outputs

for logic linksNo

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.10 Hz

with inductive load, max.0.5 Hz

on lamp load, max.1 Hz

Total current of the outputs

Current per channel, max.2 A; see additional description in the manual

Current per group, max.2 A; see additional description in the manual

Current per module, max.10 A; see additional description in the manual

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

Diagnostics functionNo

Substitute values connectableYes

Alarms

Diagnostic alarmNo

Maintenance interruptYes; maintenance alarm for switching cycle counter

Diagnoses

Monitoring the supply voltageNo

Wire breakNo

short-circuitNo

Group errorNo

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)No

Channel status displayYes; green LED

for channel diagnosticsNo

for module diagnosticsYes; red LED

Potential separation channels

between the channelsYes

between the channels, in groups of1

between the channels and backplane busYes

Between the channels and load voltage L1Yes

Permissible potential difference

between different circuits250 V AC between the channels and the backplane bus; 500 V AC between the channels

Isolation

Isolation tested with3 100 V DC

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

Suitable for safety functionsNo

Suitable for safety-related tripping of standard modulesNo

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]43.8 kg

— global warming potential, (during production) [CO2 eq]9.5 kg

— global warming potential, (during operation) [CO2 eq]34.5 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.231 kg

Security

signed firmware updateYes; Firmware V3.0.0 or higher

safely removing dataNo

data integrityYes; Firmware V3.0.0 or higher

Ambient temperature during operation

horizontal installation, min.-25 °C; From FS05

horizontal installation, max.60 °C

vertical installation, min.-25 °C; From FS05

vertical installation, max.40 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.290 g
