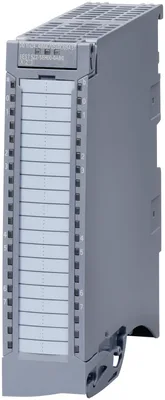

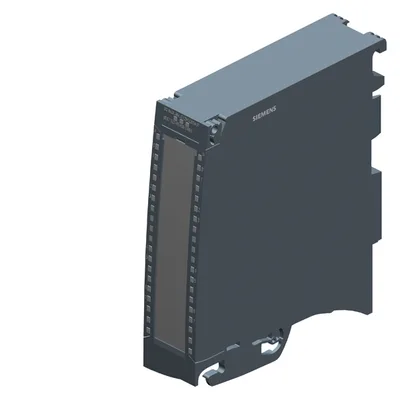

Siemens 6ES7522-5EH00-0AB0

SIMATIC S7-1500/ET 200MP, digital output module, DQ 16x24...48 V UC/125 V DC/0.5 A ST (35 mm); sourcing or sinking output (for DC, depending on wiring); 16 channels in groups of 1; 0.5 A per group (0.5 A per channel); diagnostics; substitute value; observe derating; safety-oriented shutdown of load groups up to SIL 2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015; incl. U-connector (without front connector)

SiemensMFR # 6ES7522-5EH00-0AB0SKU # CEY-8EF3B0386976

Product type designationDQ 16x24 ... 48 V UC/125 V DC/0.5 A ST

HW functional statusfrom FS01

Firmware versionfrom V1.0.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7522-5EH00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDQ 16x24 ... 48 V UC/125 V DC/0.5 A ST

HW functional statusfrom FS01

Firmware versionfrom V1.0.0

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Prioritized startupYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV13 SP1 / -

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionV1.0 / V5.1

PROFINET from GSD version/GSD revisionV2.3 / -

Operating mode

DQYes

DQ with energy-saving functionNo

PWMNo

Cam control (switching at comparison values)No

OversamplingNo

MSOYes

Integrated operating cycle counterYes; FW V1.1.0 or higher

Output voltage

Rated value (DC)24 V; 48 V, 125 V

Rated value (AC)24 V; 48 V (50 - 60 Hz)

Power

Power consumption from the backplane bus2 W

Power loss

Power loss, typ.3.8 W

Address space per module

Inputs0 byte; typical, maximum 14 bytes, see manual for details

Outputs2 byte

Digital outputs

Type of digital outputTransistor

Number of digital outputs16

Current-sinkingYes

Current-sourcingYes

Digital outputs, parameterizableYes

Short-circuit protectionNo

Limitation of inductive shutdown voltage to200 V (suppressor diode)

Controlling a digital inputYes

Digital output functions, parameterizable

Switching tripped by comparison valuesNo

Freely usable digital outputNo

PWM outputNo

Digital output with oversamplingNo

Switching capacity of the outputs

with resistive load, max.0.5 A

on lamp load, max.40 W; At 125 V DC, 10 W at 48 V UC, 5 W at 24 V UC

Output voltage

for signal "1", min.L+ (-1.0 V)

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range, max.0.6 A

Output delay with resistive load

"0" to "1", max.5 ms

"1" to "0", max.5 ms

Parallel switching of two outputs

for logic linksYes

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.25 Hz

with inductive load, max.0.5 Hz

on lamp load, max.10 Hz

Total current of the outputs

Current per channel, max.0.5 A

Current per group, max.0.5 A

Current per module, max.8 A

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

Diagnostics functionNo

Substitute values connectableYes

Alarms

Diagnostic alarmNo

Maintenance interruptYes; maintenance alarm for switching cycle counter

Diagnoses

Monitoring the supply voltageNo

Wire breakNo

Short-circuitNo

Group errorNo

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)No

Channel status displayYes; green LED

for channel diagnosticsNo

for module diagnosticsYes; red LED

Potential separation channels

between the channelsYes

between the channels, in groups of1

between the channels and backplane busYes

Permissible potential difference

between different circuits125 V DC/48 V AC

Isolation

Isolation tested with2 000 V DC

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

Suitable for safety functionsNo

Suitable for safety-related tripping of standard modulesYes; From FS02

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]43.8 kg

— global warming potential, (during production) [CO2 eq]9.5 kg

— global warming potential, (during operation) [CO2 eq]34.5 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.231 kg

Highest safety class achievable for safety-related tripping of standard modules

Performance level according to ISO 13849-1PL d

Category according to ISO 13849-1Cat. 3

SIL acc. to IEC 62061SIL 2

Security

signed firmware updateYes

securely removing dataNo

data integrityNo

Ambient temperature during operation

horizontal installation, min.-25 °C; From FS05

horizontal installation, max.60 °C

vertical installation, min.-25 °C; From FS05

vertical installation, max.40 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.230 g

Accessories 14

Genuine accessories that can be used with the Siemens 6ES7522-5EH00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7592-1AM00-0XB0	Aksesuar · Connection plug
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7590-0BD00-0AA0	Aksesuar · Rack
6ES7590-0BH00-0AA0	Aksesuar · Rack
6ES7590-0BL00-0AA0	Aksesuar · Rack
6ES7590-0AA00-0AA0	Yedek parça · spare part
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7592-2AX00-0AA0	Yedek parça · label
6ES7592-1BM00-0XB0	Zorunlu ek ürün · Connection plug
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
