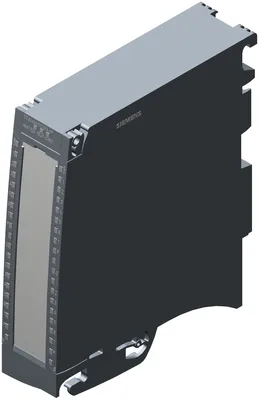

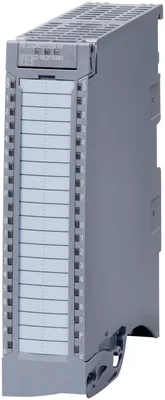

Siemens 6ES7522-1BL01-0AB0

SIMATIC S7-1500/ET 200MP, digital output module, DQ 32x24 V DC/0.5 A HF (35 mm); sourcing output; 32 channels in groups of 8; 4 A per group (0.5 A per channel); single-channel diagnostics; substitute value; switching cycle counter for connected actuators; safety-oriented shutdown of load groups up to SIL 2 according to EN IEC 62061:2021 and Category 3 / PL d according to EN ISO 13849-1:2015; incl. U-connector (without front connector)

SiemensMFR # 6ES7522-1BL01-0AB0SKU # CEY-937FC7803D47

Product type designationDQ 32x24VDC/0.5A HF

HW functional statusFrom FS02

Firmware versionV1.1.0

I&M dataYes; I&M0 to I&M3

Isochronous modeYes

Prioritized startupYes

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7522-1BL01-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDQ 32x24VDC/0.5A HF

HW functional statusFrom FS02

Firmware versionV1.1.0

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeYes

Prioritized startupYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV13 SP1 / -

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionV1.0 / V5.1

PROFINET from GSD version/GSD revisionV2.3 / -

Operating mode

DQYes

DQ with energy-saving functionNo

PWMNo

Cam control (switching at comparison values)No

OversamplingNo

MSOYes

Integrated operating cycle counterYes

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes; through internal protection with 7 A per group

Input current

Current consumption, max.60 mA

Output voltage

Rated value (DC)24 V

Power

Power consumption from the backplane bus1.1 W

Power loss

Power loss, typ.3.5 W

Address space per module

Inputs0 byte; typical, maximum 28 bytes, see manual for details

Outputs4 byte

Digital outputs

Type of digital outputTransistor

Number of digital outputs32

Current-sinkingNo

Current-sourcingYes

Digital outputs, parameterizableYes

output type acc. to IEC 61131, type 0.5Yes

Short-circuit protectionYes; Clocked electronically

Response threshold, typ.1 A

Limitation of inductive shutdown voltage toL+ (-53 V)

Controlling a digital inputYes

Digital output functions, parameterizable

Switching tripped by comparison valuesNo

Digital output with oversamplingNo

Switching capacity of the outputs

with resistive load, max.0.5 A

on lamp load, max.5 W

Load resistance range

lower limit48 Ω

upper limit12 kΩ

Output voltage

for signal "1", min.L+ (-0.8 V)

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range, max.0.5 A

for signal "0" residual current, max.0.5 mA

Output delay with resistive load

"0" to "1", max.100 µs

"1" to "0", max.500 µs

Parallel switching of two outputs

for logic linksYes

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.5 Hz; According to IEC 60947-5-1, DC-13

on lamp load, max.10 Hz

Total current of the outputs

Current per channel, max.0.5 A; see additional description in the manual

Current per group, max.4 A; see additional description in the manual

Current per module, max.16 A; see additional description in the manual

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Isochronous mode

Execution and activation time (TCO), min.70 µs

Bus cycle time (TDP), min.250 µs

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Maintenance interruptYes; maintenance alarm for switching cycle counter

Diagnoses

Monitoring the supply voltageYes

Wire breakYes

Short-circuitYes

Group errorYes

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)Yes; green LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; red LED

Potential separation channels

between the channelsNo

between the channels, in groups of8

between the channels and backplane busYes

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

Suitable for safety functionsNo

Suitable for safety-related tripping of standard modulesYes; From FS02

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]43.8 kg

— global warming potential, (during production) [CO2 eq]9.5 kg

— global warming potential, (during operation) [CO2 eq]34.5 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.231 kg

Highest safety class achievable for safety-related tripping of standard modules

Performance level according to ISO 13849-1PL d

Category according to ISO 13849-1Cat. 3

SIL acc. to IEC 62061SIL 2

Security

signed firmware updateYes; Firmware V3.0.0 or higher

securely removing dataNo

data integrityYes; Firmware V3.0.0 or higher

Ambient temperature during operation

horizontal installation, min.-30 °C; From FS03

horizontal installation, max.60 °C

vertical installation, min.-30 °C; From FS03

vertical installation, max.40 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.280 g
