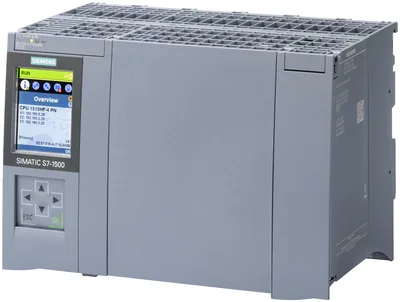

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

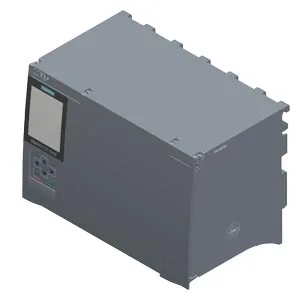

Siemens 6ES7518-4JT10-0AB0

SIMATIC S7-1500H, CPU 1518HF-4 PN, central processing unit with 18 MB work memory for program and 150 MB for data, 1st interface: PROFINET RT with 2-port switch, 2nd interface: PROFINET with 2-port switch, 3rd interface: PROFINET, 4th/5th interface: H-SYNC, SIMATIC Memory Card required

SiemensMFR # 6ES7518-4JT10-0AB0SKU # YLSLGBI0KUWVBC

Product type designationCPU 1518HF-4 PN

HW functional statusFS02

Firmware versionV4.1

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7518-4JT10-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCPU 1518HF-4 PN

HW functional statusFS02

Firmware versionV4.1

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

SysLogYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV21 (FW V4.1) / V20 (FW V4.0) or higher

Redundancy

stand-alone operationNo

CiR - Configuration in RUN

Configuration in Run (CiR) possibleYes; V21.0 (FW V4.1) CiR functions: adding an IO device; reparameterizing an I/O module

Display

Screen diagonal [cm]6.1 cm

Control elements

Number of keys8

Mode buttons2

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Mains buffering

Mains/voltage failure stored energy time5 ms

Repeat rate, min.1/s

Input current

Current consumption (rated value)1.3 A

Current consumption, max.1.9 A

Inrush current, max.1.9 A; Rated value

I²t0.5 A²·s

Power

Infeed power to the backplane bus12 W

Power consumption from the backplane bus (balanced)30 W

Power loss

Power loss, typ.19.7 W

Storage

Number of slots for SIMATIC memory card1

SIMATIC memory card requiredYes

Work memory

integrated (for program)18 Mbyte

integrated (for data)150 Mbyte

Load memory

Plug-in (SIMATIC Memory Card), max.32 Gbyte

Backup

maintenance-freeYes

CPU processing times

for bit operations, typ.1 ns

for word operations, typ.2 ns

for fixed point arithmetic, typ.2 ns

for floating point arithmetic, typ.8 ns

CPU-blocks

Number of elements (total)40 000; Blocks (OB, FB, FC, DB) and UDTs

Number range1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 999

Size, max.16 Mbyte; For DBs with absolute addressing, the max. size is 64 KB

Number range0 ... 65 535

Size, max.1 Mbyte

Number range0 ... 65 535

Size, max.1 Mbyte

Number of free cycle OBs100

Number of time alarm OBs20

Number of delay alarm OBs20

Number of cyclic interrupt OBs20; with minimum OB 3x cycle of 1 ms

Number of process alarm OBs50

Number of DPV1 alarm OBs3

Number of startup OBs100

Number of asynchronous error OBs4

Number of synchronous error OBs2

Number of diagnostic alarm OBs1

Nesting depth

per priority class24; Up to 8 possible for F-blocks

S7 counter

Number2 048

Retentivity

— adjustableYes

IEC counter

NumberAny (only limited by the main memory)

Retentivity

— adjustableYes

S7 timer

Number2 048

Retentivity

— adjustableYes

IEC timer

NumberAny (only limited by the main memory)

Retentivity

— can be setYes

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.4.5 Mbyte; in total; for bit memories, timers, counters, DBs, and technology data (axes)

Extended retentive data area (incl. timers, counters, flags), max.100 Mbyte; When using PS 6 0W 24/48/60 V DC HF

Flag

Size, max.16 kbyte

Number of clock memories8; 8 clock memory bit, grouped into one clock memory byte

Data blocks

Retentivity adjustableYes

Retentivity presetNo

Local data

per priority class, max.64 kbyte; max. 16 KB per block

Address area

Number of IO modules8 192; max. number of modules / submodules

I/O address area

Inputs32 kbyte; All inputs are in the process image

Outputs32 kbyte; All outputs are in the process image

per integrated IO subsystem

— Inputs (volume)16 kbyte

— Outputs (volume)16 kbyte

Subprocess images

Number of subprocess images, max.31

Hardware configuration

Number of distributed IO systems64; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET, but also by the connection of I/O via IE/PB-Links.

Number of IO Controllers

Integrated1

Rack

Modules per rack, max.9; CPU + 2 PS + 6 CP

Clock

TypeHardware clock

Backup time6 wk; At 40 °C ambient temperature, typically

Deviation per day, max.10 s; Typ.: 2 s

Operating hours counter

Number64

Clock synchronization

supportedYes

on Ethernet via NTPYes

Interfaces

Number of PROFINET interfaces3

Interface types

RJ 45 (Ethernet)Yes; X1

Number of ports2

integrated switchYes

Protocols

IP protocolYes; IPv4

PROFINET IO ControllerYes

PROFINET IO deviceNo

SIMATIC communicationYes; Only Server

Open IE communicationYes; Optionally also encrypted

Web serverYes

Media redundancyYes

Services

— Isochronous modeNo

— IRTNo

— Dynamic Frame Packing (DFP)No

— PROFIenergyYes; per user program

— Prioritized startupNo

— Number of connectable IO Devices, max.512

— Updating timesThe minimum value of the update time also depends on communication share set for PROFINET IO, on the number of IO devices, and on the quantity of configured user data

Update time for RT

— for send cycle of 1 ms1 ms to 512 ms

Interface types

RJ 45 (Ethernet)Yes; X2

Number of ports2

integrated switchYes

Protocols

IP protocolYes; IPv4

PROFINET IO ControllerNo

PROFINET IO DeviceNo

SIMATIC communicationYes; Only Server

Open IE communicationYes; Optionally also encrypted

Web serverYes

Media redundancyNo

Interface types

RJ 45 (Ethernet)Yes; X3

Number of ports1

integrated switchNo

Protocols

IP protocolYes; IPv4

PROFINET IO ControllerNo

PROFINET IO deviceNo

SIMATIC communicationYes; Only Server

Open IE communicationYes; Optionally also encrypted

Web serverYes

4. Interface

Interface typePluggable synchronization submodule (FO)

Plug-in interface modulesSynchronization module 6ES7960-1CB00-0AA5, 6ES7960-1FB00-0AA5 or 6ES7960-1FE00-0AA5

5. Interface

Interface typePluggable synchronization submodule (FO)

Plug-in interface modulesSynchronization module 6ES7960-1CB00-0AA5, 6ES7960-1FB00-0AA5 or 6ES7960-1FE00-0AA5

RJ 45 (Ethernet)

100 MbpsYes

1000 MbpsYes; Only possible at the X3 interface of the CPU 1518

AutonegotiationYes

AutocrossingYes

Industrial Ethernet status LEDYes

Protocols

PROFIsafeYes; V2.4 / V2.6

Number of connections

Number of connections, max.384; via integrated interfaces of the CPU and connected CPs

Number of connections reserved for ES/HMI/web10

Number of connections via integrated interfaces320

Number of S7 routing paths64

Redundancy mode

PROFINET system redundancy (S2)Yes

PROFINET system redundancy (R1)Yes

Media redundancy

— Media redundancyYes; only via 1st interface (X1)

— MRPYes; MRP Automanager according to IEC 62439-2 Edition 2.0

— MRP interconnection, supportedYes; as MRP ring node according to IEC 62439-2 Edition 3.0

— MRPDNo

— Switchover time on line break, typ.200 ms; PROFINET MRP

— Number of stations in the ring, max.50

SIMATIC communication

PG/OP communicationYes; encryption with TLS V1.3 pre-selected

S7 routingYes

S7 communication, as serverYes

S7 communication, as clientNo

Open IE communication

TCP/IPYes

— Data length, max.64 kbyte

— several passive connections per port, supportedYes

ISO-on-TCP (RFC1006)Yes

— Data length, max.64 kbyte

UDPYes

— Data length, max.2 kbyte; 1 472 bytes for UDP broadcast

— UDP multicastYes; max. 128 multicast circuits

DHCPNo

DNSYes

SNMPYes

DCPYes

LLDPYes

EncryptionYes; Optional

Web server

HTTPNo

HTTPSYes; standard pages

web APIYes

— Number of sessions, max.200

— number of simultaneous HTTP calls, max.4

— HTTP request body, max.131 072 byte

OPC UA

Runtime license requiredYes; "Large" license required per CPU

OPC UA ClientNo

OPC UA ServerYes; data access (read, write, subscribe), method call, custom address space, role-based access control

— Application authenticationYes

— Security policiesavailable security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256, Aes128Sha256RsaOaep, Aes256Sha256RsaPss

— User authentication"anonymous" or by user name & password

— GDS support (certificate management)Yes

— Number of sessions, max.32

— Number of subscriptions per session, max.25

— Sampling interval, min.25 ms

— Publishing interval, min.25 ms

— Number of server methods, max.4 000; max. 100 concurrently running jobs each for asynchronous instructions OPC_UA_ServerMethodPre (V1.1) and OPC_UA_ServerMethodPost (V1.1)

— Number of inputs/outputs per server method, max.20

— Number of monitored items, recommended max.30 000; for 1 s sampling interval and 1 s send interval

— Number of server interfaces, max.10 of each "Server interfaces" / "Companion specification" type and 20 of the type "Reference namespace"

— Number of nodes for user-defined server interfaces, max.200 000

Alarms and ConditionsNo

Further protocols

MODBUSYes; MODBUS TCP

S7 message functions

Number of login stations for message functions, max.64

number of subscriptions, max.750

number of tags/attributes for subscriptions, max.120 000

Program alarmsYes

Number of configurable program messages, max.20 000; Program messages are generated by the "Program_Alarm" block, ProDiag or GRAPH

Number of loadable program messages in RUN, max.20 000

Number of program alarms4 000

Number of alarms for system diagnostics1 000

Test commissioning functions

Joint commission (Team Engineering)Yes; Parallel online access possible for up to 10 engineering systems

Status blockYes; Up to 16 simultaneously

Single stepNo

Number of breakpoints20; Breakpoints are only supported in RUN-Solo status

ProfilingYes

Status/control

Status/control variableYes; without fail-safe

Variablesinputs/outputs, bit memories, DBs, peripheral I/Os (without fail-safe), times, counters

— of which status variables, max.200; per job

— of which control variables, max.200; per job

Forcing

ForcingYes; without fail-safe

Forcing, variablesperipheral inputs/outputs (without fail-safe)

Number of variables, max.200

Diagnostic buffer

presentYes

Number of entries, max.3 200

— of which powerfail-proof1 000

Traces

Number of configurable Traces8

Memory size per trace, max.512 kbyte

Diagnostics indication LED

RUN/STOP LEDYes

ERROR LEDYes

MAINT LEDYes

STOP ACTIVE LEDYes

Connection display LINK TX/RXYes

Supported technology objects

Motion ControlNo

PID_CompactYes; Universal PID controller with integrated optimization

PID_3StepYes; PID controller with integrated optimization for valves

PID-TempYes; PID controller with integrated optimization for temperature

Counting and measuringYes

Global warming potential

— global warming potential, (total) [CO2 eq]488 kg

— global warming potential, (during production) [CO2 eq]78.3 kg

— global warming potential, (during operation) [CO2 eq]417 kg

— global warming potential, (after end of life cycle) [CO2 eq]-8.21 kg

Highest safety class achievable in safety mode

Performance level according to ISO 13849-1PLe

SIL acc. to IEC 61508SIL 3

Probability of failure (for service life of 20 years and repair time of 100 hours)

— Low demand mode: PFDavg in accordance with SIL3< 2.00E-05

— High demand/continuous mode: PFH in accordance with SIL3< 1.00E-09

Security

PROFINET Security Class1

signed firmware updateYes

Secure BootYes

securely removing dataYes

Ambient temperature during operation

horizontal installation, min.0 °C

horizontal installation, max.60 °C; Display: 50 °C, at an operating temperature of typically 50 °C, the display is switched off

vertical installation, min.0 °C

vertical installation, max.40 °C; Display: 40 °C, at an operating temperature of typically 40 °C, the display is switched off

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Programming language

— LADYes; incl. failsafe

— FBDYes; incl. failsafe

— STLYes

— SCLYes

— CFCYes; either CFC or failsafe functionality

— GRAPHYes

Know-how protection

User program protection/password protectionYes

Copy protectionNo

Block protectionYes

Access protection

protection of confidential configuration dataYes

Password for displayYes

Protection level: Write protectionYes

Protection level: Read/write protectionYes

Protection level: Write protection for FailsafeYes

Protection level: Complete protectionYes

User administrationYes; device-wide and centralized

Number of users100

Number of groups100

Number of roles50

Cycle time monitoring

lower limitadjustable minimum cycle time

upper limitadjustable maximum cycle time

Dimensions

Width210 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.1 806 g; Interface modules: 2x 18 g

Accessories 14

Genuine accessories that can be used with the Siemens 6ES7518-4JT10-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7592-1AM00-0XB0	Aksesuar · Connection plug
6ES7590-1AB60-0AA0	Aksesuar · Mounting rail
6ES7590-1AC40-0AA0	Aksesuar · Mounting rail
6ES7590-1AF30-0AA0	Aksesuar · Mounting rail
6ES7590-1AJ30-0AA0	Aksesuar · Mounting rail
6ES7590-1BC00-0AA0	Aksesuar · Mounting rail
6ES7590-0BD00-0AA0	Aksesuar · Rack
6ES7590-0BH00-0AA0	Aksesuar · Rack
6ES7590-0BL00-0AA0	Aksesuar · Rack
6ES7590-0AA00-0AA0	Yedek parça · spare part
6ES7528-0AA00-7AA0	Yedek parça · spare part
6ES7592-2AX00-0AA0	Yedek parça · label
6ES7592-1BM00-0XB0	Zorunlu ek ürün · Connection plug
6ES7590-1AE80-0AA0	Zorunlu ek ürün · Mounting rail
