How can I get a price quote for Siemens 6ES7223-3BD30-0XB0?

You can request a fast quote for Siemens 6ES7223-3BD30-0XB0 from Yılsa Engineering. Reference part number CEY-8EF3B0302CD9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7223-3BD30-0XB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7223-3BD30-0XB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7223-3BD30-0XB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

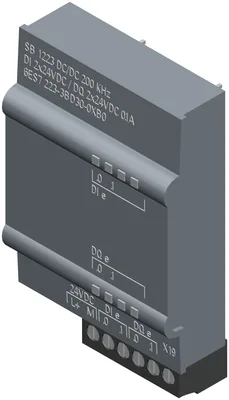

Siemens 6ES7223-3BD30-0XB0

SIMATIC S7-1200, Digital I/O SB 1223, 2 DI/2 DQ, 24 V DC 200 kHz

SiemensMFR # 6ES7223-3BD30-0XB0SKU # CEY-8EF3B0302CD9

from backplane bus 5 V DC, typ.35 mA

Power loss, typ.0.5 W

Number of digital inputs2; Current-sourcing

in groups of2

— up to 40 °C, max.2

Rated value (DC)24 V

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1200, Digital I/O SB 1223, 2 DI/2 DQ, 24 V DC 200 kHz

Siemens 6ES7223-3BD30-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSB 1223, DI 2x24 V DC/DQ 2x24 V DC 200 kHz

Input current

from backplane bus 5 V DC, typ.35 mA

Power loss

Power loss, typ.0.5 W

Digital inputs

Number of digital inputs2; Current-sourcing

in groups of2

all mounting positions

— up to 40 °C, max.2

Input voltage

Rated value (DC)24 V

for signal "0"(L+ minus 5.0 V DC) ... L+

for signal "1"0 V ... (L+ minus 10 V DC)

Input current

for signal "0", max. (permissible quiescent current)1.4 mA

for signal "1", min.2.9 mA

for signal "1", typ.7 mA

for standard inputs

— parameterizableYes; 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 μs; 0.05 / 0.1 / 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / 10.0 / 12.8 / 20.0 ms

for interrupt inputs

— ParameterizableYes

for technological functions

— ParameterizableYes

Cable length

shielded, max.50 m; shielded, twisted pair

Digital outputs

Number of digital outputs2; MOSFET, solid-state (current-sinking/current-sourcing)

in groups of2

Short-circuit protectionNo

Switching capacity of the outputs

with resistive load, max.0.1 A

Output voltage

Rated value (DC)24 V

for signal "0", max.1 V

for signal "1", min.L+ (-1.5 V)

Output current

for signal "1" rated value0.1 A

for signal "1" permissible range, max.0.1 A

Cable length

shielded, max.50 m

Diagnostics indication LED

for status of the inputsYes

for status of the outputsYes

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

cULusYes

FM approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes

Marine approvalYes

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

min.-20 °C

max.60 °C

horizontal installation, min.-20 °C

horizontal installation, max.60 °C

vertical installation, min.-20 °C

vertical installation, max.50 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Storage/transport, min.660 hPa

Storage/transport, max.1 080 hPa

Relative humidity

Operation at 25 ℃ without condensation, max.95 %

Mechanics/material

PlasticYes

Dimensions

Width38 mm

Height62 mm

Depth21 mm

Weights

Weight, approx.35 g

Accessories 8

Genuine accessories that can be used with the Siemens 6ES7223-3BD30-0XB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RQ4038-1AB00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
3RQ4038-2AB00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
3RQ4118-2AM00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
3RQ4118-1AM00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
6ES7292-1BF30-0XA0	Yedek parça · spare part
6ES7212-1AE40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
6ES7212-1BE40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
6ES7212-1HE40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
