Siemens 6ES7223-1QH32-0XB0

SIMATIC S7-1200, Digital I/O SM 1223, 8 DI AC/8 DO RLY, 8 DI 120/230 V AC, 8 DO relay 2 A

SiemensMFR # 6ES7223-1QH32-0XB0SKU # CEY-937FC780AEB5

Product type designationSM 1223, DI 8x120/230 V AC, DQ 8x relay

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.120 mA

presentYes

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1200, Digital I/O SM 1223, 8 DI AC/8 DO RLY, 8 DI 120/230 V AC, 8 DO relay 2 A

Siemens 6ES7223-1QH32-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSM 1223, DI 8x120/230 V AC, DQ 8x relay

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from backplane bus 5 V DC, max.120 mA

Power supply to the transmitters

presentYes

Power loss

Power loss, typ.7.5 W

Digital inputs

Number of digital inputs8

in groups of4

Input characteristic curve in accordance with IEC 61131, type 1Yes

all mounting positions

— up to 40 °C, max.8

horizontal installation

— up to 40 °C, max.8

— up to 50 °C, max.8

vertical installation

— up to 40 °C, max.8

Input voltage

Rated value (AC)120/230 V AC

for signal "0"20 V AC at 1 mA

for signal "1"79 V AC at 2.5 mA

Input current

for signal "0", max. (permissible quiescent current)1 mA

for signal "1", min.2.5 mA

for signal "1", typ.9 mA

for standard inputs

— parameterizableYes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four

for interrupt inputs

— parameterizableYes

Cable length

shielded, max.500 m

unshielded, max.300 m

Digital outputs

Number of digital outputs8

in groups of4

Short-circuit protectionNo; to be provided externally

Switching capacity of the outputs

with resistive load, max.2 A

on lamp load, max.30 W with DC, 200 W with AC

Output voltage

Rated value (DC)5 V DC to 30 V DC

Rated value (AC)5 V AC to 250 V AC

Output current

for signal "1" rated value2 A

for signal "1" permissible range, max.2 A

Output delay with resistive load

"0" to "1", max.10 ms

"1" to "0", max.10 ms

horizontal installation

— up to 50 °C, max.8 A; Current per mass

Relay outputs

Number of relay outputs8

Rated supply voltage of relay coil L+ (DC)24 V

Number of operating cycles, max.mechanically 10 million, at rated load voltage 100 000

Switching capacity of contacts

— with inductive load, max.2 A

— on lamp load, max.30 W with DC, 200 W with AC

— with resistive load, max.2 A

Cable length

shielded, max.500 m

unshielded, max.150 m

Alarms

Diagnostic alarmYes

Diagnostics indication LED

for status of the inputsYes

for status of the outputsYes

Potential separation digital inputs

between the channels, in groups of2

Potential separation digital outputs

between the channelsRelays

between the channels, in groups of2

between the channels and backplane bus1 500 V AC for 1 minute

Permissible potential difference

between different circuits750 V AC for 1 minute

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

cULusYes

FM approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes

Marine approvalYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]123 kg

— global warming potential, (during production) [CO2 eq]12.1 kg

— global warming potential, (during operation) [CO2 eq]111 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.434 kg

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

min.-20 °C

max.60 °C; Number of simultaneously activated outputs: 4 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 8 at 55 °C horizontal or 45 °C vertical

horizontal installation, min.-20 °C

horizontal installation, max.60 °C

vertical installation, min.-20 °C

vertical installation, max.50 °C

permissible temperature change5°C to 55°C, 3°C / minute

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Storage/transport, min.660 hPa

Storage/transport, max.1 080 hPa

Relative humidity

Operation at 25 ℃ without condensation, max.95 %

Connection method

required front connectorYes

Mechanics/material

PlasticYes

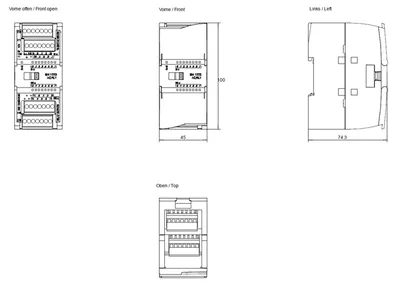

Dimensions

Width45 mm

Height100 mm

Depth75 mm

Weights

Weight, approx.230 g

Accessories 8

Genuine accessories that can be used with the Siemens 6ES7223-1QH32-0XB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RQ4038-1AB00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
3RQ4038-2AB00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
6ES7291-1BA30-0XA0	Yedek parça · spare part
6ES7292-1AG40-0XA0	Yedek parça · spare part
6ES7292-2AG40-0XA0	Yedek parça · spare part
6ES7212-1AE40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
6ES7212-1BE40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
6ES7212-1HE40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
