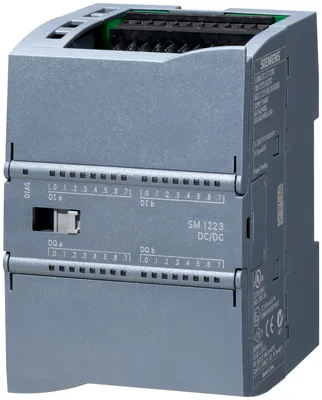

Photo may not represent actual item. Refer to name and product specs for all details.

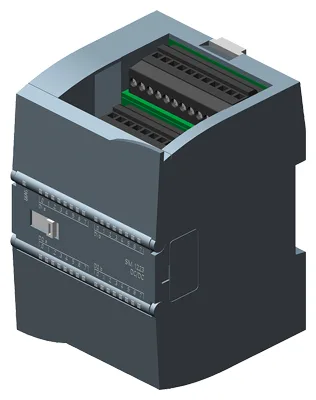

Siemens 6ES7223-1BL32-0XB0

SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, Sink/Source, 16 DO, transistor 0.5 A

SiemensMFR # 6ES7223-1BL32-0XB0SKU # CEY-937FC77F75E3

Product type designationSM 1223, DI 16x24 V DC, DQ 16x24 V DC

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.185 mA

presentYes

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1200, Digital I/O SM 1223, 16 DI/16 DO, 16 DI 24 V DC, Sink/Source, 16 DO, transistor 0.5 A

Siemens 6ES7223-1BL32-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSM 1223, DI 16x24 V DC, DQ 16x24 V DC

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from backplane bus 5 V DC, max.185 mA

Digital inputs

from load voltage L+ (without load), max.4 mA; per channel

Power supply to the transmitters

presentYes

Power loss

Power loss, typ.4.5 W

Digital inputs

Number of digital inputs16

in groups of2

Input characteristic curve in accordance with IEC 61131, type 1Yes

all mounting positions

— up to 40 °C, max.16

horizontal installation

— up to 40 °C, max.16

— up to 50 °C, max.16

vertical installation

— up to 40 °C, max.16

Input voltage

Rated value (DC)24 V

for signal "0"5 V DC at 1 mA

for signal "1"15 V DC at 2.5 mA

Input current

for signal "0", max. (permissible quiescent current)1 mA

for signal "1", min.2.5 mA

for signal "1", typ.4 mA

for standard inputs

— parameterizableYes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four

for interrupt inputs

— ParameterizableYes

Cable length

shielded, max.500 m

unshielded, max.300 m

Digital outputs

Number of digital outputs16

in groups of1

Short-circuit protectionNo; to be provided externally

Limitation of inductive shutdown voltage toL+ (-48 V)

Switching capacity of the outputs

with resistive load, max.0.5 A

on lamp load, max.5 W

Output voltage

Rated value (DC)24 V

for signal "0", max.0.1 V; with 10 kOhm load

for signal "1", min.20 V DC

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range, max.0.5 A

for signal "0" residual current, max.10 µA

Output delay with resistive load

"0" to "1", max.50 µs

"1" to "0", max.200 µs

horizontal installation

— up to 50 °C, max.8 A; Current per mass

Switching capacity of contacts

— with inductive load, max.0.5 A

— on lamp load, max.5 W

— with resistive load, max.0.5 A

Cable length

shielded, max.500 m

unshielded, max.150 m

Alarms

Diagnostic alarmYes

Diagnostics indication LED

for status of the inputsYes

for status of the outputsYes

Potential separation digital inputs

between the channels, in groups of2

Potential separation digital outputs

between the channels, in groups of1

between the channels and backplane bus500 V AC

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

cULusYes

FM approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes

Marine approvalYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]123 kg

— global warming potential, (during production) [CO2 eq]12.1 kg

— global warming potential, (during operation) [CO2 eq]111 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.434 kg

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

min.-20 °C

max.60 °C

horizontal installation, min.-20 °C

horizontal installation, max.60 °C

vertical installation, min.-20 °C

vertical installation, max.50 °C

permissible temperature change5°C to 55°C, 3°C / minute

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Storage/transport, min.660 hPa

Storage/transport, max.1 080 hPa

Relative humidity

Operation at 25 ℃ without condensation, max.95 %

Connection method

required front connectorYes

Mechanics/material

PlasticYes

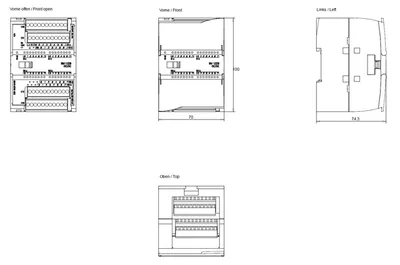

Dimensions

Width70 mm

Height100 mm

Depth75 mm

Weights

Weight, approx.310 g
