How can I get a price quote for Siemens 6ES7193-6TP00-0TN0?

You can request a fast quote for Siemens 6ES7193-6TP00-0TN0 from Yılsa Engineering. Reference part number YLS3FN4XWMTFWM3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7193-6TP00-0TN0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7193-6TP00-0TN0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7193-6TP00-0TN0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

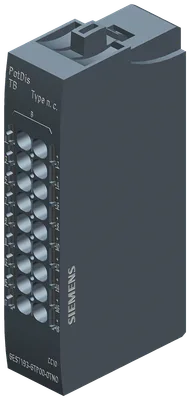

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6ES7193-6TP00-0TN0

SIMATIC ET 200SP, Potential distributor module, PotDis terminal block, PotDis-TB-n.c.-G, 18 x n.c.(not connected) Push-In terminals, no connection to P1, P2, AUX, Packaging Unit: 1 Piece,

SiemensMFR # 6ES7193-6TP00-0TN0SKU # YLS3FN4XWMTFWM3

Product type designationPotDis-TB-n.c.-G

HW functional statusFS10 and higher

for process terminals48 V; max.

for process terminals240 V; max.

up to 60 °C, max.10 A

For P1 and P2 bus, max.10 A

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, Potential distributor module, PotDis terminal block, PotDis-TB-n.c.-G, 18 x n.c.(not connected) Push-In terminals, no connection to P1, P2, AUX, Packaging Unit: 1 Piece,

Siemens 6ES7193-6TP00-0TN0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationPotDis-TB-n.c.-G

HW functional statusFS10 and higher

Color code for module-specific color-coded labelCC10

Supply voltage

for process terminals48 V; max.

for process terminals240 V; max.

external protection for power supply linesYes; 10 A miniature circuit breaker with type B or C tripping characteristic for the respective rated supply voltage

Current carrying capacity

up to 60 °C, max.10 A

For P1 and P2 bus, max.10 A

Potential separation

between process terminals and supply voltageYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]0.873 kg

— global warming potential, (during production) [CO2 eq]0.866 kg

— global warming potential, (during operation) [CO2 eq]0 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.0011 kg

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Color coding labels

for process terminalsCC10

Terminals

Terminal typePush-in terminal

Conductor cross-section, min.0.14 mm²; 0.2 mm² without wire end ferrule

Conductor cross-section, max.2.5 mm²; 1.5 mm² with wire end ferrule

Number of process terminals to I/O module16

Number of terminals to AUX bus0

Number of add-on terminals0

Number of terminals with connection to P1 and P2 bus2

Dimensions

Width15 mm

Height74 mm

Depth34 mm

Weights

Weight, approx.24 g

Accessories 5

Genuine accessories that can be used with the Siemens 6ES7193-6TP00-0TN0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7193-6CP10-2MT0	Aksesuar · label
6ES7193-6UP00-0BP1	Zorunlu ek ürün · BaseUnit
6ES7193-6UP00-0BP2	Zorunlu ek ürün · BaseUnit
6ES7193-6UP00-0DP1	Zorunlu ek ürün · BaseUnit
6ES7193-6UP00-0DP2	Zorunlu ek ürün · BaseUnit
