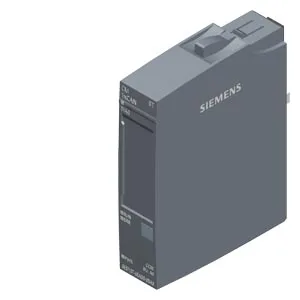

Siemens 6ES7137-6EA00-0BA0

ET 200SP, CM CAN Gateway to CAN or CANopen networks, CAN 2.0A/B, CANopen Manager to CiA301/302, CANopen Slave to CiA301/302, IP20

SiemensMFR # 6ES7137-6EA00-0BA0SKU # YLSRPUP2ZHNKPL1

Product type designationCM 1x CAN ST

Firmware versionV1.2.x

FW update possibleYes

usable BaseUnitsBU type A0

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

ET 200SP, CM CAN Gateway to CAN or CANopen networks, CAN 2.0A/B, CANopen Manager to CiA301/302, CANopen Slave to CiA301/302, IP20

Siemens 6ES7137-6EA00-0BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCM 1x CAN ST

Firmware versionV1.2.x

FW update possibleYes

usable BaseUnitsBU type A0

Color code for module-specific color-coded labelCC00

Product function

I&M dataYes; I&M0 to I&M3

Module swapping during operation (hot swapping)Yes

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V15.1 or higher

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, typ.20 mA

Current consumption, max.25 mA

Power loss

Power loss, typ.0.5 W

Address space per module

Address space per module, max.256 byte

1. Interface

Interface typeCAN according to CiA 303-1

IsolatedYes; 500 V AC or 707 V DC

Interface types

Number of ports1

Design of the connectionPush-in terminal

CAN

CAN operating modesCAN Standard CAN 2.0A/B; CANopen Manager / Slave acc. to CiA

Specification acc. to CiACiA 301 & CiA 302

Transmission rate, min.10 kbit/s

Transmission rate, max.1 000 kbit/s

max. number of devices60

Number of SDOs in parallel16; Parallel

Number of PDOs128; Send / receive

Services

— Node/life-guardingYes

— HeartbeatYes

— SYNCYes

Interrupts/diagnostics/status information

AlarmsYes

Diagnostics functionYes

Diagnostics indication LED

RUN LEDYes

ERROR LEDYes

MAINT LEDNo

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Potential separation

between backplane bus and interfaceYes

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

CE markYes

UL approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes; Reg. No.: R-R-S49-ET200SPCMCAN

EAC (formerly Gost-R)Yes

RoHS conformityYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]25.2 kg

— global warming potential, (during production) [CO2 eq]6.15 kg

— global warming potential, (during operation) [CO2 eq]19.4 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.289 kg

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Decentralized operation

to SIMATIC S7-300No

to SIMATIC S7-400No

to SIMATIC S7-1200Yes

to SIMATIC S7-1500Yes

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.32 g

Accessories 10

Genuine accessories that can be used with the Siemens 6ES7137-6EA00-0BA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7193-6KB00-3AA0	Yedek parça · spare part
6ES7193-6KA00-3AA0	Yedek parça · spare part
6ES7193-6BP20-2DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-2BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-2DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-2BA0	Zorunlu ek ürün · BaseUnit
