How can I get a price quote for Siemens 6ES7137-6AA01-0BA0?

You can request a fast quote for Siemens 6ES7137-6AA01-0BA0 from Yılsa Engineering. Reference part number CEY-937FC780B4DE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7137-6AA01-0BA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7137-6AA01-0BA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7137-6AA01-0BA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

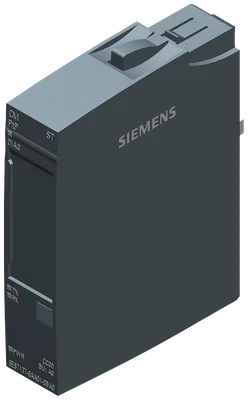

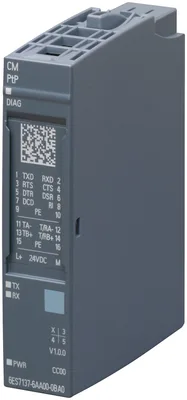

Siemens 6ES7137-6AA01-0BA0

SIMATIC ET 200SP, CM PTP communication module for serial connection RS-422, RS-485 and RS-232, freeport, 3964 (R), USS, MODBUS RTU master, slave, max. 250 Kbit/s, suitable for BU type A0, pack quantity: 1 unit

SiemensMFR # 6ES7137-6AA01-0BA0SKU # CEY-937FC780B4DE

Product type designationCM PtP

FW update possibleYes

usable BaseUnitsBU type A0

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

PROFIBUS from GSD version/GSD revisionGSD as of Revision 5

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7137-6AA01-0BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCM PtP

FW update possibleYes

usable BaseUnitsBU type A0

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V17 or higher

STEP 7 configurable/integrated from versionvia GSD as of V5.6 HF4

PROFIBUS from GSD version/GSD revisionGSD as of Revision 5

PROFINET from GSD version/GSD revisionGSDML V2.34

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption (rated value)31 mA

Current consumption, max.35 mA

Power loss

Power loss, typ.0.7 W

Address space per module

Address space per module, max.8 byte; performance mode: 32 byte

Inputs8 byte; performance mode: 32 byte

Outputs0 byte; performance mode: 32 byte

Hardware configuration

Automatic encodingYes

Mechanical coding elementYes

Type of mechanical coding elementtype D

Interface types

RS 485Yes

RS 422Yes

RS 232Yes

Design of the connectionPush-in terminal

RS 232

Transmission rate, max.115.2 kbit/s

Cable length, max.15 m

RS 232 auxiliary signalsRTS, CTS, DTR, DSR, RI, DCD

RS 485

Transmission rate, max.250 kbit/s

Cable length, max.1 200 m; 200 m to 1200 m, depending on transmission speed

RS 422

Transmission rate, max.115.2 kbit/s

Cable length, max.1 200 m; 200 m to 1200 m, depending on transmission speed

4-wire full duplex connectionYes

4-wire multipoint connectionYes

Freeport

— Telegram length, max.2 kbyte; performance mode: receive data max. 24 byte and send data max. 30 byte

— Bits per character7 or 8

— Number of stop bits1 or 2 bit

— ParityNone, even, odd, always 1, always 0, any

3964 (R)

— Telegram length, max.2 kbyte; performance mode: receive data max. 24 byte and send data max. 30 byte

— Bits per character7 or 8

— Number of stop bits1 or 2 bit

— ParityNone, even, odd, always 1, always 0, any

Modbus RTU master

— Address area1 to 247, extended 1 to 65535

— max. number of devices32

Modbus RTU device

— Address area1 to 247, extended 1 to 65535

Telegram buffer

Buffer memory for telegrams4 kbyte

Number of telegrams which can be buffered255

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Hardware interruptNo

Diagnoses

Wire breakYes

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

for module diagnosticsYes; green/red DIAG LED

Receive RxDYes; green LED

Transmit TxDYes; green LED

Potential separation

between backplane bus and interfaceYes

Isolation

Isolation tested with707 V DC (type test)

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]25.2 kg

— global warming potential, (during production) [CO2 eq]6.15 kg

— global warming potential, (during operation) [CO2 eq]19.4 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.289 kg

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Decentralized operation

to SIMATIC S7-300Yes

to SIMATIC S7-400Yes

to SIMATIC S7-1200Yes

to SIMATIC S7-1500Yes

to standard PROFINET controllerYes

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.30 g

Accessories 10

Genuine accessories that can be used with the Siemens 6ES7137-6AA01-0BA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7193-6KB00-3AA0	Yedek parça · spare part
6ES7193-6KA00-3AA0	Yedek parça · spare part
6ES7193-6BP20-2DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-2BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-2DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-2BA0	Zorunlu ek ürün · BaseUnit
