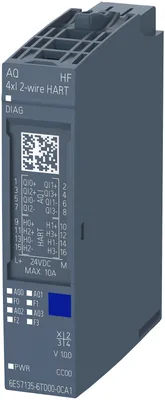

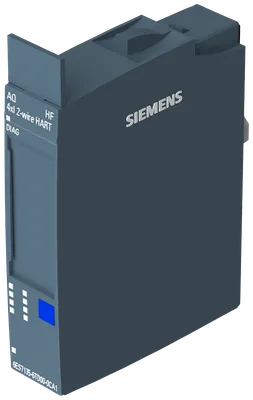

Siemens 6ES7135-6TD00-0CA1

SIMATIC ET 200SP, analog HART output module, AQ 4xI HART High Feature, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.3%

SiemensMFR # 6ES7135-6TD00-0CA1SKU # YLSMGZ6T6CE67LN

Product type designationAQ 4xI HART HF

Firmware versionV1.0

FW update possibleYes

usable BaseUnitsBU type A0, A1

I&M dataYes; I&M0 to I&M3

Isochronous modeYes; 250 µs

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, analog HART output module, AQ 4xI HART High Feature, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.3%

Siemens 6ES7135-6TD00-0CA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAQ 4xI HART HF

Firmware versionV1.0

FW update possibleYes

usable BaseUnitsBU type A0, A1

Color code for module-specific color-coded labelCC00

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeYes; 250 µs

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV15 SP1

STEP 7 configurable/integrated from versionV5.6 and higher

PCS 7 configurable/integrated from versionV9.0 SP1

PROFIBUS from GSD version/GSD revisionV04.02.14

PROFINET from GSD version/GSD revisionGSDML V2.34

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNNo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption (rated value)115 mA

Current consumption, max.125 mA

Power loss

Power loss, typ.1.7 W

Address space per module

Address space per module, max.8 byte; + 1 byte for QI information

Address space per module with HART, max.28 byte; + 1 byte for QI information

Hardware configuration

Mechanical coding elementYes

Type of mechanical coding elementType A

Analog outputs

Number of analog outputs4

Current output, no-load voltage, max.28 V

Cycle time (all channels), min.3 ms

Output ranges, current

0 to 20 mAYes; 16 bit incl. sign

-20 mA to +20 mANo

4 mA to 20 mAYes; 16 bit incl. sign

Connection of actuators

for current output two-wire connectionYes

Load impedance (in rated range of output)

with current outputs, max.750 Ω

with current outputs, inductive load, max.10 mH

Destruction limits against externally applied voltages and currents

Voltages at the outputs30 V

Cable length

shielded, max.800 m

Settling time

for resistive load2 ms; 750 ohm

for capacitive load2 ms

for inductive load2 ms

Errors/accuracies

Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)0.02 %

Linearity error (relative to output range), (+/-)0.03 %

Temperature error (relative to output range), (+/-)0.003 %/K

Crosstalk between the outputs, min.-50 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0.03 %

Operational error limit in overall temperature range

Current, relative to output range, (+/-)0.3 %; 0 ... 60 °C: 0.2 %

Basic error limit (operational limit at 25 °C)

Current, relative to output range, (+/-)0.1 %

Protocols

HART protocolYes

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes; module-wise

Wire breakYes; channel by channel

Short-circuitYes

Overflow/UnderflowYes; channel by channel

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

Between the channels and load voltage L+Yes

Permissible potential difference

between different circuits60 V DC/30 V AC

Isolation

Isolation tested with707 V DC (type test)

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

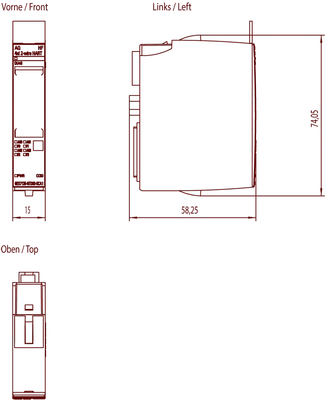

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.31 g
