How can I get a price quote for Siemens 6ES7135-6HD00-0BA1?

You can request a fast quote for Siemens 6ES7135-6HD00-0BA1 from Yılsa Engineering. Reference part number CEY-937FC77E6CF3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7135-6HD00-0BA1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7135-6HD00-0BA1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7135-6HD00-0BA1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

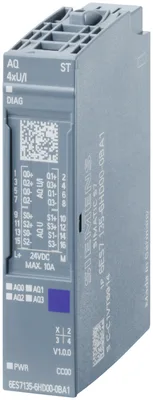

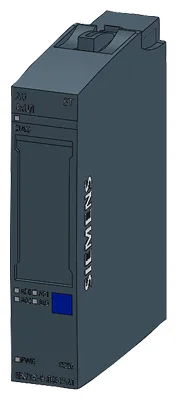

Siemens 6ES7135-6HD00-0BA1

SIMATIC ET 200SP, Analog output module, AQ 4XU/I Standard, suitable for BU type A0, A1, Color code CC00, Module diagnostics, 16 bit, +/-0.3%

SiemensMFR # 6ES7135-6HD00-0BA1SKU # CEY-937FC77E6CF3

Product type designationAQ 4xU/I ST

HW functional statusfrom FS21

Firmware versionV1.1.3

FW update possibleYes

usable BaseUnitsBU type A0, A1

I&M dataYes; I&M0 to I&M3

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, Analog output module, AQ 4XU/I Standard, suitable for BU type A0, A1, Color code CC00, Module diagnostics, 16 bit, +/-0.3%

Siemens 6ES7135-6HD00-0BA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAQ 4xU/I ST

HW functional statusfrom FS21

Firmware versionV1.1.3

FW update possibleYes

usable BaseUnitsBU type A0, A1

Color code for module-specific color-coded labelCC00

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Output range scalableNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV11 SP2 / V13

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PCS 7 configurable/integrated from versionV8.1 SP1

PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher

PROFINET from GSD version/GSD revisionGSDML V2.3

Operating mode

OversamplingNo

MSONo

CiR - Configuration in RUN

Reparameterization possible in RUNNo

Calibration possible in RUNNo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, max.150 mA

Power loss

Power loss, typ.1.5 W

Address space per module

Address space per module, max.8 byte; + 1 byte for QI information

Hardware configuration

Automatic encodingYes

Mechanical coding elementYes

Type of mechanical coding elementType A

Analog outputs

Number of analog outputs4

Voltage output, short-circuit current, max.45 mA

Cycle time (all channels), min.5 ms

Analog output with oversamplingNo

Output ranges, voltage

0 to 10 VYes; 15 bit

1 V to 5 VYes; 13 bit

-5 V to +5 VYes; 15 bit incl. sign

-10 V to +10 VYes; 16 bit incl. sign

Output ranges, current

0 to 20 mAYes; 15 bit

-20 mA to +20 mAYes; 16 bit incl. sign

4 mA to 20 mAYes; 14 bit

Connection of actuators

for voltage output two-wire connectionYes

for voltage output four-wire connectionYes

for current output two-wire connectionYes

Load impedance (in rated range of output)

with voltage outputs, min.2 kΩ

with voltage outputs, capacitive load, max.1 µF

with current outputs, max.500 Ω

with current outputs, inductive load, max.1 mH

Destruction limits against externally applied voltages and currents

Voltages at the outputs30 V

Cable length

shielded, max.1 000 m; 200 m for voltage output

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Settling time

for resistive load0.1 ms

for capacitive load1 ms

for inductive load0.5 ms

Errors/accuracies

Linearity error (relative to output range), (+/-)0.03 %

Temperature error (relative to output range), (+/-)0.005 %/K

Crosstalk between the outputs, min.-50 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0.05 %

Operational error limit in overall temperature range

Voltage, relative to output range, (+/-)0.5 %

Current, relative to output range, (+/-)0.5 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to output range, (+/-)0.3 %

Current, relative to output range, (+/-)0.3 %

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; module-by-module, only for output type "current"

Short-circuitYes; module-by-module, only for output type "voltage"

Group errorYes

Overflow/UnderflowYes; module-wise

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsNo

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with707 V DC (type test)

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]28.6 kg

— global warming potential, (during production) [CO2 eq]5.33 kg

— global warming potential, (during operation) [CO2 eq]23.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.343 kg

Ambient temperature during operation

horizontal installation, min.-30 °C; < 0 °C as of FS07

horizontal installation, max.60 °C; Observe derating

vertical installation, min.-30 °C; < 0 °C as of FS07

vertical installation, max.50 °C; Observe derating

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

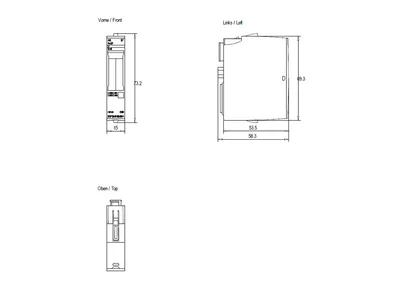

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.31 g

Accessories 13

Genuine accessories that can be used with the Siemens 6ES7135-6HD00-0BA1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7193-6EF00-1AA0	Yedek parça · spare part
6ES7193-6BP00-2DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-2BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP40-0DA1	Zorunlu ek ürün · BaseUnit
6ES7193-6BP40-0BA1	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0DA1	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0BA1	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-2BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-2DA0	Zorunlu ek ürün · BaseUnit
