Siemens 6ES7135-6HB00-0DA1

SIMATIC ET 200SP, Analog output module, AQ 2x U/I High Speed, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.2%

SiemensMFR # 6ES7135-6HB00-0DA1SKU # CEY-937FC77C52CC

Product type designationAQ 2xU/I HS

HW functional statusFrom FS06

usable BaseUnitsBU type A0, A1

I&M dataYes; I&M0 to I&M3

Isochronous modeYes; 125 µs

PROFIBUS from GSD version/GSD revisionGSD Revision 5

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, Analog output module, AQ 2x U/I High Speed, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.2%

Siemens 6ES7135-6HB00-0DA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAQ 2xU/I HS

HW functional statusFrom FS06

usable BaseUnitsBU type A0, A1

Color code for module-specific color-coded labelCC00

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeYes; 125 µs

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV13 SP1

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionGSD Revision 5

PROFINET from GSD version/GSD revisionGSDML V2.3

Operating mode

OversamplingYes; 2 channels per module

MSONo

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNNo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption (rated value)45 mA; without load

Current consumption, max.90 mA; 2 channels current output 20 mA

Power loss

Power loss, typ.0.9 W

Address space per module

Address space per module, max.4 byte; + 1 byte for QI information (32 bytes in the oversampling operating mode)

Hardware configuration

Mechanical coding elementYes

Type of mechanical coding elementType A

Analog outputs

Number of analog outputs2

Voltage output, short-circuit protectionYes

Voltage output, short-circuit current, max.45 mA

Cycle time (all channels), min.125 µs

Analog output with oversamplingYes

Values per cycle, max.16

Resolution, min.45 µs; (2 channels), 35 µs (1 channel)

Output ranges, voltage

0 to 10 VYes; 15 bit

1 V to 5 VYes; 13 bit

-5 V to +5 VYes; 15 bit incl. sign

-10 V to +10 VYes; 16 bit incl. sign

Output ranges, current

0 to 20 mAYes; 15 bit

-20 mA to +20 mAYes; 16 bit incl. sign

4 mA to 20 mAYes; 14 bit

Connection of actuators

for voltage output two-wire connectionYes

for voltage output four-wire connectionYes

for current output two-wire connectionYes

Load impedance (in rated range of output)

with voltage outputs, min.2 kΩ

with voltage outputs, capacitive load, max.1 µF

with current outputs, max.500 Ω

with current outputs, inductive load, max.1 mH

Destruction limits against externally applied voltages and currents

Voltages at the outputs30 V

Cable length

shielded, max.1 000 m; 200 m for voltage output

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Settling time

for resistive load0.05 ms

for capacitive load0.05 ms; Max. 47 nF and 20 m cable length

for inductive load0.05 ms

Errors/accuracies

Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)0.02 %

Linearity error (relative to output range), (+/-)0.03 %

Temperature error (relative to output range), (+/-)0.003 %/K

Crosstalk between the outputs, max.-50 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0.03 %

Operational error limit in overall temperature range

Voltage, relative to output range, (+/-)0.2 %

Current, relative to output range, (+/-)0.2 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to output range, (+/-)0.1 %

Current, relative to output range, (+/-)0.1 %

Isochronous mode

Execution and activation time (TCO), min.70 µs

Bus cycle time (TDP), min.125 µs

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; channel-by-channel, only for output type "current"

Short-circuitYes; channel-by-channel, only for output type "voltage"

Group errorYes

Overflow/UnderflowYes

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with707 V DC (type test)

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]28.6 kg

— global warming potential, (during production) [CO2 eq]5.33 kg

— global warming potential, (during operation) [CO2 eq]23.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.343 kg

Ambient temperature during operation

horizontal installation, min.-30 °C; < 0 °C as of FS06

horizontal installation, max.60 °C

vertical installation, min.-30 °C; < 0 °C as of FS06

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

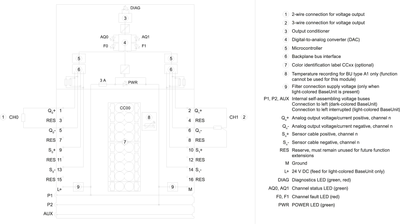

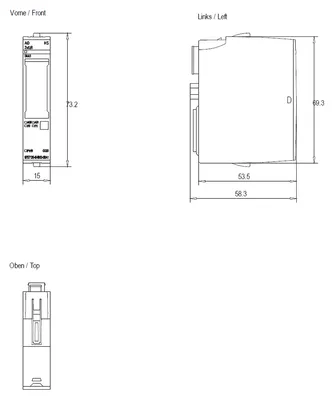

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.31 g
