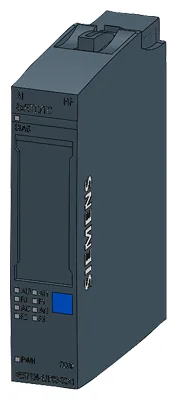

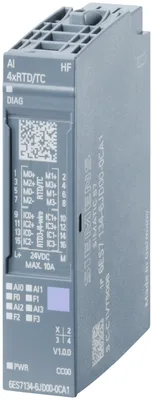

Siemens 6ES7134-6JD00-0CA1

SIMATIC ET 200SP, Analog input module, AI 4xRTD/TC High Feature, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.1%, 2-/3-/4-wire

SiemensMFR # 6ES7134-6JD00-0CA1SKU # CEY-937FC7805551

Product type designationAI 4xRTD/TC 2-/3-/4-wire HF

HW functional statusFS22 or higher

Firmware versionV3.0.0

FW update possibleYes

usable BaseUnitsBU type A0, A1

I&M dataYes; I&M0 to I&M3

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, Analog input module, AI 4xRTD/TC High Feature, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.1%, 2-/3-/4-wire

Siemens 6ES7134-6JD00-0CA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAI 4xRTD/TC 2-/3-/4-wire HF

HW functional statusFS22 or higher

Firmware versionV3.0.0

FW update possibleYes

usable BaseUnitsBU type A0, A1

Color code for module-specific color-coded labelCC00

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Measuring range scalableYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV21 HSP0495 / integrated as of V21.1

STEP 7 configurable/integrated from versionV5.7 SP3 HF3 with HSP0348 V2.0 / integrated as of V5.8

PCS 7 configurable/integrated from versionV10.1

PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher

PROFINET from GSD version/GSD revisionGSDML V2.45

Operating mode

OversamplingNo

MSIYes

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNYes

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption (rated value)34 mA

Current consumption, max.35 mA

Power loss

Power loss, typ.0.75 W

Address space per module

Address space per module, max.8 byte; + 1 byte for QI information

Hardware configuration

Automatic encodingYes

Mechanical coding elementYes

Type of mechanical coding elementType A

Selection of BaseUnit for connection variants

2-wire connectionBU type A0, A1

3-wire connectionBU type A0, A1

Analog inputs

Number of analog inputs4

For voltage measurement4

permissible input voltage for voltage input (destruction limit), max.30 V

Constant measurement current for resistance-type transmitter, typ.0.7 mA; 1.7 mA for Cu10 sensors

Cycle time (all channels), min.Sum of the basic conversion times and additional processing times (depending on the parameterization of the active channels); for line compensation in case of a three-wire connection, an additional cycle is necessary

Technical unit for temperature measurement adjustableYes; °C/°F/K

Input ranges (rated values), voltages

-1 V to +1 VYes; 16 bit incl. sign

— Input resistance (-1 V to +1 V)1 MΩ

-250 mV to +250 mVYes; 16 bit incl. sign

— Input resistance (-250 mV to +250 mV)1 MΩ

-50 mV to +50 mVYes; 16 bit incl. sign

— Input resistance (-50 mV to +50 mV)1 MΩ

-80 mV to +80 mVYes; 16 bit incl. sign

— Input resistance (-80 mV to +80 mV)1 MΩ

Input ranges (rated values), thermocouples

Type BYes; 16 bit incl. sign

— Input resistance (Type B)1 MΩ

Type CYes; 16 bit incl. sign

— Input resistance (Type C)1 MΩ

Type EYes; 16 bit incl. sign

— Input resistance (Type E)1 MΩ

Type JYes; 16 bit incl. sign

— Input resistance (type J)1 MΩ

Type KYes; 16 bit incl. sign

— Input resistance (Type K)1 MΩ

Type LYes; 16 bit incl. sign

— Input resistance (Type L)1 MΩ

Type NYes; 16 bit incl. sign

— Input resistance (Type N)1 MΩ

Type RYes; 16 bit incl. sign

— Input resistance (Type R)1 MΩ

Type SYes; 16 bit incl. sign

— Input resistance (Type S)1 MΩ

Type TYes; 16 bit incl. sign

— Input resistance (Type T)1 MΩ

Type UYes; 16 bit incl. sign

— Input resistance (Type U)1 MΩ

Type TXK/TXK(L) to GOSTYes; 16 bit incl. sign

— Input resistance (Type TXK/TXK(L) to GOST)1 MΩ

Input ranges (rated values), resistance thermometer

Cu 10Yes; 16 bit incl. sign

— Input resistance (Cu 10)1 MΩ

Ni 100Yes; 16 bit incl. sign

— Input resistance (Ni 100)1 MΩ

Ni 1000Yes; 16 bit incl. sign

— Input resistance (Ni 1000)1 MΩ

LG-Ni 1000Yes; 16 bit incl. sign

— Input resistance (LG-Ni 1000)1 MΩ

Ni 120Yes; 16 bit incl. sign

— Input resistance (Ni 120)1 MΩ

Ni 200Yes; 16 bit incl. sign

— Input resistance (Ni 200)1 MΩ

Ni 500Yes; 16 bit incl. sign

— Input resistance (Ni 500)1 MΩ

Pt 100Yes; 16 bit incl. sign

— Input resistance (Pt 100)1 MΩ

Pt 1000Yes; 16 bit incl. sign

— Input resistance (Pt 1000)1 MΩ

Pt 200Yes; 16 bit incl. sign

— Input resistance (Pt 200)1 MΩ

Pt 500Yes; 16 bit incl. sign

— Input resistance (Pt 500)1 MΩ

Input ranges (rated values), resistors

0 to 150 ohmsYes; 15 bit

— Input resistance (0 to 150 ohms)1 MΩ

0 to 300 ohmsYes; 15 bit

— Input resistance (0 to 300 ohms)1 MΩ

0 to 600 ohmsYes; 15 bit

— Input resistance (0 to 600 ohms)1 MΩ

0 to 3000 ohmsYes; 15 bit

— Input resistance (0 to 3000 ohms)1 MΩ

0 to 6000 ohmsYes; 15 bit

— Input resistance (0 to 6000 ohms)1 MΩ

PTCYes; 15 bit

— Input resistance (PTC)1 MΩ

Temperature compensation

— ParameterizableYes

— Reference channel of the moduleYes

— internal comparison pointYes; with BaseUnit type A1

— Reference channel of the groupYes

— Number of reference channel groups4; Group 0 to 3

— fixed reference temperatureYes

Cable length

shielded, max.200 m; 50 m with thermocouples

Analog value generation for the inputs

Measurement principleintegrating (Sigma-Delta)

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Integration time, parameterizableYes

— additional processing time for wire-break check2 ms; In the ranges resistance thermometers, resistors and thermocouples

— additional power line wire-break check2 ms; for 3/4 wire transducer (resistance thermometer and resistor)

Interference voltage suppression for interference frequency f1 in Hz16.6 / 50 / 60 Hz

Conversion time (per channel)180 / 60 / 50 / (67.5 / 22.5 / 18.75) ms

Smoothing of measured values

Number of smoothing levels4

parameterizableYes

Step: NoneYes

Step: lowYes; 4x smoothing

Step: MediumYes; 8x smoothing

Step: HighYes; 16x conversion time

Connection of signal encoders

for voltage measurementYes

for resistance measurement with two-wire connectionYes

for resistance measurement with three-wire connectionYes

for resistance measurement with four-wire connectionYes

Errors/accuracies

Linearity error (relative to input range), (+/-)0.01 %; ±0.1 % for resistance thermometers and resistance

Temperature error (relative to input range), (+/-)0.0009 %/K; ±0.005 % / K at thermocouple

Crosstalk between the inputs, min.-50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.05 %

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.1 %

Resistance, relative to input range, (+/-)0.1 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.05 %

Resistance, relative to input range, (+/-)0.05 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.70 dB

Common mode voltage, max.10 V

Common mode interference, min.90 dB

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Limit value alarmYes; two upper and two lower limit values in each case

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; channel by channel

Short-circuitNo

Group errorYes

Overflow/UnderflowYes; channel by channel

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes

Permissible potential difference

between the inputs (UCM)10 V DC

Isolation

Isolation tested with707 V DC (type test)

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]9.32 kg

— global warming potential, (during production) [CO2 eq]4.97 kg

— global warming potential, (during operation) [CO2 eq]4.79 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.449 kg

Security

signed firmware updateYes; Firmware V3.0.0 or higher

Ambient temperature during operation

horizontal installation, min.-30 °C; < 0 °C as of FS08

horizontal installation, max.60 °C

vertical installation, min.-30 °C; < 0 °C as of FS08

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

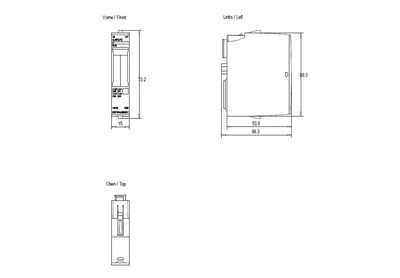

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.32 g
