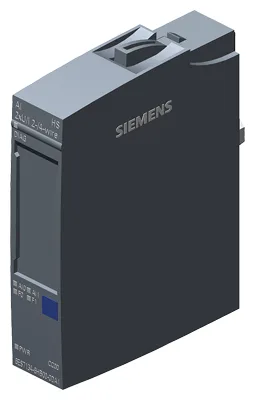

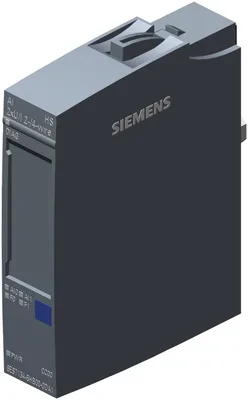

Siemens 6ES7134-6HB00-0DA1

SIMATIC ET 200SP, Analog input module, AI 2x U/I 2-.4-wire High Speed, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.3%

SiemensMFR # 6ES7134-6HB00-0DA1SKU # CEY-937FC77ED39A

Product type designationAI 2xU/I 2-/4-wire HS

HW functional statusFS22 or higher

Firmware versionV3.0.0

FW update possibleYes

usable BaseUnitsBU type A0, A1

I&M dataYes; I&M0 to I&M3

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, Analog input module, AI 2x U/I 2-.4-wire High Speed, suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.3%

Siemens 6ES7134-6HB00-0DA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAI 2xU/I 2-/4-wire HS

HW functional statusFS22 or higher

Firmware versionV3.0.0

FW update possibleYes

usable BaseUnitsBU type A0, A1

Color code for module-specific color-coded labelCC00

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeYes; 125 µs

Measuring range scalableNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV21.1 or higher

STEP 7 configurable/integrated from versionconfigurable as of V5.7.3.3 with HSP0348 V3.0 / integrated as of V5.7.5.0

PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher

PROFINET from GSD version/GSD revisionGSDML V2.50

Operating mode

OversamplingYes; 2 channels per module

MSINo

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNNo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption (rated value)37 mA

Current consumption, max.39 mA

24 V encoder supply

24 VYes; For current measurement

Short-circuit protectionYes

Output current, max.20 mA; max. 50 mA per channel for a duration < 10 s

Power loss

Power loss, typ.0.95 W

Address space per module

Address space per module, max.4 byte; + 1 byte for QI information (32 bytes in the oversampling operating mode)

Hardware configuration

Automatic encodingYes

Mechanical coding elementYes

Type of mechanical coding elementType A

Selection of BaseUnit for connection variants

2-wire connectionBU type A0, A1

4-wire connectionBU type A0, A1

Analog inputs

Number of analog inputs2; Differential inputs

For current measurement2

For voltage measurement2

permissible input voltage for voltage input (destruction limit), max.30 V

permissible input current for current input (destruction limit), max.50 mA

Cycle time (all channels), min.125 µs

Analog input with oversamplingYes

Values per cycle, max.16

Resolution, min.50 µs

Input ranges (rated values), voltages

0 to +10 VYes; 15 bit

— Input resistance (0 to 10 V)75 kΩ

1 V to 5 VYes; 13 bit

— Input resistance (1 V to 5 V)75 kΩ

-10 V to +10 VYes; 16 bit incl. sign

— Input resistance (-10 V to +10 V)75 kΩ

-5 V to +5 VYes; 15 bit incl. sign

— Input resistance (-5 V to +5 V)75 kΩ

Input ranges (rated values), currents

0 to 20 mAYes; 15 bit

— Input resistance (0 to 20 mA)130 Ω

-20 mA to +20 mAYes; 16 bit incl. sign

— Input resistance (-20 mA to +20 mA)130 Ω

4 mA to 20 mAYes; 14 bit

— Input resistance (4 mA to 20 mA)130 Ω

Cable length

shielded, max.1 000 m; 200 m for voltage measurement

Analog value generation for the inputs

Measurement principleActual value encryption (successive approximation)

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Interference voltage suppression for interference frequency f1 in HzNo

Conversion time (per channel)10 µs

Smoothing of measured values

Number of smoothing levels7; none; 2-/4-/8-/16-/32-/64-fold

ParameterizableYes

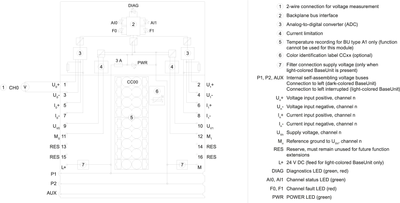

Connection of signal encoders

for voltage measurementYes

for current measurement as 2-wire transducerYes

— Burden of 2-wire transmitter, max.650 Ω

for current measurement as 4-wire transducerYes

Errors/accuracies

Linearity error (relative to input range), (+/-)0.03 %

Temperature error (relative to input range), (+/-)0.01 %/K

Crosstalk between the inputs, min.-50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.1 %

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.3 %

Current, relative to input range, (+/-)0.3 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.2 %

Current, relative to input range, (+/-)0.2 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Common mode voltage, max.35 V

Common mode interference, min.90 dB

Isochronous mode

Filtering and processing time (TCI), min.80 µs

Bus cycle time (TDP), min.125 µs; Starting from firmware Version V2.0.1

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Limit value alarmYes; two upper and two lower limit values in each case

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; channel-by-channel, at 4 to 20 mA only

short-circuitYes; channel-by-channel, at 1 to 5 V or for current measuring ranges short-circuit in encoder supply

Overflow/UnderflowYes; channel by channel

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsYes

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with707 V DC (type test)

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]9.32 kg

— global warming potential, (during production) [CO2 eq]4.97 kg

— global warming potential, (during operation) [CO2 eq]4.79 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.449 kg

Security

signed firmware updateYes; Firmware V3.0.0 or higher

Ambient temperature during operation

horizontal installation, min.-30 °C; < 0 °C as of FS07

horizontal installation, max.60 °C

vertical installation, min.-30 °C; < 0 °C as of FS07

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

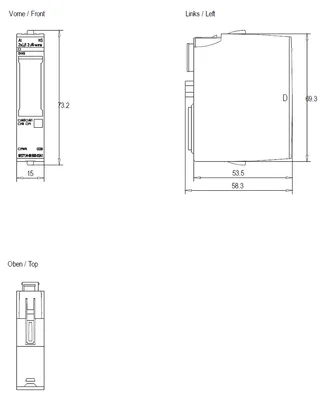

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.32 g
