How can I get a price quote for Siemens 6ES7132-6MD00-0BB1?

You can request a fast quote for Siemens 6ES7132-6MD00-0BB1 from Yılsa Engineering. Reference part number CEY-8EF3B038711F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7132-6MD00-0BB1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7132-6MD00-0BB1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7132-6MD00-0BB1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

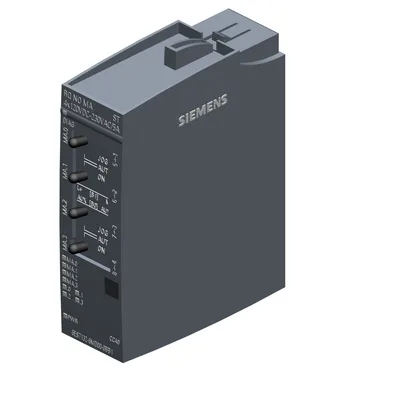

Siemens 6ES7132-6MD00-0BB1

SIMATIC ET 200SP, relay module normally open, RQ NO-MA4x120VDC..230VAC/5A ST, with manual operation, packing unit VPE 1, suitable for BU type B0 or B1, Module diagnostics

SiemensMFR # 6ES7132-6MD00-0BB1SKU # CEY-8EF3B038711F

Product type designationRQ 4x120 V DC ... 230 V AC/5 A NO MA ST

HW functional statusFrom FS03

FW update possibleYes

usable BaseUnitsBU type B0, B1

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, relay module normally open, RQ NO-MA4x120VDC..230VAC/5A ST, with manual operation, packing unit VPE 1, suitable for BU type B0 or B1, Module diagnostics

Siemens 6ES7132-6MD00-0BB1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationRQ 4x120 V DC ... 230 V AC/5 A NO MA ST

HW functional statusFrom FS03

FW update possibleYes

usable BaseUnitsBU type B0, B1

Color code for module-specific color-coded labelCC40

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV13 SP1

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher

PROFINET from GSD version/GSD revisionGSDML V2.3

Operating mode

DQYes

DQ with energy-saving functionNo

PWMNo

OversamplingNo

MSONo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, max.100 mA; without load

Power loss

Power loss, typ.1.5 W

Address space per module

Inputs1 byte; + 1 byte for QI information

Outputs1 byte

Hardware configuration

Automatic encodingYes

Mechanical coding elementYes

Type of mechanical coding elementtype C

Selection of BaseUnit for connection variants

2-wire connectionBU type B1

3-wire connectionBU type B0

Digital outputs

Type of digital outputRelays

Number of digital outputs4

Current-sinkingYes

Current-sourcingYes

Digital outputs, parameterizableYes

Short-circuit protectionNo

Switching frequency

with resistive load, max.2 Hz

with inductive load (acc. to IEC 60947-5-1, DC13), max.0.5 Hz; provide one freewheeling diode for switching frequencies higher than 0.1 Hz

with inductive load (acc. to IEC 60947-5-1, AC15), max.0.5 Hz

on lamp load, max.2 Hz

Total current of the outputs

Current per channel, max.5 A

Current per module, max.20 A

horizontal installation

— up to 50 °C, max.20 A

— up to 60 °C, max.16 A

vertical installation

— up to 40 °C, max.20 A

— up to 50 °C, max.16 A

Relay outputs

Number of relay outputs4

Rated supply voltage of relay coil L+ (DC)24 V

Current consumption of relays (coil current of all relays), max.40 mA

external protection for relay outputsYes, with miniature fuse max. 6 A tripping current and quick-response tripping characteristic

Number of operating cycles, max.7 000 000; see additional description in the manual

Switching capacity of contacts

— with inductive load, max.2 A; see additional description in the manual

— with resistive load, max.5 A; see additional description in the manual

— Thermal continuous current, max.5 A

— Switching current, min.100 mA; 5 V DC

— Rated switching voltage (DC)24 V DC to 120 V DC

— Rated switching voltage (AC)24V AC to 230V AC

Cable length

shielded, max.1 000 m

unshielded, max.200 m

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

Wire breakNo

short-circuitNo

Group errorYes

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsNo

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsYes

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes

Permissible potential difference

between channels and backplane bus/supply voltage240 V AC

Isolation

Isolation tested with2 500 V DC (type test)

tested with

between channels and backplane bus/supply voltage2 500 V DC

between backplane bus and supply voltage707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functionsNo

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]25.5 kg

— global warming potential, (during production) [CO2 eq]3.54 kg

— global warming potential, (during operation) [CO2 eq]22.1 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.137 kg

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m; On request: Installation altitudes greater than 2 000 m

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

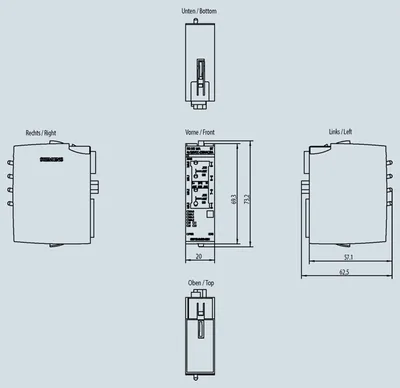

Dimensions

Width20 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.45 g

Accessories 6

Genuine accessories that can be used with the Siemens 6ES7132-6MD00-0BB1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7193-6KC00-3AA0	Yedek parça · spare part
6ES7193-6KD00-3AA0	Yedek parça · spare part
6ES7193-6BP20-0BB1	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-2BB0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-2BB1	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0BB0	Zorunlu ek ürün · BaseUnit
