How can I get a price quote for Siemens 6ES7131-6TF00-0CA0?

You can request a fast quote for Siemens 6ES7131-6TF00-0CA0 from Yılsa Engineering. Reference part number CEY-937FC77CDC7E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7131-6TF00-0CA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7131-6TF00-0CA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7131-6TF00-0CA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

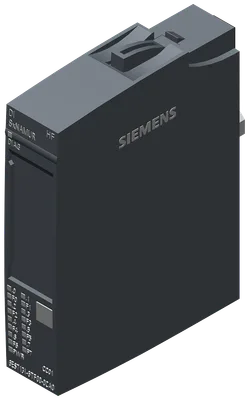

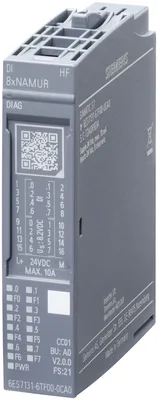

Siemens 6ES7131-6TF00-0CA0

SIMATIC ET 200SP, digital input module, DI 8x NAMUR High Feature, suitable for BU type A0, Color code CC01, channel diagnostics

SiemensMFR # 6ES7131-6TF00-0CA0SKU # CEY-937FC77CDC7E

Product type designationDI 8xNAMUR HF

HW functional statusfrom FS21

Firmware versionV2.0 or higher

FW update possibleYes

usable BaseUnitsBU type A0

I&M dataYes; I&M0 to I&M3

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, digital input module, DI 8x NAMUR High Feature, suitable for BU type A0, Color code CC01, channel diagnostics

Siemens 6ES7131-6TF00-0CA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDI 8xNAMUR HF

HW functional statusfrom FS21

Firmware versionV2.0 or higher

FW update possibleYes

usable BaseUnitsBU type A0

Color code for module-specific color-coded labelCC01

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

suitable for operation on PROFINET R1 IMsYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV19

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionGSD Revision 5

PROFINET from GSD version/GSD revisionGSDML V2.42

Operating mode

DIYes

CounterYes

OversamplingNo

MSINo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, max.70 mA

Encoder supply

Number of outputs8

Short-circuit protectionYes

24 V encoder supply

24 VNo

Short-circuit protectionNo

NAMUR encoder supply

8.2 VYes

Short-circuit protectionYes

Output current per channel, max.8 mA

Output current per module, max.64 mA

Power loss

Power loss, typ.1.5 W

Address space per module

Address space per module, max.1 byte

Inputs42 byte; 1 byte + 1 byte for QI information in DI mode; 42 bytes in Counter mode

Outputs20 byte; 0 in DI mode; 20 bytes in Counter mode

Hardware configuration

Automatic encodingYes

Mechanical coding elementYes

Type of mechanical coding elementType A

Submodules

Number of configurable submodules, max.1

Selection of BaseUnit for connection variants

2-wire connectionBU type A0

3-wire connectionBU type A0

Digital inputs

Number of digital inputs8; NAMUR

Digital inputs, parameterizableYes

Sourcing/sinking inputP-reading

Pulse extensionYes; 0.5 s, 1 s, 2 s

Edge evaluationYes; rising edge, falling edge, edge change

Signal change flutterYes; 2 to 32 signal changes

Flutter observation windowYes; 0.5 s, 1 s to 100 s in 1-s steps

Digital input functions, parameterizable

Gate start/stopYes

Freely usable digital inputYes

CounterYes

— Number, max.4; See manual for details

— Counting frequency, max.5 kHz

— Counting width32 bit

— Counting direction up/downYes

Input voltage

Rated value (DC)8.2 V

for 10 k switched contact

— for signal "0", min.0.35 mA

— for signal "0", max.1.2 mA

— for signal "1", min.2.1 mA

— for signal "1", max.7 mA

for unswitched contact

— for signal "0", max. (permissible quiescent current)0.5 mA

— for signal "1", typ.8 mA

for NAMUR encoders

— for signal "0", min.0.35 mA

— for signal "0", max.1.2 mA

— for signal "1", min.2.1 mA

— for signal "1", max.7 mA

Input delay (for rated value of input voltage)

tolerated changeover time for changeover contacts300 ms

for standard inputs

— ParameterizableNo

for NAMUR inputs

— at "0" to "1", max.20 ms; See manual for details

— at "1" to "0", max.20 ms; See manual for details

Cable length

shielded, max.200 m; 50 m for Counter mode

Connectable encoders

NAMUR encoder/changeover contact according to EN 60947Yes

Single contact / changeover contact unconnectedYes

Single contact / changeover contact connected with 10 kΩYes

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes; channel by channel

Hardware interruptYes; Parameterizable, channels 0 to 7

Diagnoses

Diagnostic information readableYes

Monitoring the supply voltageYes

— ParameterizableYes

Monitoring of encoder power supplyNo

Wire breakYes; channel by channel

short-circuitYes; channel by channel

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

Between the channels and load voltage L+Yes

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functionsNo

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]15.9 kg

— global warming potential, (during production) [CO2 eq]3.69 kg

— global warming potential, (during operation) [CO2 eq]12.7 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.495 kg

Ambient temperature during operation

horizontal installation, min.-30 °C

horizontal installation, max.60 °C

vertical installation, min.-30 °C

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.32 g

Accessories 4

Genuine accessories that can be used with the Siemens 6ES7131-6TF00-0CA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7193-6BP00-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0DA0	Zorunlu ek ürün · BaseUnit
