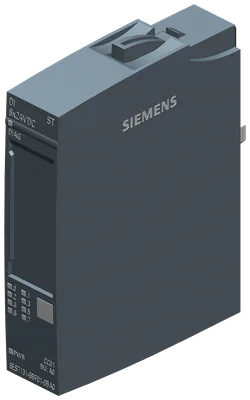

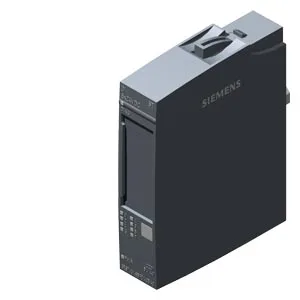

Siemens 6ES7131-6BF01-0BA0

SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Standard, type 3 (IEC 61131), sink input, (PNP, P-reading), Packing unit: 1 piece, fits to BU-type A0, Colour Code CC01, input delay time 0,05..20ms, module diagnostics for: short-circuit of sensor supply, wire break, supply voltage

SiemensMFR # 6ES7131-6BF01-0BA0SKU # CEY-937FC77F031F

Product type designationDI 8x24 VDC ST

HW functional statusFrom FS02

Firmware versionV0.0

FW update possibleNo

usable BaseUnitsBU type A0

I&M dataYes; I&M0 to I&M3

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7131-6BF01-0BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDI 8x24 VDC ST

HW functional statusFrom FS02

Firmware versionV0.0

FW update possibleNo

usable BaseUnitsBU type A0

Color code for module-specific color-coded labelCC01

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

suitable for operation on PROFINET R1 IMsYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV14

STEP 7 configurable/integrated from versionV5.5 SP3 or higher

PCS 7 configurable/integrated from versionV8.1 SP1

PCS neo can be configured/integrated from versionV3.1

PROFIBUS from GSD version/GSD revisionOne GSD file each, Revision 3 and 5 and higher

PROFINET from GSD version/GSD revisionGSDML V2.3

Operating mode

DIYes

CounterNo

OversamplingNo

MSINo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, max.50 mA; All channels are supplied from the encoder supply

Encoder supply

Number of outputs8

Output voltage, min.19.2 V

Short-circuit protectionYes; per module

24 V encoder supply

24 VYes

Short-circuit protectionYes

Output current, max.700 mA

Output current per channel, max.700 mA

Output current per module, max.700 mA

Power loss

Power loss, typ.1 W; 24 V, 8 inputs supplied via encoder supply

Address space per module

Inputs1 byte; + 1 byte for QI information

Hardware configuration

Automatic encodingYes

Mechanical coding elementYes

Type of mechanical coding elementType A

Selection of BaseUnit for connection variants

1-wire connectionBU type A0

2-wire connectionBU type A0

3-wire connectionBU type A0 with AUX terminals or potential distributor module

4-wire connectionBU type A0 + Potential distributor module

Digital inputs

Number of digital inputs8

Digital inputs, parameterizableYes

Sourcing/sinking inputP-reading

Input characteristic curve in accordance with IEC 61131, type 3Yes

Input voltage

Rated value (DC)24 V

for signal "0"-30 to +5 V

for signal "1"+11 to +30V

Input current

for signal "1", typ.2.5 mA

for standard inputs

— parameterizableYes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length)

— at "0" to "1", min.0.05 ms

— at "0" to "1", max.20 ms

— at "1" to "0", min.0.05 ms

— at "1" to "0", max.20 ms

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Diagnoses

Diagnostic information readableYes

Monitoring the supply voltageYes

— ParameterizableYes

Monitoring of encoder power supplyYes; Module-by-module, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 25 kOhm to 45 kOhm

Wire breakYes; module-wise

short-circuitYes; module-wise

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for channel diagnosticsNo

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsNo

between the channels and backplane busYes

between the channels and the power supply of the electronicsNo

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functionsNo

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]15.9 kg

— global warming potential, (during production) [CO2 eq]3.69 kg

— global warming potential, (during operation) [CO2 eq]12.7 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.495 kg

Ambient temperature during operation

horizontal installation, min.-30 °C; < 0 °C as of FS02

horizontal installation, max.60 °C

vertical installation, min.-30 °C; < 0 °C as of FS02

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width15 mm

Height73 mm

Depth58 mm

Weights

Weight, approx.28 g

Accessories 10

Genuine accessories that can be used with the Siemens 6ES7131-6BF01-0BA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7193-6KA00-3AA0	Yedek parça · spare part
6ES7193-6KB00-3AA0	Yedek parça · spare part
6ES7193-6BP20-2DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-2BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-0BA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP00-2DA0	Zorunlu ek ürün · BaseUnit
6ES7193-6BP20-2BA0	Zorunlu ek ürün · BaseUnit
