How can I get a price quote for Siemens 6EP1967-2AA00?

You can request a fast quote for Siemens 6EP1967-2AA00 from Yılsa Engineering. Reference part number CEY-8EF3B02E1B4E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6EP1967-2AA00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6EP1967-2AA00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6EP1967-2AA00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

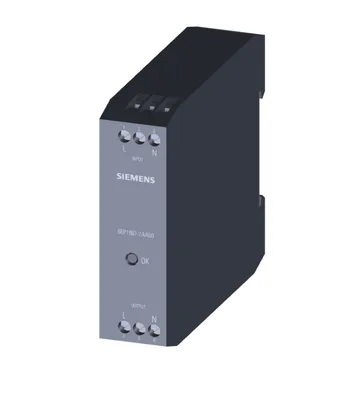

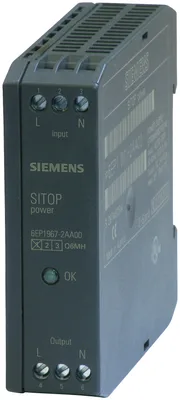

Siemens 6EP1967-2AA00

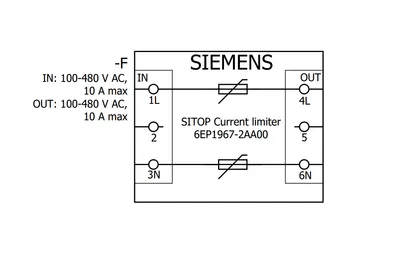

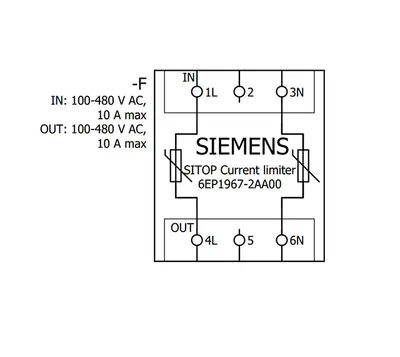

SITOP Inrush current limiter Ballast unit for SITOP Power supplies input: 100-480 V AC, 10 A max output: 100-480 V AC, 10 A max

SiemensMFR # 6EP1967-2AA00SKU # CEY-8EF3B02E1B4E

product brand nameSITOP

product type designationICL

product designationSwitch-on current limitation

type of current supply100-480 V/10 A

type of the power supply network1-phase, 2-phase and 3-phase AC

phase number1

Have questions?Chat on WhatsApp

About This Product

SITOP Inrush current limiter Ballast unit for SITOP Power supplies input: 100-480 V AC, 10 A max output: 100-480 V AC, 10 A max

Siemens 6EP1967-2AA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationICL

product designationSwitch-on current limitation

type of current supply100-480 V/10 A

input

type of the power supply network1-phase, 2-phase and 3-phase AC

phase number1

voltage curve at inputAC

minimum rated value100 V

maximum rated value480 V

initial value85 V

full-scale value575 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputYes

current limitation of inrush current at 25 °C maximum10 A

typical120 ms

fuse protection type in the feederCircuit breaker max. 10 A

output

voltage curve at outputaccording to the supply voltage

product function output voltage controlledNo

product function output voltage stabilizedNo

number of outputs1

at AC rated value100 - 480 V

at AC85 ... 575

output voltage adjustableNo

display version for normal operationGreen LED

rated range0 ... 10 A

bridging of equipmentNo

efficiency

at rated output voltage for rated value of the output current typical1.5 W

protection and monitoring

property of the output short-circuit proofNo

design of short-circuit protectionmust be ensured by primary miniature circuit breaker

when switching onSwitching frequency max. 1 event per minute

safety

galvanic isolation between input and outputNo

operating resource protection classClass II

protection class IPIP20

EMC

for emitted interferenceEN 61000-6-3

for mains harmonics limitation-

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

EAC approvalYes

NEC Class 2No

CB-certificateNo

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalNo

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Lloyds Register of Shipping (LRS)No

ambient conditions

during operation-25 ... +60 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal

at inputL, N: 1 screw terminal each for 0.5 ... 2.5 mm²

at outputL, N: 1 screw terminal each for 0.5 ... 2.5 mm²

mechanical data

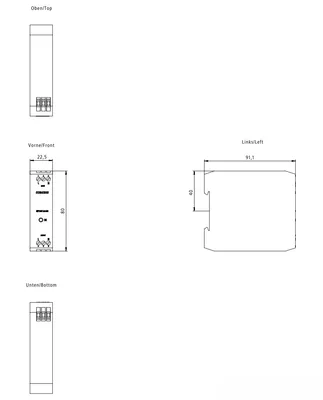

width × height × depth of the enclosure22.5 × 80 × 91 mm

installation width × mounting height22.5 mm × 180 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight0.12 kg

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
