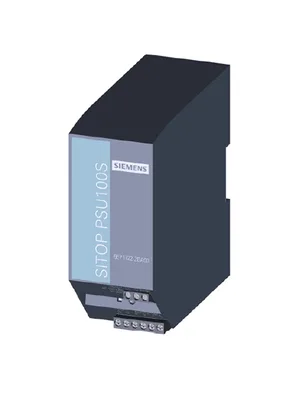

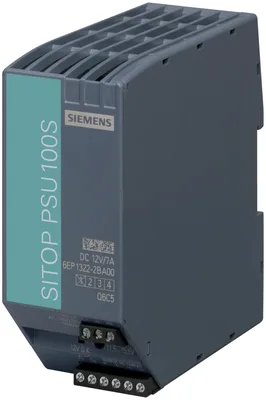

Siemens 6EP1322-2BA00

SITOP PSU100S 12 V/7 A stabilized power supply input: 120/230 V AC output: 12 V DC/7 A

SiemensMFR # 6EP1322-2BA00SKU # CEY-937FC77E8793

product brand nameSITOP

product type designationPSU100S

product designationPower supply SITOP smart

type of current supply12 V/7 A

type of the power supply network1-phase AC

phase number1

Have questions?Chat on WhatsApp

About This Product

SITOP PSU100S 12 V/7 A stabilized power supply input: 120/230 V AC output: 12 V DC/7 A

Siemens 6EP1322-2BA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU100S

product designationPower supply SITOP smart

type of current supply12 V/7 A

input

type of the power supply network1-phase AC

phase number1

voltage curve at inputAC

supply voltage at ACAutomatic range selection

supply voltage120 V/230 V

input voltage 1 at AC85 ... 132 V

input voltage 2 at AC170 ... 264 V

at 50 Hz230 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputNo

overvoltage overload capability2.3 × Vin rated, 1.3 ms

buffering time for rated value of the output current in the event of power failure minimum20 ms

operating condition of the mains bufferingat Vin = 93/187 V

at rated input voltage 120 V1.73 A

at rated input voltage 230 V0.99 A

current limitation of inrush current at 25 °C maximum45 A

fuse protection typeT 3,15 A/250 V (not accessible)

fuse protection type in the feederRecommended miniature circuit breaker: from 6 A characteristic C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value12 V

at output 1 at DC rated value12 V

at output 1 at DC12 V

output voltage adjustableYes; via potentiometer

adjustable output voltage11.5 ... 15.5 V

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading1 %

maximum150 mV

typical20 mV

maximum240 mV

typical100 mV

display version for normal operationGreen LED for 12 V OK

type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0.3 A) for 12 V OK

behavior of the output voltage when switching onOvershoot of Vout < 3 %

response delay maximum0.3 s

typical10 ms

rated value7 A

rated range0 ... 7 A; +50 ... +70 °C: Derating 0.75%/K

supplied active power typical84 W

on short-circuiting during the start-up typical25 A

at short-circuit during operation typical25 A

on short-circuiting during the start-up800 ms

at short-circuit during operation800 ms

bridging of equipmentYes

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent84 %

at rated output voltage for rated value of the output current typical15 W

closed-loop control

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical5 %

load step 10 to 90% typical1 ms

load step 90 to 10% typical1 ms

protection and monitoring

design of the overvoltage protection< 20 V

property of the output short-circuit proofYes

design of short-circuit protectionConstant current characteristic

response value current limitation7 ... 8.8 A

in normal operationoverload capability 150 % Iout rated up to 5 s/min

typical8.8 A

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3.5 mA

typical0.4 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

UKCA markingYes

EAC approvalYes

NEC Class 2No

CB-certificateYes

MTBF at 40 °C1 998 441 h

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total420.1 kg

during manufacturing12.9 kg

during operation406.7 kg

after end of life0.37 kg

ambient conditions

during operation-25 ... +70 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

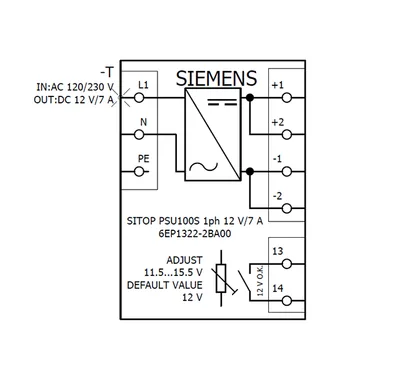

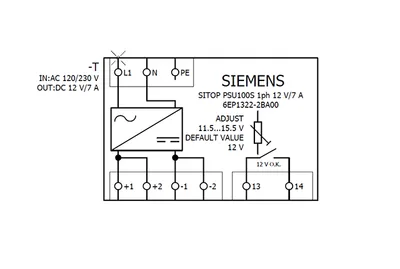

connection method

type of electrical connectionscrew terminal

at inputL, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded

at output+, -: 2 screw terminals each for 0.5 ... 2.5 mm²

for auxiliary contactsAlarm signals: 2 screw terminals for 0.5 ... 2.5 mm²

for signaling contact2 screw terminals for 0.5 ... 2.5 mm²

mechanical data

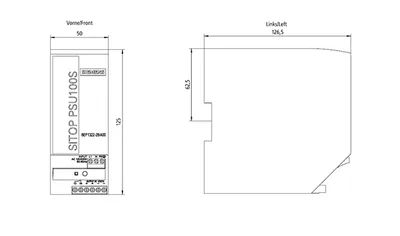

width × height × depth of the enclosure50 × 125 × 120 mm

installation width × mounting height50 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight0.5 kg

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing12.9 kg

global warming potential [CO2 eq] / during operation406.7 kg

global warming potential [CO2 eq] / after end of life0.37 kg

global warming potential [CO2 eq] / total420.1 kg
