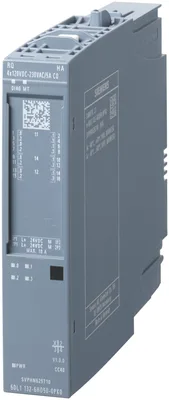

Siemens 6DL1132-6HD50-0PK0

SIMATIC ET 200SP HA, Signal relay module changeover contact, RQ 4x120VDC-230VAC/5A CO HA suitable for terminal block K0, color code CC40, module diagnostics

SiemensMFR # 6DL1132-6HD50-0PK0SKU # YLSDYS34YOEY61Q

Product type designationRQ 4x120VDC-230VAC/5A CO HA

Firmware versionV1.0

FW update possibleYes

Usable terminal blocktype K0 (see system manual for details)

I&M dataYes; I&M0 to I&M3

PROFINET from GSD version/GSD revisionGSDML V2.3

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP HA, Signal relay module changeover contact, RQ 4x120VDC-230VAC/5A CO HA suitable for terminal block K0, color code CC40, module diagnostics

Siemens 6DL1132-6HD50-0PK0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationRQ 4x120VDC-230VAC/5A CO HA

Firmware versionV1.0

FW update possibleYes

Usable terminal blocktype K0 (see system manual for details)

Color code for module-specific color-coded labelCC40

Product function

I&M dataYes; I&M0 to I&M3

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV16

STEP 7 configurable/integrated from versionV5.6

PCS 7 configurable/integrated from versionV9.0

PCS neo can be configured/integrated from versionV3.0

PROFINET from GSD version/GSD revisionGSDML V2.3

Redundancy

Redundancy capabilityNo

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption (rated value)50 mA; At 24 V and energized changeover coils

Current consumption, max.60 mA; At 19.2 V and energized changeover coils

Power loss

Power loss, typ.2.8 W; At 24 V, energized changeover coils and 5 A current across each changeover contact

Address space per module

Address space per module, max.1 byte; + 1 byte for QI information

Digital outputs

Number of digital outputs4

Switching frequency

with resistive load, max.2 Hz

with inductive load, max.0.5 Hz

on lamp load, max.2 Hz

Relay outputs

Number of relay outputs4

external protection for relay outputsyes; 6 A, see data in manual

Switching capacity of contacts

— with inductive load, max.2 A; 2 A (24 V DC), 0.5 A (60 V DC), 0.1 A (120 V DC)

— with resistive load, max.5 A; 5 A (30 V DC), 5 A (230 V AC)

— Switching current, min.8 mA

— Rated switching voltage (DC)24 V; 24 V DC to 120 V DC

— Rated switching voltage (AC)230 V; 24V AC to 230V AC

Cable length

shielded, max.1 000 m

unshielded, max.200 m

Interrupts/diagnostics/status information

Diagnostics functionYes

Substitute values connectableYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

— parameterizableYes

Diagnostics indication LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Channel status displayYes; green LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsYes

between the channels and backplane busYes

Between the channels and load voltage L+Yes

Permissible potential difference

between different circuitsBetween channels: 230 V AC (different system phase)

between channels and backplane bus/supply voltage230 V AC

tested with

between channels and backplane bus/supply voltage4 200 V DC/1 min, type test

between backplane bus and supply voltage1 500 V DC/1 min, type test

Between channels1 500 V AC/1 min, type test

Ambient temperature during operation

horizontal installation, min.-40 °C; No icing

horizontal installation, max.70 °C

vertical installation, min.-40 °C; No icing

vertical installation, max.60 °C

Altitude during operation relating to sea level

Ambient air temperature-barometric pressure-altitude3 000 m due to converter type used

Dimensions

Width22.5 mm

Height115 mm

Depth138 mm

Weights

Weight, approx.162 g
