How can I get a price quote for Siemens 6DL1193-6BP00-0BX1?

You can request a fast quote for Siemens 6DL1193-6BP00-0BX1 from Yılsa Engineering. Reference part number YLSC1X5MPYU1TLR. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6DL1193-6BP00-0BX1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6DL1193-6BP00-0BX1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6DL1193-6BP00-0BX1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

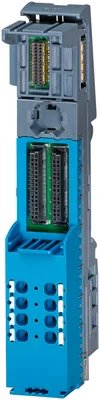

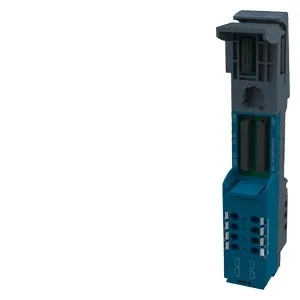

Siemens 6DL1193-6BP00-0BX1

Please take care of the sales information regarding to existing certificates. SIOS article 109796307 BaseUnit type X1, for Ex electronic modules, push-in terminals, WxH: 20 mm x 117 mm

SiemensMFR # 6DL1193-6BP00-0BX1SKU # YLSC1X5MPYU1TLR

Product type designationBU type X1

I&M dataYes; Asset data

For P1 and P2 bus, max.10 A

For process terminals, max.0.5 A

support of potential groupsYes

New potential groupNo

Have questions?Chat on WhatsApp

About This Product

Please take care of the sales information regarding to existing certificates. SIOS article 109796307 BaseUnit type X1, for Ex electronic modules, push-in terminals, WxH: 20 mm x 117 mm

Siemens 6DL1193-6BP00-0BX1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationBU type X1

Product function

I&M dataYes; Asset data

Current carrying capacity

For P1 and P2 bus, max.10 A

For process terminals, max.0.5 A

Hardware configuration

Temperature sensorYes; For internal reference junction with connecting thermocouple

Formation of potential groups

support of potential groupsYes

New potential groupNo

Potential group continued from the leftYes

Slots

Number of slots1

Potential separation

between backplane bus and supply voltageYes

between process terminals and supply voltageYes

Isolation

Isolation tested withfurther information on insulation can be found in the "ET 200SP HA / ET 200SP modules for devices in hazardous areas” System Manual

Ambient temperature during operation

horizontal installation, min.-40 °C

horizontal installation, max.70 °C

vertical installation, min.-40 °C

vertical installation, max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Terminals

Terminal typePush-in terminal

Conductor cross-section, min.0.14 mm²; AWG 26

Conductor cross-section, max.2.5 mm²; AWG 14

Number of process terminals to I/O module8
