How can I get a price quote for Siemens 6DL1131-6GF00-0PK0?

You can request a fast quote for Siemens 6DL1131-6GF00-0PK0 from Yılsa Engineering. Reference part number YLS5BYMBRXKWMYA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6DL1131-6GF00-0PK0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6DL1131-6GF00-0PK0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6DL1131-6GF00-0PK0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

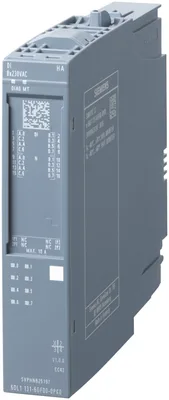

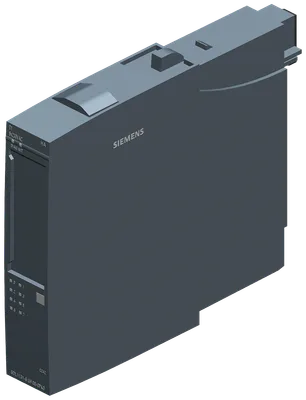

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6DL1131-6GF00-0PK0

SIMATIC ET 200SP HA, digital input module, DI 8X230VAC HA suitable for terminal block K0, color code CC42, module diagnostics

SiemensMFR # 6DL1131-6GF00-0PK0SKU # YLS5BYMBRXKWMYA

Product type designationDI 8x230VAC HA

Firmware versionV1.0

FW update possibleYes

Usable terminal blocktype K0 (see system manual for details)

I&M dataYes; I&M0 to I&M3

PROFINET from GSD version/GSD revisionGSDML V2.3

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP HA, digital input module, DI 8X230VAC HA suitable for terminal block K0, color code CC42, module diagnostics

Siemens 6DL1131-6GF00-0PK0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDI 8x230VAC HA

Firmware versionV1.0

FW update possibleYes

Usable terminal blocktype K0 (see system manual for details)

Color code for module-specific color-coded labelCC42

Product function

I&M dataYes; I&M0 to I&M3

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV16

STEP 7 configurable/integrated from versionV5.6

PCS 7 configurable/integrated from versionV9.0

PCS neo can be configured/integrated from versionV3.0

PROFINET from GSD version/GSD revisionGSDML V2.3

Operating mode

DIYes

Redundancy

Redundancy capabilityNo

Supply voltage

Rated value (AC)230 V

permissible range, lower limit (AC)85 V

permissible range, upper limit (AC)264 V

Power

Power consumption from the backplane bus105 mW

Power loss

Power loss, typ.1.8 W; Active power, load voltage 230 V, all inputs connected with 230 V, 50 Hz

Address space per module

Address space per module, max.1 byte; + 1 byte for QI information

Hardware configuration

Mechanical coding elementYes

Digital inputs

Number of digital inputs8; Isolated

Input characteristic curve in accordance with IEC 61131, type 3Yes

Time stampYes; Resolution 10 ms

Time stamp (with precision of 1 ms)No

Input voltage

Rated value (AC)230 V

for signal "0"0V AC to 40V AC

for signal "1"74 V AC to 264 V AC

Input current

for signal "1", typ.10.8 mA

for standard inputs

— at "0" to "1", min.1.5 ms

— at "0" to "1", max.4 ms

— at "1" to "0", min.10 ms

— at "1" to "0", max.10 ms

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Connectable encoders

2-wire sensorYes

Alarms

Diagnostic alarmYes

Diagnoses

Diagnostic information readableYes

Diagnostics indication LED

MAINT LEDYes; Yellow LED

Channel status displayYes; green LED

for module diagnosticsYes; green/red DIAG LED

Potential separation channels

between the channelsYes

between the channels, in groups of2

between the channels and backplane busYes

Permissible potential difference

between different circuitsBetween channels: 230 V AC (same system phase) / 120 V AC (different system phase); between groups: 230 V AC (different system phase)

between channels and backplane bus/supply voltage230 V AC

tested with

between channels and backplane bus/supply voltage4 200 V DC/1 min, type test

Between channels1 500 V AC/1 min, type test

Ambient temperature during operation

horizontal installation, min.-40 °C

horizontal installation, max.70 °C

vertical installation, min.-40 °C

vertical installation, max.60 °C

Dimensions

Width22.5 mm

Height115 mm

Depth138 mm

Weights

Weight, approx.148 g
