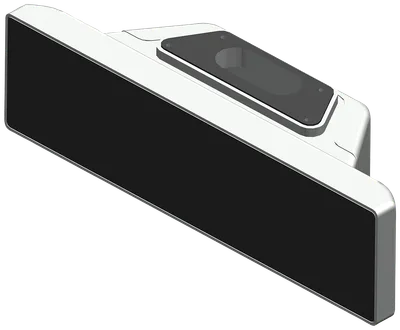

Siemens 6AV7674-1LA83-0AA0

Extension Unit 24" Portrait PROFIsafe for mounting on all fully IP65-enclosed 16:9 HMI/IPC devices. For the flexible installation of operator controls, 6 mounting positions, 6 operator controls equippable; connection via PROFIsafe, (without equipment)

SiemensMFR # 6AV7674-1LA83-0AA0SKU # YLSPD3R94XVRKSU

Product type designationExtension Unit 24" Portrait PROFIsafe

Mounting typeScrewed joint

Rack mountingNo

Front mountingNo

Type of supply voltageDC

Rated value (DC)24 V

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV7674-1LA83-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationExtension Unit 24" Portrait PROFIsafe

Installation type/mounting

MountingFor mounting on a 16:9 HMI / IPC PRO device (lower part)

Mounting typeScrewed joint

Rack mountingNo

Front mountingNo

Number of slots for command devices and signaling units6

RFID reader can be installedYes; SIMATIC RF200 Access Control Reader RF1060R

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)150 mA; without load

Power

Active power input, typ.3 W; Additionally 0.1 W per control element with LED

Interfaces

Number of industrial Ethernet interfaces2; For the construction of lines and rings without external switch

Number of PROFINET interfaces2; Incl. switch

Protocols

PROFIsafeYes; 1x SIL 2 (two-channel) or 2x SIL 3 (single-channel) emergency stop sensor

Media redundancy

— MRPYes

Test commissioning functions

Key and signal lamp testYes; automatically when switching on

Degree and class of protection

Enclosure Type 4x at the frontYes; All-round

Standards, approvals, certificates

CE markYes

UL approvalYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalYes

Suitable for safety functionsYes; e.g. installation of emergency stop

Ambient temperature during operation

min.0 °C

max.50 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Relative humidity

Operation, max.90 %; no condensation

Mechanics/material

aluminumYes

AluminumYes; Knockout covered with black film

Dimensions

Width361 mm

Height99 mm

Depth100.65 mm

Weights

Weight (without packaging)2.2 kg

Scope of supply

Delivery quantity in pieces1

Components includedPower supply connector

Accessories 19

Genuine accessories that can be used with the Siemens 6AV7674-1LA83-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV7674-1LB20-0AA0	Aksesuar · label
6ES7193-4JB00-0AA0	Aksesuar · Connection plug · HMI connecting components
6GT2831-6AA60	Aksesuar · Identification systems · RFID
6GT2831-6CA60	Aksesuar · Identification systems · RFID
6GT2831-6BA60	Aksesuar · Identification systems · RFID
6AV7674-0LX01-0AA0	Aksesuar · Accessories
6AV7674-0LX00-0AA0	Aksesuar · Accessories · distribution boards, HUBs
6AV7674-1MG00-0AA0	Aksesuar · Accessories
6AV6881-0HE20-0AA0	Aksesuar · Connection plug · HMI connecting components
6AV7674-1MF00-0AA0	Aksesuar · Accessories
6AV7674-1ME50-0AA0	Aksesuar · Accessories
6AV7674-1ME00-0AA0	Aksesuar · Accessories
6AV7674-1MD00-0AA0	Aksesuar · Accessories
6AV7674-1MC00-0AA0	Aksesuar · Accessories
6AV7674-1MB00-0AA0	Aksesuar · Accessories
6AV7674-1MA00-0AA0	Aksesuar · Accessories
6AV7674-1LB30-0AA0	Aksesuar · label
6AV7674-1MG50-0AA0	Aksesuar · Accessories
6GT2831-6BA60-0AX0	Aksesuar · Identification systems · RFID
