How can I get a price quote for Siemens 6AV7674-1LA53-0AA0?

You can request a fast quote for Siemens 6AV7674-1LA53-0AA0 from Yılsa Engineering. Reference part number YLSAHBM4U1YVN8U. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV7674-1LA53-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV7674-1LA53-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV7674-1LA53-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

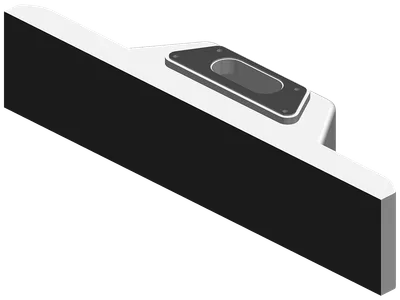

Siemens 6AV7674-1LA53-0AA0

Extension Unit 19" PROFISAFE compatible with all IP65 fully enclosed 16:9 HMI/IPC devices. flexible configuration of control elements; 10 mounting positions; 10 control elements can be installed; PROFISAFE connection (control elements ordered separately)

SiemensMFR # 6AV7674-1LA53-0AA0SKU # YLSAHBM4U1YVN8U

Product type designationExtension Unit 19" PROFIsafe

With parameterizable keysYes

Mounting typeScrewed joint

Rack mountingNo

Front mountingNo

Type of supply voltageDC

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV7674-1LA53-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationExtension Unit 19" PROFIsafe

Control elements

With parameterizable keysYes

Installation type/mounting

MountingFor mounting on a 16:9 HMI / IPC PRO device (lower part)

Mounting typeScrewed joint

Rack mountingNo

Front mountingNo

Number of slots for command devices and signaling units10

RFID reader can be installedYes; SIMATIC RF200 Access Control Reader RF1060R

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)150 mA; without load

Power

Active power input, typ.3 W; Additionally 0.1 W per control element with LED

Interfaces

Number of industrial Ethernet interfaces2; For the construction of lines and rings without external switch

Number of PROFINET interfaces2; Incl. switch

Protocols

PROFIsafeYes; 1x SIL 2 (two-channel) or 2x SIL 3 (single-channel) emergency stop sensor

Test commissioning functions

Key and signal lamp testYes; automatically when switching on

Degree and class of protection

IP (all-round)IP65

Enclosure Type 4x at the frontYes; All-round

Standards, approvals, certificates

CE markYes

UL approvalYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalYes

Suitable for safety functionsYes; e.g. installation of emergency stop

Ambient temperature during operation

min.0 °C

max.50 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Relative humidity

Operation, max.90 %; no condensation

Mechanics/material

AluminumYes

AluminumYes; Knockout covered with black film

Dimensions

Width462 mm

Height99 mm

Depth100.65 mm

Weights

Weight (without packaging)2.7 kg

Scope of supply

Delivery quantity in pieces1

Components includedPower supply connector

Accessories 18

Genuine accessories that can be used with the Siemens 6AV7674-1LA53-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV7674-1LB20-0AA0	Aksesuar · label
6GT2831-6AA60	Aksesuar · Identification systems · RFID
6GT2831-6CA60	Aksesuar · Identification systems · RFID
6GT2831-6BA60	Aksesuar · Identification systems · RFID
6AV7674-0LX01-0AA0	Aksesuar · Accessories
6AV7674-0LX00-0AA0	Aksesuar · Accessories · distribution boards, HUBs
6AV7674-1MG00-0AA0	Aksesuar · Accessories
6AV7674-1MF00-0AA0	Aksesuar · Accessories
6AV7674-1MG50-0AA0	Aksesuar · Accessories
6AV7674-1ME50-0AA0	Aksesuar · Accessories
6AV7674-1ME00-0AA0	Aksesuar · Accessories
6AV7674-1MD00-0AA0	Aksesuar · Accessories
6AV7674-1MC00-0AA0	Aksesuar · Accessories
6AV7674-1MB00-0AA0	Aksesuar · Accessories
6AV7674-1MA00-0AA0	Aksesuar · Accessories
6AV7674-1LB30-0AA0	Aksesuar · label
6ES7193-4JB00-0AA0	Aksesuar · Connection plug · HMI connecting components
6GT2831-6BA60-0AX0	Aksesuar · Identification systems · RFID
